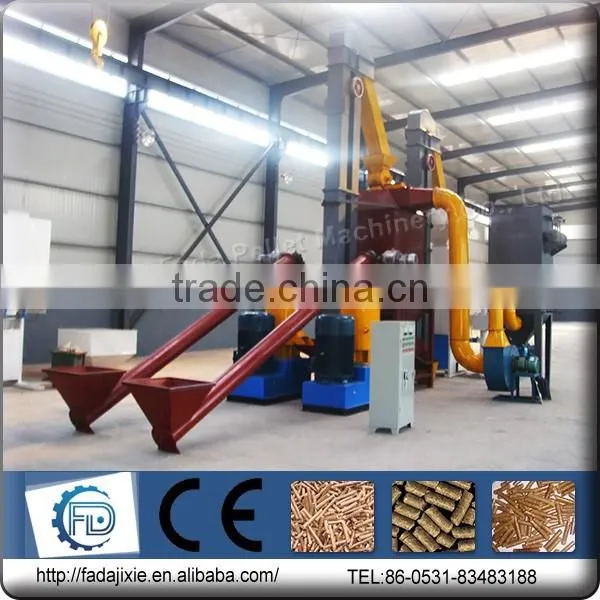

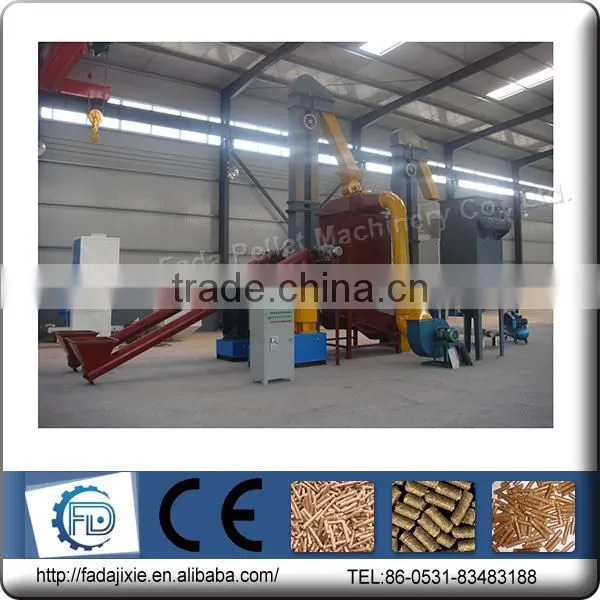

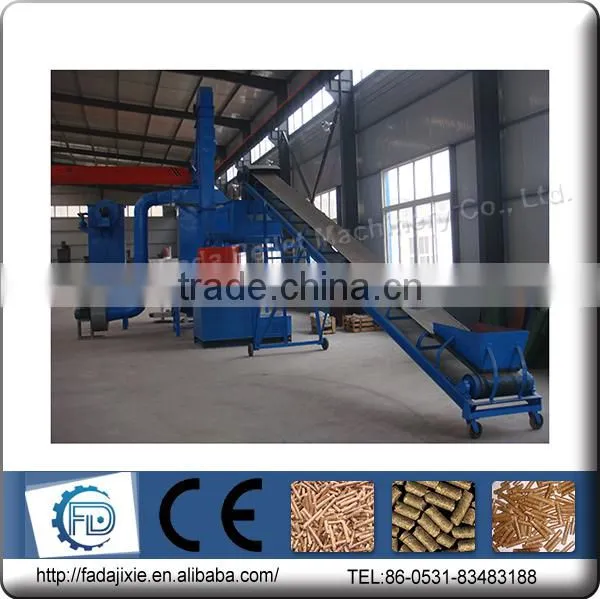

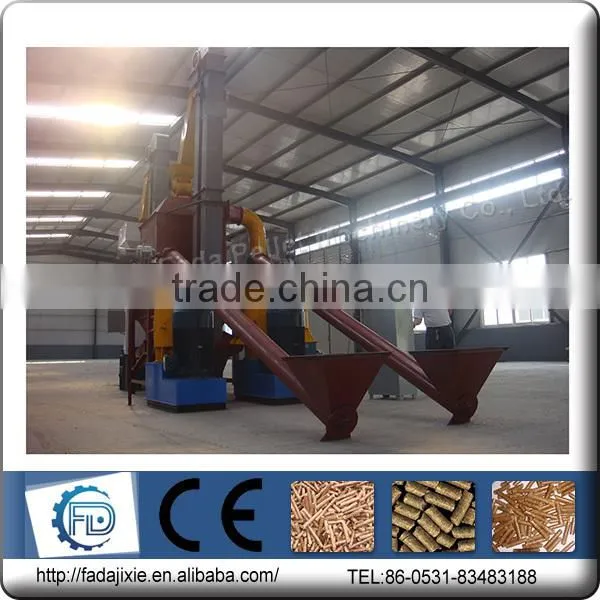

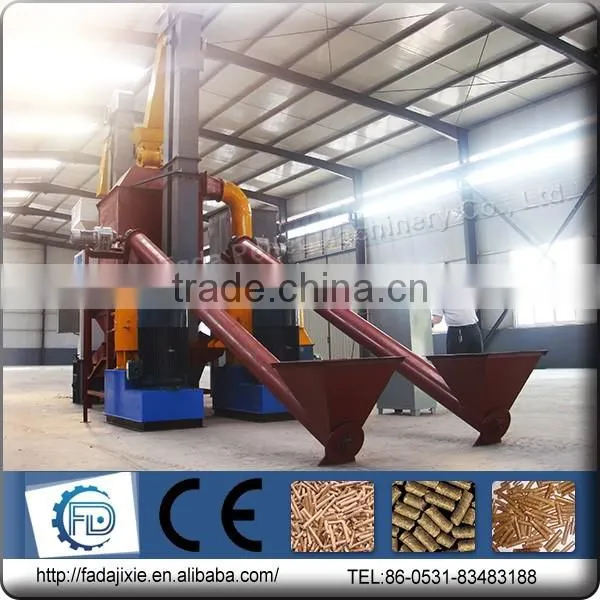

3-4 T/hour large type energy saving complete wood pellet production line
Introcuction

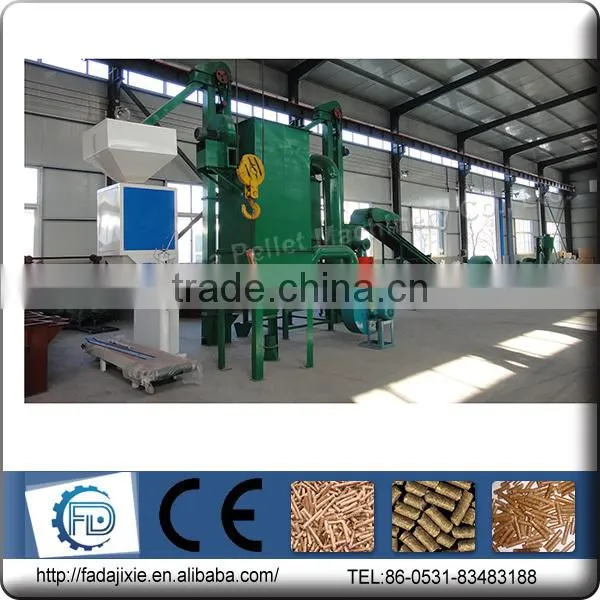

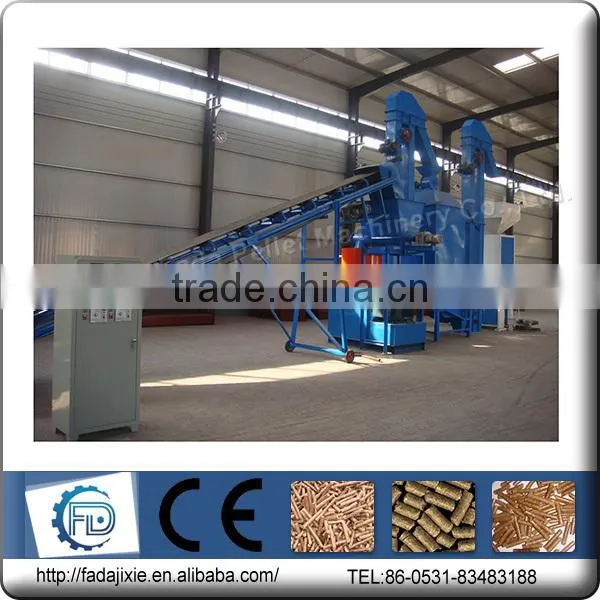

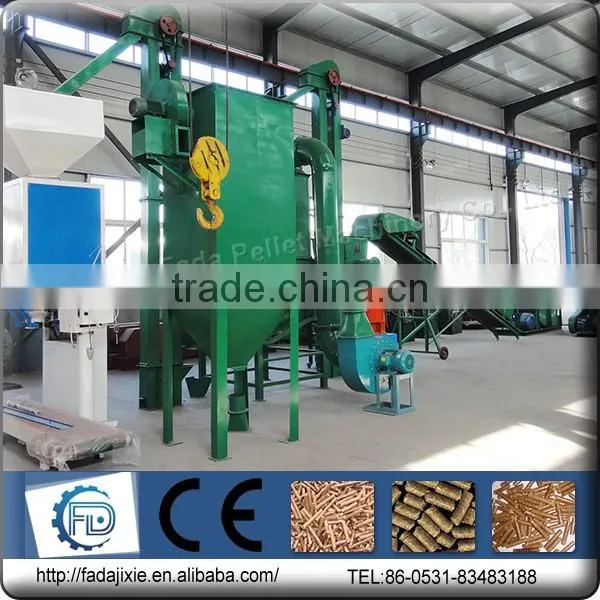

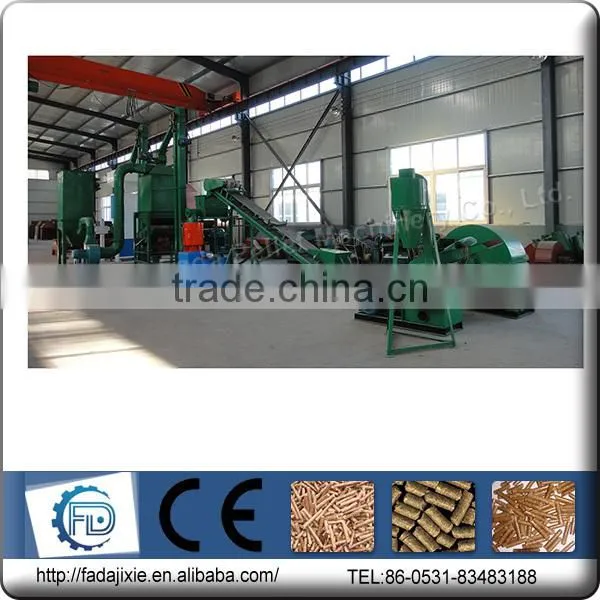

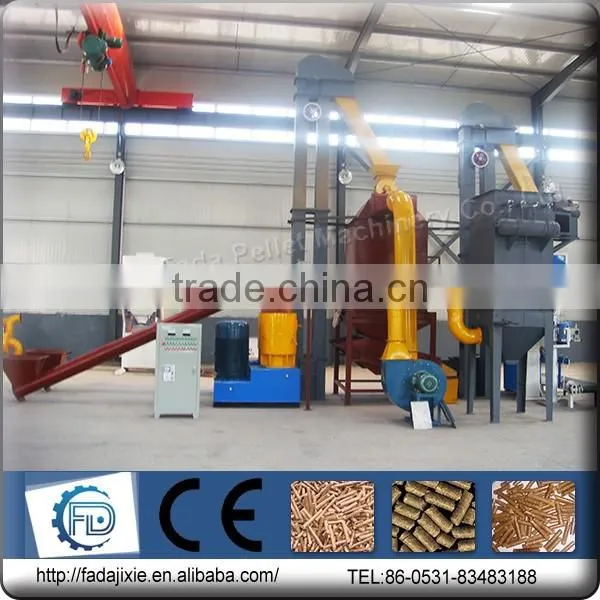

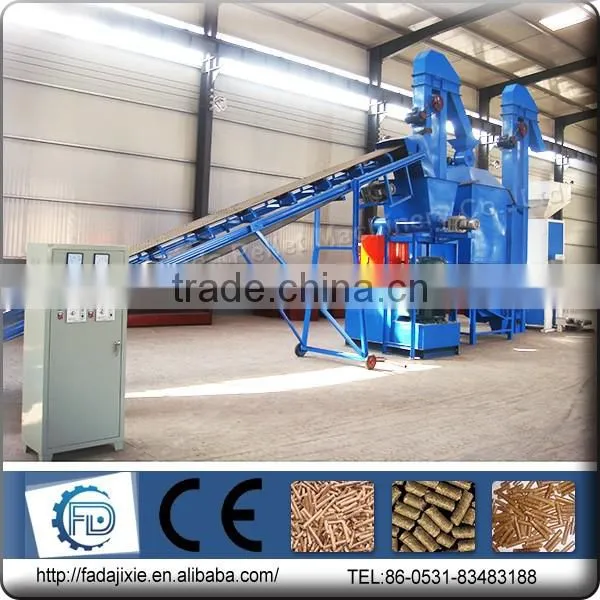

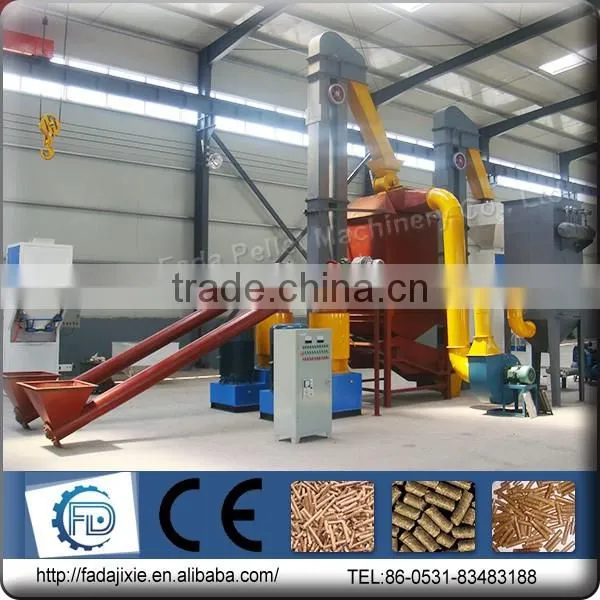

" production line can produce wood pellet from 5,000-20,000 ton annually, composed of the workstage like wood chipping, grinding, drying, pelleting, cooling, sieving, dust collecting, packing ect., with consecutive and reasonable process routing, every standalone machine are of high performance, the performance will be displayed on the electrical cabinet controlled. The assemblies are compact structure, small occupation, low consumption and high efficiency. Each standalone machine will design and manufacture in accordance to the demands of the clients, installation will be carried out and guided by professional technician."
Technical parameters
NAME |
MODEL |
POWER (kw) |
DIMENSION (mm) |
WEIGHT (kg) |
Wood crusher |
1000 |
45 |
2100*1100*1600 |
1350 |
Dryer |
HQ-2 |
14 |
10000*1200*2200 |
5200 |
Conveyor |
HY-2 |
2.2 |
7000*1000*3000 |
550 |
Pellet mill |
SKJ800 |
90 |
2200*1200*2700 |
3900 |
Elevating conveyor |
TSG-2 |
2.2 |
1000*1000*6000 |
500 |
Cooling separator |
LQ-3 |
9 |
2500*2500*4200 |
1800 |
Pulsed dust collector |
MC-2 |
4 |
1500*1500*3600 |
1200 |
Elevating machine |
TSG-2 |
2.2 |
1000*1000*6000 |
500 |
Packing machine |
TDM-50C |
4 |
2000*1800*3900 |
1250 |
Electrical cabinet |
BK-1 |
|
600*500*1500 |
150 |
Remarks |
Floor space :40m*5m*6m total power:172.6kw |
|||
1. Q : How long is your guarantee for wood pellet mill?
A : One year from the equipment from clients receive the products.we provide full-life maintenance service and spare parts .All our products have quality assurance.
2. Q : Will you send engineers to install the equipments and train our staffs?
A : Of course.Firstly, we will make professional and detailed installation video for your reference .if you still request we install it , we will serve you personally.
3. Q : Can the machines make high quality wood pellet , example EN PLUS A1 ,A2?
A : The key on wood pellet quality is mainly raw material of making pellet and equipments. if the raw material is OK for pellet quality , our equipments are absolutely OK . and if your raw material is not Ok , we have the ability to provide solution for you.
4. Q : Can you design plant and production line according to our requirements and needs ?
A : We have rich experience for 12 days on Biomass machinery and production line . we are the first manufacturer in this industry . our products are widely in home and abroad. we have the confidence and ability to design your products and plants .
5.Why choose us?
> Customer satisfaction is our top goal, please let me know your opinion after your purchase.
> Please contact us if you have any concern. We will try my best to give you best battery solutions in a cordial and friendly manner.
> We will be very pleasure to reply you within 24 hours.
> Do not hesitate to contact us at anytime, before or after your purchase, we are committed to your 100% customer satisfaction.
> We care about our valued cutomers, if you have any question, please feel free to contact us by Trademanger
