The product structure, advanced materials, cutting of high quality raw light adaptability, convenient operation and
maintenance. The main raw materials are cutting wood, wood cutting, paths using (such as the branches, branches,
and the slab, attrib wattle, logs, waste veneer, etc), and it can also be used to cutting non-wood materials (such as
sugar cane, reed, bamboo, etc.).

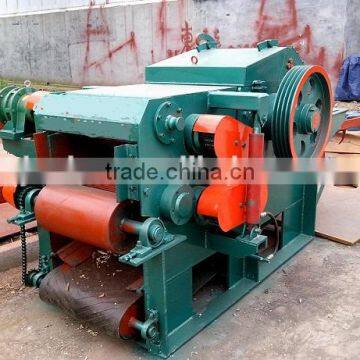

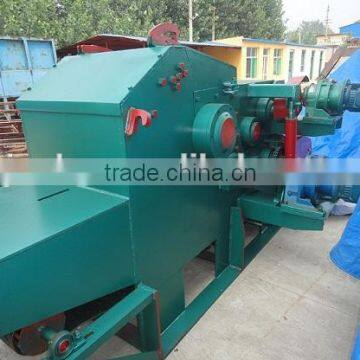

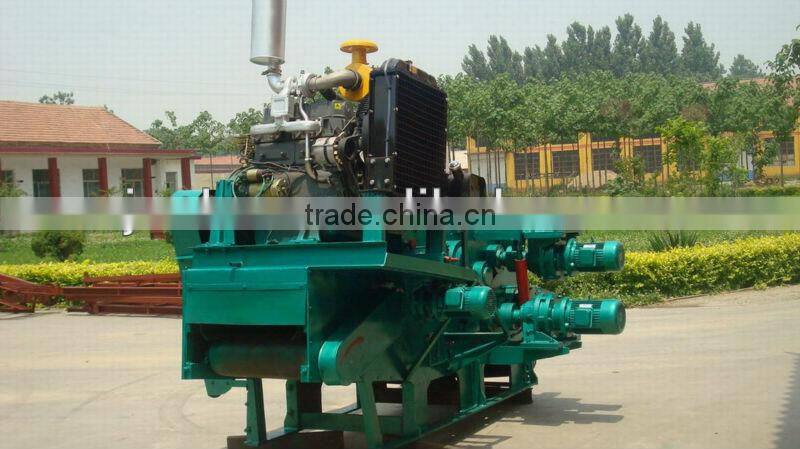

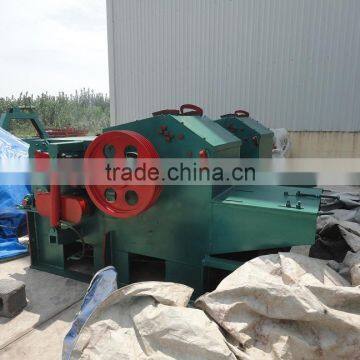

The machine is made up of airframe, knife roller, and feed roller, conveyor belt, hydraulic system components. The
machine adopts high strength steel welded, the whole machine is the supporting basis. Knife roller installed on two or
three, four fly, fly with specialized in manufacturing, through the bolt, put pressure on the knife roller fixed on the fly.
According to the different thickness of raw materials by cutting, feed roller assembly by hydraulic system can
fluctuate within a certain scope. Cutting down the qualified materials through the screen mesh, from bottom of
materials, cutting machine will be.
Hydraulic system: for the pump to oil cylinders, can start cover, facilitate blade replacement, In the maintenance
can raise the feed roller assembly, easy adjustment, and the gap of the fly and comb of the board.
Technical specification:
Model |
JLGS-215 |
JLGS-216 |
JLGS-218 |
JLGS-2113 |
Feeding size(mm) |
160*400 |
230*500 |
300*680 |
450*700 |
Quantity fly_cutter (piece) |
2 |
2 |
2 |
2 |
Knife roll speed(turn) |
592 |
590 |
650 |
500 |
Maximum diameter of the material(mm) |
160 |
230 |
300 |
450 |
Chipper size(mm) |
30 |
30 |
30 |
38 |
Capacity( T) |
3-4 |
7-8 |
12-15 |
15-30 |
Main motor power(kw) |
45 |
55 |
110 |
200-250 |
Feeding roll motor power(kw) |
2.2-3 |
3-4 |
4-5 |
7.5*2 |
oil pump mot0r power(kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
Weight(kg) |
2990 |
4070 |
7000 |
11840 |
Overall dimensions(mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
3670*2517*2050 |
Conveyor motor power(kw) |
3 |
3 |
3 |
3 |
