Specifications
Rice husk pellet making machines1.used for press wood pellet
2.output : 1-1.5 t/h
3.used SKF bearing
4.high density
Wheat Straw Pelletizing Machine making 4--12mm pellets (0086-18888342566)
Main material of wood pellet machine:

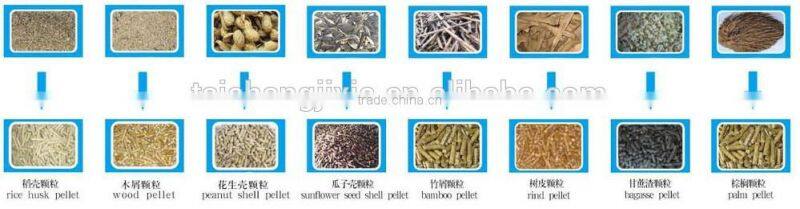

wood,straw,cotton stalk, rice husk, peanut shell, bamboo ,empty fruit branch,
waster paper, and Palm fiber etc.
Material Size:1-2mm(All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet.If too high, or too low, you need to dry or moisture them first.
Main Features of wood pellets:
1.Pellets is green and low carbon energy fuel is renewable, environmental protection
2.Pellet is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source.
3.Density 0.9-1.6g/cm3,easy store and transportation ,3500-5500 Kilocalorie.
TC wood pellet machine simple introduction:
TCZL series efficient Centrifugal TCZL560 wood pellet mill for is our initiative patented product in China throughmeticulous research and development.
The TCZL560 wood pellet mill absorbed the essence of pellet mill in oversea market, its heart part “double-layer die” has unique structural assembly and ‘'rollers'' are made by high-abrasion-proof alloy steel and stainless steel, which improves the using life of spare parts greatly.
It has TCZL560 wood pellet mill the grease is injected and filtrated automatically, which can ensure the long time working without stop. It also has dust and cooling system that can reduce the dust during it working and improve the working environment.
Special design, rational structure, low power consumption and high efficiency, sturdy and durable, it achieves combining the advantage of both flat die pellet machine and horizontal ring die pellet mill and becomes the real professional pellet machine that is used to the materials with low adhesiveness and low shaping, such as the rice husk, sunflower husk, peanut shell and other fruit shell, branch, trunk, bark and other wood waste, a variety of crop straws, household waste, rubber, cement, ash and other chemical materials.
Technical data of ring die wood pellet machine:
Model |
Power (kw) |
Diamete of pellet (mm) |
Output (t/h) |
TCZL 560 |
90 |
4-12 |
1-1.5 |
TCZL 650 |
160 |
4-12 |
2-2.5 |
TCZL 850 |
220 |
4-12 |
2-3 |
Main Structure of Machines to produce wood pellet prices :
TCZL560 series Machines to produce wood pellet prices are consisted of :
(1).Huali frequency conversion main motor
(2)Gear box
(3)"Boneng"brand reducer
(4)Bearing Chamber “SKF” bearing
(5)Roller assemble frame
(6)Die matrix
(7)Machine base.
Note: All the mounting surfaces of the Machines to produce wood pellet prices parts are made by machining. It has highassembly precision, good machine performance.
Main Features of Taichang Series wood pellet machine:
1. Over 10 years experience and more than 1000 turn key pellet lines.
2. Widely used for large scope of raw material, such as wood chips,sawdust, straw,grass,rice husk,pasture,palm leaf etc.
3. With magnet and over load protection system, which can protect the machine well during production;
4. The feeder is variable speed controlled to meet different output requirements and with the special structure, it makes materials conveyed evenly.
5. The imported bearing and oil seal in the main drive to ensure highly-efficiency,stability and durability.
6. With international advanced equipment and technology, Stainless ring die has long service life and can make slippy pellet with high quality.
Sandy Bai (Sales Manager)
Jinan Taichang Transmission Machinery Co.,Ltd
ADD: Xusheng Industrial Park, Zhangqiu, Jinan, Shandong Province, China
Mobile: +86-18888342566
MSN: jntaichang001 at
Skype: sandytc001
Email:sales006 AT
Web:
IN ORDER TO provide you the suitable product,please tell me the answers of the following question:
1.what's raw materials?
2.the moisture and size of raw materials?
3.how much production capacity you need? ( h OR d)
4.The shape and size of the final product you prefer?
Taichang machine Co., Ltd, is one of the oldest manufacturer of wood pellet machines in china. with more than 15 years history, more than 200 workers factory. we have got ISO, SGS certificate, all machines got CE certificate. till now, so many sales agents overseas, such as in Poland, Egypt, Bulgaria, Holland, Spain, Russia, India, Argentina, Iran.... and have branch company in Thialnd, branch office in Malaysia....
