low consumption multifunctional hammer mill for hot sale /wood sawdust hammer mill wood hammer mill with cyclone
Specifications
hammer mill with cyclone
1.high capacity
2.low cost
3.CE ISO certification
Brief Introduction of TCFS multifunctional hammer mill:
TCFS series Multifunctional Hammer Mill is used for crushing foam board, rubber and all kinds of straw, weeds, the best equipment, the series structure is reasonable, durable, safe and reliable operation conveniently. Slight vibration, high efficiency, mainly used for feed mills, farms, organic fertilizer factory. Deeply welcomed by the general customers.
TCFS series multifunctional hammer mill features:
1.Multiple functions, TCFS hammer mill can handle most raw materials;
2.Special design and machined rotor assembly,ensure more smoothly,reliable and safe running.

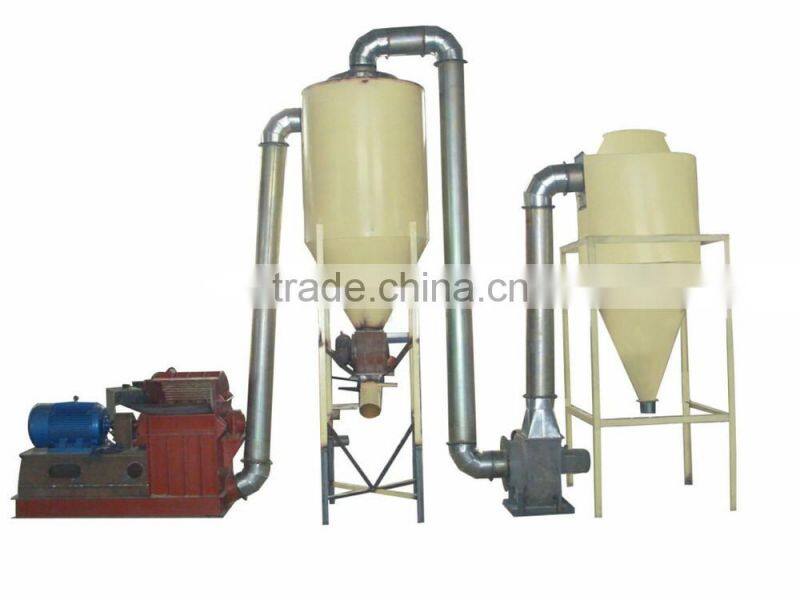

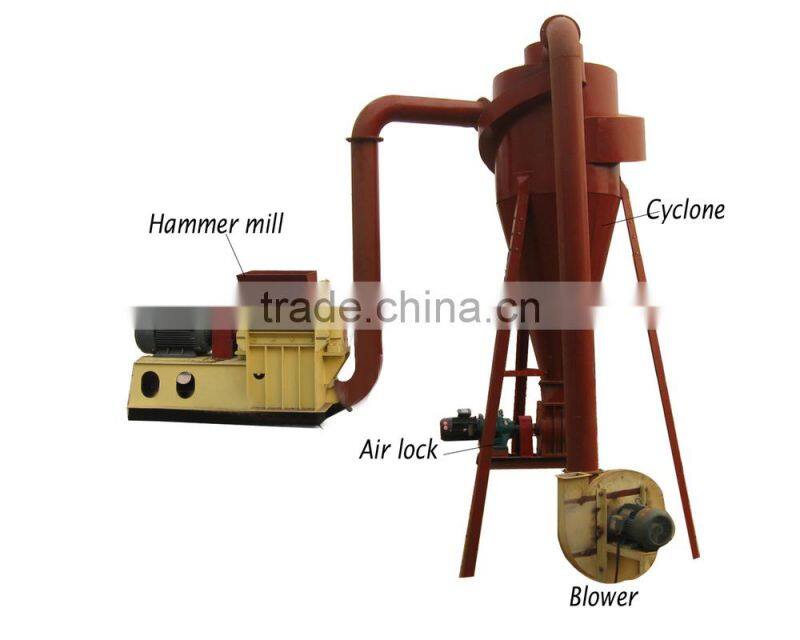

3.The hammer mill must works with cyclone, the cyclone can filter out the dust from finished products.
4.Reasonable and safe sieve pressing mechanism,convenient,quick and safe replacing of sieve.
Working Principle of multifunctional hammer mill:

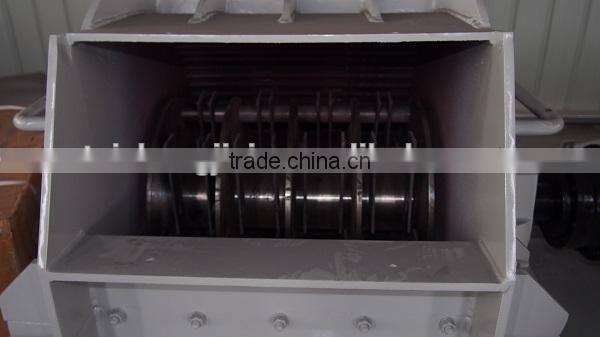

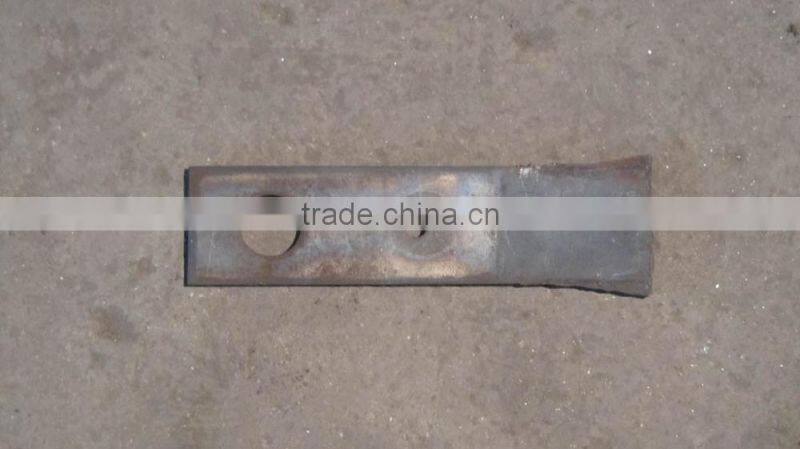

Motor of Hammer crusher drives rotor to rotate in high speed in the crushing cavity. The materials are feeded into the machine through the upper feeding opening and are striked, impacted, sheared and grinded by high speed moving. Under the bottom of rotor, it is equipped with sieve plate. Among the crushed materials fractions that is less than mesh size are discharged through sieve plate, materials fractions that is bigger than mesh size are kept on the sieve plate to be striked and grinded by hammer and they are discharged out of machine finally. The main woriking parts of hammer crusher is the rotor with hammer. Rotor consists of main shaft, disc, pin roll and hammer.
Detailed specifications:
| model | Output(t/h) | Power(kw) | Weight(t) | Size(mm) |
| TCFS40 | 0.2-0.5 | 7.5 | 0.27 | 1310*800*1070 |
| TCFS50 | 0.6-0.8 | 15 | 0.45 | 1380*800*1010 |
| TCFS65*27 | 0.8-1.5 | 22 | 1.1 | 1500*1000*1100 |
| TCFS65*55 | 1-3 | 37-45 | 1.5 | 1700*1000*1100 |
| TCFS65*75 | 2-2.5 | 55-75 | 1.9 | 2100*1000*1100 |
| TCFS65*100 | 3-5 | 90-110 | 2.3 | 2400*1000*1100 |
| TCFS130*55 | 4-6 | 130-160 | 5.3 | 2800*1620*2100 |
| TCFS130*100 | 5-8 | 160-120 | 6.8 | 3020*1620*2170 |
Finished production:
1.We take customers as our gods. We devote to all-round service of all the products from shipment to maintenance.
2. After selling, we provide the warranty of one year.
3. If you have any problems, we will help to solve on line in first time.
4.Our products have CE and ISO certificate, they are of good quality with lower price.
Jinan Taichang Transmission Machinery Co.,Ltd located in Shandong province,China. Our factory is a professional manufacturer of biomass pellet machine for agriculture, forest, pasturage,fishery for many years.
Our company has passed ISO9001-2008 quality certification and CE certification.
We also want your more details to bring you high quality production and maximize profit:
1.What's your raw materials?
2.What's the moisture content of materials?
3What capacity do you want one hour, 1T,3T,5T?
Please feel free to contact us no matter technical or price problem,we wll offer you the best quality machine for you
