Home > Manufacturing & Processing Machinery > Agricultural Machinery > Grain Silo > Support Steel for Bolted-type 150T Silo
US$ 13,500 - 14,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
114 m³
Material:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 100T Cement Silo as Brick Making MachineUS$ 5,000 - 7,000MOQ: 1 Set -
Detachable Cement Silo for Concrete Batching Plant PriceUS$ 5,000 - 60,000MOQ: 1 Set
-
300 Ton Cement Silo for SaleUS$ 21,000 - 23,000MOQ: 1 Unit
-
Transportation Advantage for Cement Silos, Concrete Mixing MachineryUS$ 5,000 - 60,000MOQ: 1 Set
-
High Quality Bulk Steel Cement Tank Concrete SiloUS$ 5,000 - 60,000MOQ: 1 Set
Condition
New
Capacity
114 m³
Material
Steel
Place of Origin
Fujian, China
Brand Name
Luwei
Model Number
PG150T
Dimension(L*W*H)
Size
Weight
15T
Good sealing 150T cement silo with 4 outlet
Luwei cement silo is a supplementary equipment for both construction and agriculture.It is commonly used to store bulk cement,fly ash,mortar and powder for concrete batching/mixing plant and bricking making machine, at the same time, it is suitable for agricultural use like grain storage.
Our cement silo features easy delivery, easy installation and easy dismantlement, we have achieved national patent in bolted silo production(Patent NO:201020649684.5), we are able to offer reliable silos from 50 ton to 2000 ton.
Here are some advantages of our products:
1.Reliable design
All of our product designs are provided by prestigious Tongji University, the strength of silo,resistance coefficient of the typhoon and the bending resistance data are perfectly calculated by experts.
2.State of the art manufacturing technology
Every parts of the bolted silo are manufactured by advanced cutting and drilling technology, they are implemented with unique surface cleaning procedure then painted with fine coating.
3.Short production period
Our cement silo is in modular production, every components are produced by stream-lined workshop, in this way, we can significantly reduce the production cycle, so as to ensure fast delivery.
4.Excellent sealing condition
Between every junctions, we insert special silicone rubber and compress them from 5mm into 1mm, the strong elasticity effect will automatically fill in every possible leaks, we also use glass cement to seal the surface of the junction, so as to re-ensure the sealing condition and prevent any infiltration of moisture.
5.Easy delivery and installation
Our cement silos are produced in parts, they can be easily packed into containers regardless of the size, since all the manufacturing process are finished in factory, all you need to do is to assemble the parts of silos after delivery, that will save you quite amount of time.
Technical index (for reference)
Serial number | Model and size | Diameter (mm) | Number of layers |
Leg distance (mm) | Theoretical capacity (M3) |
1 | PG50T | 3100 | 3 | 2020 | 40.67 |
2 | PG60T | 3100 | 4 | 2020 | 52.13 |
3 | PG100T | 3200 | 7 | 2020 | 78.7 |
4 | PG150T | 3300/3800 | 6/8 | 2180/2570 | 111.74/114.96 |
5 | PG200T | 4500 | 6 | 3010 | 164.27 |
6 | PG300T | 5000 | 7 | 3290 | 234.85 |
7 | PG400T | 5700 | 8 | 2640 | 348.14 |
8 | PG500T | 6500 | 8 | 3015 | 458.36 |
9 | PG800T | 8000 | 8 | 3660 | 700 |
Note: The above sizes are just for reference. We are able to design and produce silos according to clients’ requirements.
Here are our delivery details:

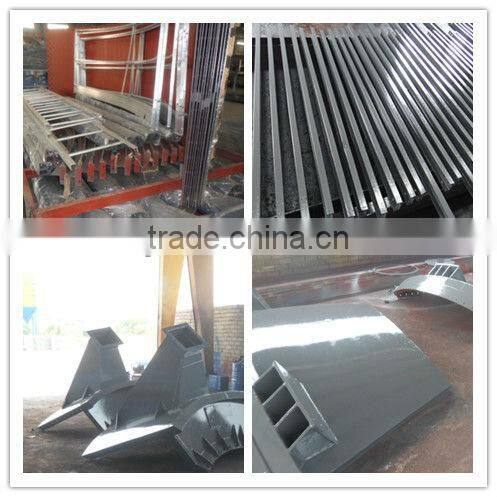

Loading cargo with each part in factory
Part Case of Luwei Steel Cement Silo
