2017 High Quality Light Hanging Aluminum Truss

 Product Description

RK is specialized in manufacturing performance stage equipment, aluminum truss, stage truss, lighting truss, spigot truss, stage rooftruss, aluminum stage, portable stage, folding stage, flight case, dancing floor. Cable ramp, stage lightting

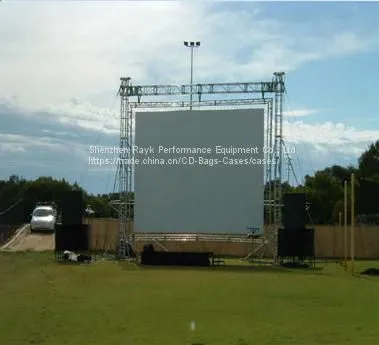

Exhibition truss for show and product advertisement

Packaging & Delivery

Packaging Detail: Carton, flight cases
Delivery Detail: 5-7days after the confirmation of order

Specifications
Aluminum lighting stage truss stand:
1. Made by Aluminum
2. Widely used for exhibition
3. Quickly Assembly
4. Good looking

RK TRUSS

Type: Spigot truss and bolt truss

1: Spigot truss:

Spigot truss system is defined by the connection of the trussing segments by spigots. There is always a female set of spigot connectors on one side of the truss and a male set on the other so the segments can be put together easily. The connection is secured by special spigot truss pin

Custom lenghts and shapes in metric and imperial sizes are available on request

2: Bolt truss:

Bolted truss represents a traditional type of connection. The trussing segments are connected by bloting aluminum plates together

Custom lenghts and shapes in metric and imperial sizes are available on request

Material: Hard pressed extruded aluminium 6061-T6 or 6082-T6

Shape: Square/triangle/ladder/circle

Size for option:
SIZE MAIN TUBE VICE TUBE LOADING CAPACITY SPAN
250*250mm 50*3mm 25*2mm 350KG 10M
300*300mm 50*3mm
30*2mm 375KG 14M
350*350mm 50*3mm 50*2mm 450KG 15M
400*400mm 50*3mm 50*2mm 475KG 16M
450*450mm 50*3mm 50*2mm 500KG 17M
500*500mm 50*3mm 50*2mm 550KG 19M
500*600mm 50*3mm 50*2mm 600KG 20M
760*520mm 50*4mm 50*2mm 1000KG 22M
760*600mm 50*4mm 50*2mm 1500KG 26M

RK Stage
Regular size: 1.22m*1.22m or 1.22m*2.44m (other size can be ordered)

Frame Material: Aluminum alloy

Topping Material: Carpet. Plywood. Organic glass. Tempered glass.
