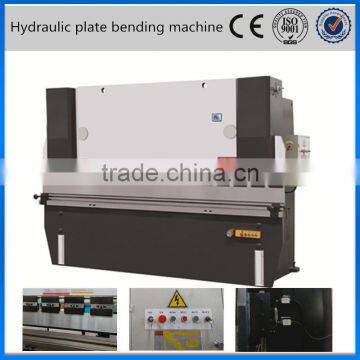

bending machine for dies
bending machine for dies is a machine that can bend a sheet. It includes support bracket, working table and clamping plate, working table is placed on the bracket, it is made of base and pressing plate, the base is connected with the clamping plate by means of a hinge, the base is composed of a shell, a coil and a cover plate, the coil is placed in the recess of the shell, on top of the recess there is a cover plate.
When used, turn on the power, it produces gravity on the plate, so as to realize the clamping between the plate and the base plate. Due to the use of the electromagnetic force clamp, the plate can be made into a variety of work piece according to requirements, and it can be used to process the work piece with side wall. Operation is also very simple.
Model |
Nominal pressure(KN) |
Table length(mm) |
Column spacing(mm) |
Throat depth(mm) |
Slide block stroke(mm) |
Max open height(mm) |
Power of main motor(KW) |
30T/1600 |
300 |
1600 |
1280 |
200 |
80 |
285 |
3 |
35T/2000 |
350 |
2000 |
1480 |
200 |
80 |
285 |
3 |
40T/2200 |
400 |
2200 |
1850 |
230 |
100 |
320 |
4 |
40T/2500 |
400 |
2500 |
1850 |
230 |
100 |
320 |
4 |
50T/2500 |
500 |
2500 |
1850 |
230 |
100 |
320 |
5.5 |
63T/2500 |
630 |
2500 |
1900 |
250 |
100 |
320 |
5.5 |
63T/3200 |
630 |
3200 |
2500 |
250 |
100 |
320 |
5.5 |
80T/2500 |
800 |
2500 |
1900 |
300 |
100 |
320 |
7.5 |
80T/3200 |
800 |
3200 |
2500 |
320 |
100 |
350 |
7.5 |
80T/4000 |
800 |
4000 |
3000 |
320 |
100 |
350 |
7.5 |
100T/2500 |
1000 |
2500 |
1900 |
320 |
120 |
320 |
7.5 |
100T/3200 |
1000 |
3200 |
2500 |
320 |
120 |
370 |
7.5 |
100T/4000 |
1000 |
4000 |
3000 |
320 |
120 |
370 |
7.5 |
125T/3200 |
1250 |
3200 |
2500 |
320 |
120 |
370 |
7.5 |
125T/4000 |
1250 |
4000 |
3000 |
320 |
120 |
370 |
7.5 |
160T/3200 |
1600 |
3200 |
2500 |
320 |
200 |
460 |
11 |
160T/4000 |
1600 |
4000 |
3000 |
320 |
200 |
460 |
11 |
160T/5000 |
1600 |
5000 |
4000 |
320 |
200 |
460 |
11 |
160T/6000 |
1600 |
6000 |
4940 |
320 |
200 |
460 |
11 |
200T/3200 |
2000 |
3200 |
25000 |
320 |
200 |
460 |
11 |
200T/4000 |
2000 |
4000 |
3000 |
320 |
200 |
460 |
11 |
200T/5000 |
2000 |
5000 |
4000 |
320 |
200 |
460 |
11 |
200T/6000 |
2000 |
6000 |
5000 |
320 |
200 |
460 |
11 |
250T/3200 |
2500 |
3200 |
2500 |
400 |
250 |
590 |
18.5 |
250T/4000 |
2500 |
4000 |
3000 |
400 |
250 |
590 |
18.5 |
250T/5000 |
2500 |
5000 |
4000 |
400 |
250 |
590 |
18.5 |
250T/6000 |
2500 |
6000 |
5000 |
400 |
250 |
590 |
18.5 |
300T/3200 |
3000 |
3200 |
2530 |
400 |
250 |
590 |
22 |
320T/4000 |
3000 |
4000 |
3000 |
400 |
250 |
590 |
22 |
300T/5000 |
3000 |
5000 |
4000 |
400 |
250 |
590 |
22 |
300T/6000 |
3000 |
6000 |
5000 |
400 |
250 |
590 |
22 |
400T/4000 |
4000 |
4000 |
3000 |
400 |
250 |
590 |
30 |
400T/5000 |
4000 |
5000 |
4000 |
400 |
250 |
590 |
30 |
400T/6000 |
4000 |
6000 |
5000 |
400 |
250 |
590 |
30 |
500T/5000 |
5000 |
5000 |
4000 |
400 |
250 |
590 |
45 |
500T/6000 |
5000 |
6000 |
5000 |
400 |
320 |
590 |
45 |
600T/4000 |
6000 |
4000 |
3000 |
400 |
320 |
590 |
55 |
600T/6000 |
6000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
800T/6000 |
8000 |
6000 |
5000 |
400 |
320 |
590 |
55 |

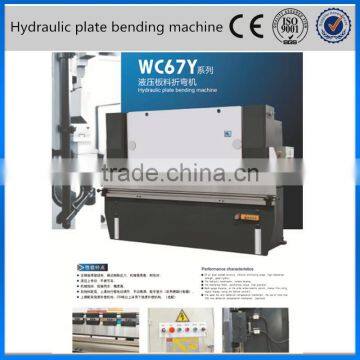

The Performance characteristics of the bending machine for dies
♦All steel welded structure, vibration eliminating stress, high mechanical strength, good rigidity
♦Hydraulic transmission, reliable balance
♦Mechanical block, torsion axis synchronization, high accuracy
♦Rear stop distance, electric adjustment of upper slider stroke, manual adjustment, digital display (German counter)
♦The upper mold is equipped with a deflection compensation mechanism, 250 tons or more will use lower deflection compensation mechanism (optional)

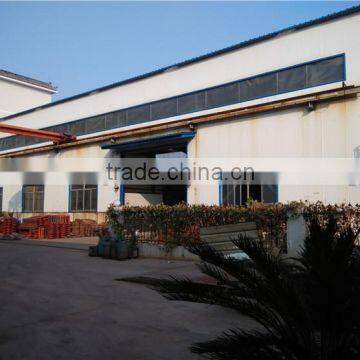

Our company is a professional enterprise which produces shear, bending, stamping equipment. Our main products including: Q11 Series shearing machine, QC12Y series hydraulic swing-type plate shears, WC67Y, WC67K series bending machine, YZ32 series four-pillar hydraulic machine, Z series radial drilling machine. We have complete product specifications and excellent processing.
We have strong technical force, advanced technology and equipment, strict management organization, and our products earn ISO9001: 2008 certification, highly praised by our customers. Our company is dedicated to the component optimization and product upgrades, continue to forge ahead and promote technological progress. Warmly welcome to visit our company!
If you need more information, please feel free to contact me
skype: lydiapei2015_2
Whatsapp/Mobile:0086- 15508600661
