high quality stable sheet metal cutting and bending machine price

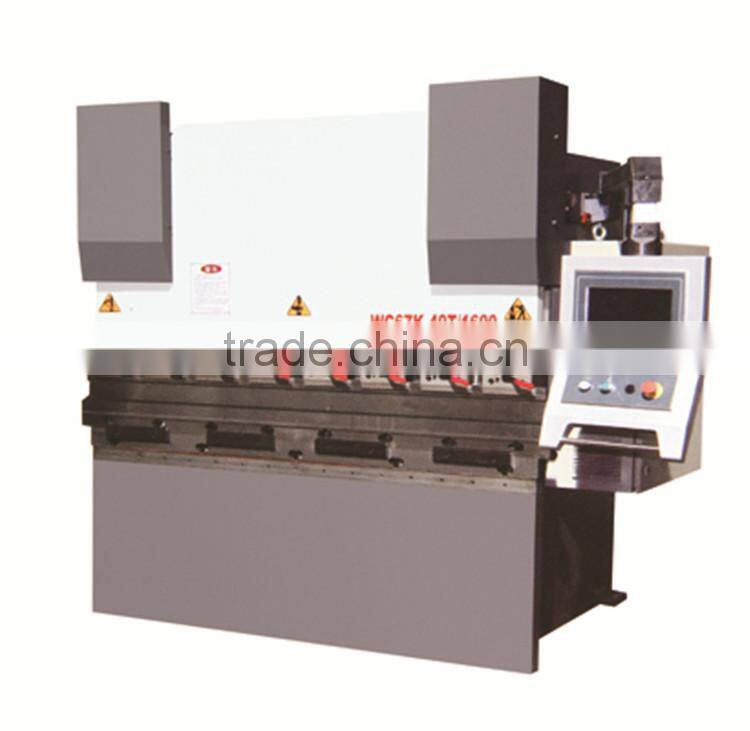

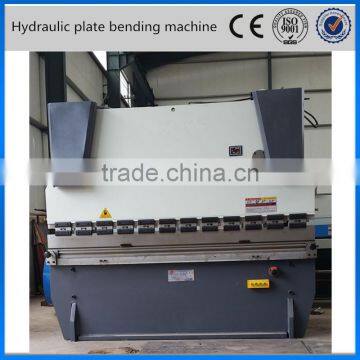

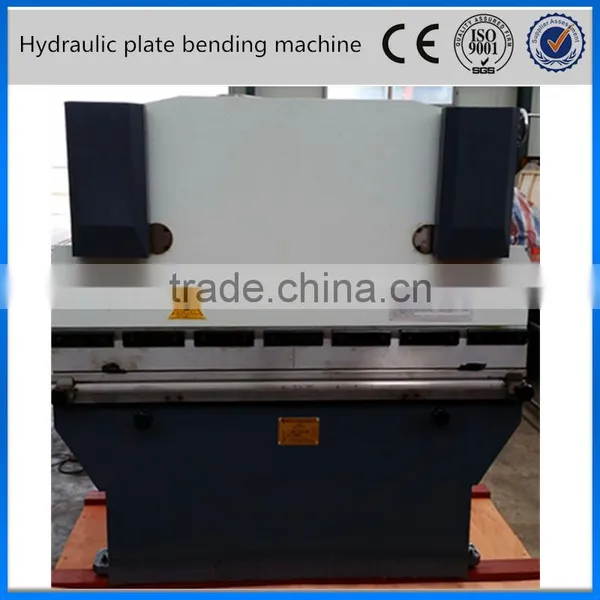

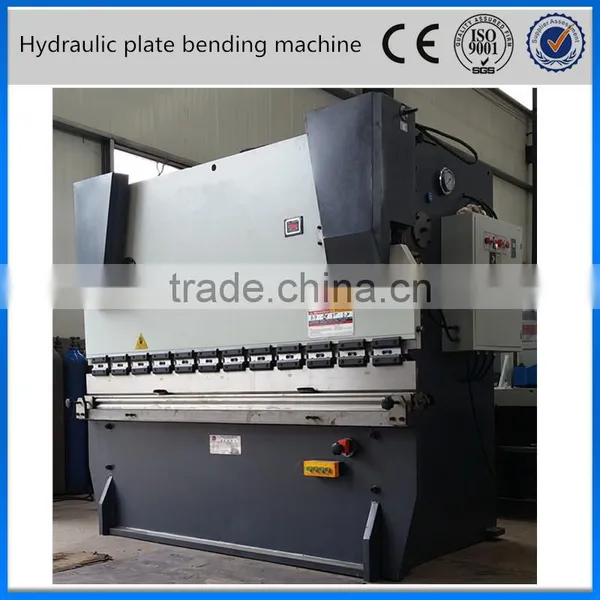

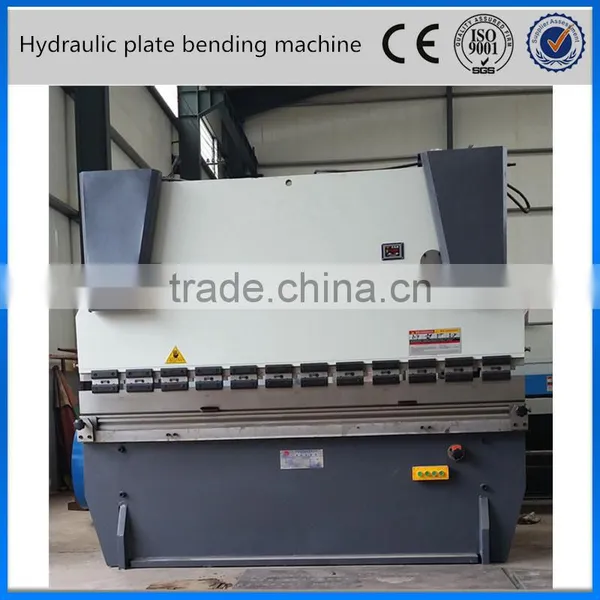

Hydraulic plate bending machine is a machine that can bend a sheet. It includes support bracket,
working table and clamping plate, working table is placed on the bracket, it is made of base and
pressing plate, the base is connected with the clamping plate by means of a hinge, the base is
composed of a shell, a coil and a cover plate, the coil is placed in the recess of the shell,
on top of the recess there is a cover plate.
When used, turn on the power, it produces gravity on the plate, so as to realize the clamping
between the plate and the base plate. Due to the use of the electromagnetic force clamp,
the plate can be made into a variety of work piece according to requirements, and it can be used
to process the work piece with side wall. Operation is also very simple.
Model |
Nominal pressure(KN) |
Table length(mm) |
Column spacing(mm) |
Throat depth(mm) |
Slide block stroke(mm) |
Max open height(mm) |
Power of main motor(KW) |
30T/1600 |
300 |
1600 |
1280 |
200 |
80 |
285 |
3 |
35T/2000 |
350 |
2000 |
1480 |
200 |
80 |
285 |
3 |
40T/2200 |
400 |
2200 |
1850 |
230 |
100 |
320 |
4 |
40T/2500 |
400 |
2500 |
1850 |
230 |
100 |
320 |
4 |
50T/2500 |
500 |
2500 |
1850 |
230 |
100 |
320 |
5.5 |
63T/2500 |
630 |
2500 |
1900 |
250 |
100 |
320 |
5.5 |
63T/3200 |
630 |
3200 |
2500 |
250 |
100 |
320 |
5.5 |
80T/2500 |
800 |
2500 |
1900 |
300 |
100 |
320 |
7.5 |
80T/3200 |
800 |
3200 |
2500 |
320 |
100 |
350 |
7.5 |
80T/4000 |
800 |
4000 |
3000 |
320 |
100 |
350 |
7.5 |
100T/2500 |
1000 |
2500 |
1900 |
320 |
120 |
320 |
7.5 |
100T/3200 |
1000 |
3200 |
2500 |
320 |
120 |
370 |
7.5 |
100T/4000 |
1000 |
4000 |
3000 |
320 |
120 |
370 |
7.5 |
125T/3200 |
1250 |
3200 |
2500 |
320 |
120 |
370 |
7.5 |
125T/4000 |
1250 |
4000 |
3000 |
320 |
120 |
370 |
7.5 |
160T/3200 |
1600 |
3200 |
2500 |
320 |
200 |
460 |
11 |
160T/4000 |
1600 |
4000 |
3000 |
320 |
200 |
460 |
11 |
160T/5000 |
1600 |
5000 |
4000 |
320 |
200 |
460 |
11 |
160T/6000 |
1600 |
6000 |
4940 |
320 |
200 |
460 |
11 |
200T/3200 |
2000 |
3200 |
25000 |
320 |
200 |
460 |
11 |
200T/4000 |
2000 |
4000 |
3000 |
320 |
200 |
460 |
11 |
200T/5000 |
2000 |
5000 |
4000 |
320 |
200 |
460 |
11 |
200T/6000 |
2000 |
6000 |
5000 |
320 |
200 |
460 |
11 |
250T/3200 |
2500 |
3200 |
2500 |
400 |
250 |
590 |
18.5 |
250T/4000 |
2500 |
4000 |
3000 |
400 |
250 |
590 |
18.5 |
250T/5000 |
2500 |
5000 |
4000 |
400 |
250 |
590 |
18.5 |
250T/6000 |
2500 |
6000 |
5000 |
400 |
250 |
590 |
18.5 |
300T/3200 |
3000 |
3200 |
2530 |
400 |
250 |
590 |
22 |
320T/4000 |
3000 |
4000 |
3000 |
400 |
250 |
590 |
22 |
300T/5000 |
3000 |
5000 |
4000 |
400 |
250 |
590 |
22 |
300T/6000 |
3000 |
6000 |
5000 |
400 |
250 |
590 |
22 |
400T/4000 |
4000 |
4000 |
3000 |
400 |
250 |
590 |
30 |
400T/5000 |
4000 |
5000 |
4000 |
400 |
250 |
590 |
30 |
400T/6000 |
4000 |
6000 |
5000 |
400 |
250 |
590 |
30 |
500T/5000 |
5000 |
5000 |
4000 |
400 |
250 |
590 |
45 |
500T/6000 |
5000 |
6000 |
5000 |
400 |
320 |
590 |
45 |
600T/4000 |
6000 |
4000 |
3000 |
400 |
320 |
590 |
55 |
600T/6000 |
6000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
800T/6000 |
8000 |
6000 |
5000 |
400 |
320 |
590 |
55 |
The Performance characteristics of the hydraulic plate bending machine
♦All steel welded structure, vibration eliminating stress, high mechanical strength, good rigidity
♦Hydraulic transmission, reliable balance
♦Mechanical block, torsion axis synchronization, high accuracy
♦Rear stop distance, electric adjustment of upper slider stroke, manual adjustment, digital display (German counter)
♦The upper mold is equipped with a deflection compensation mechanism, 250 tons or more will
use lower deflection compensation mechanism (optional)

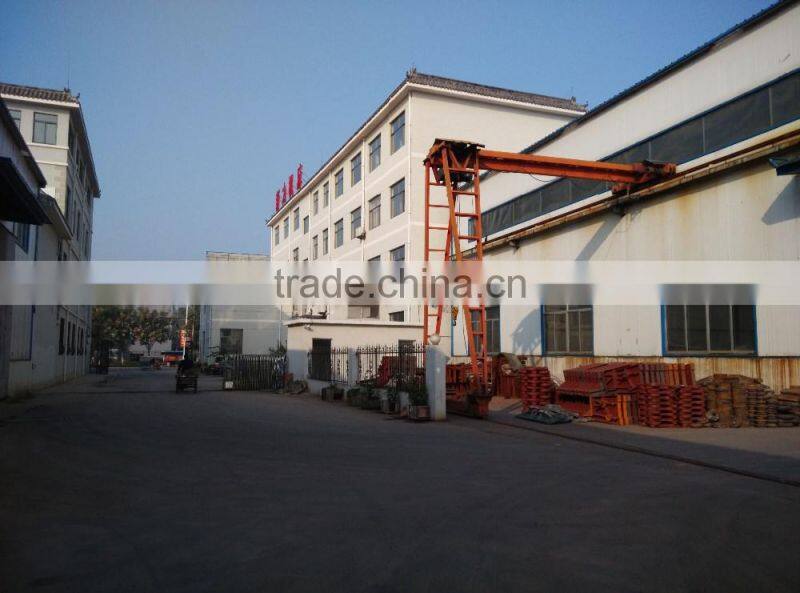

Our company is a professional enterprise which produces shear, bending, stamping equipment.
Our main products including: Q11 Series shearing machine, QC12Y series hydraulic swing-type
plate shears, WC67Y, WC67K series bending machine, YZ32 series four-pillar hydraulic machine,
Z series radial drilling machine. We have complete product specifications and excellent processing.
We have strong technical force, advanced technology and equipment, strict management organization,
and our products earn ISO9001: 2008 certification, highly praised by our customers.
Our company is dedicated to the component optimization and product upgrades, continue to
forge ahead and promote technological progress. Warmly welcome to visit our company!
If you need more information, please feel free to contact me!
