297 Wood Chips Process Wood Chipping Equipment

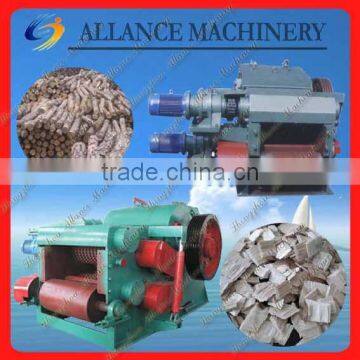

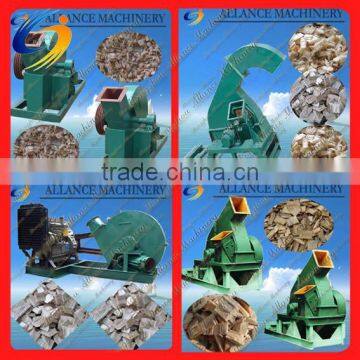

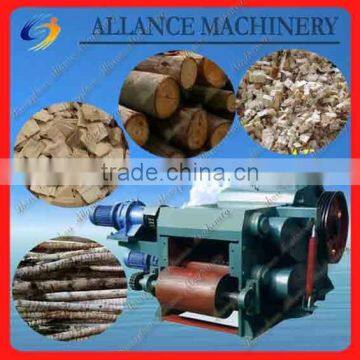

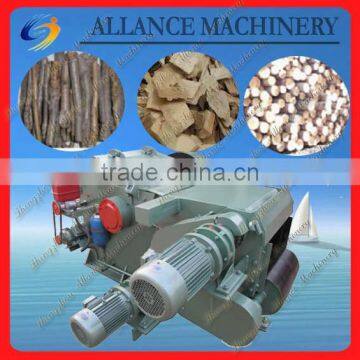

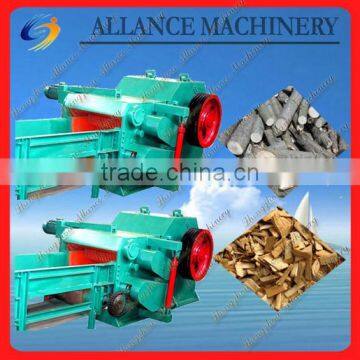

297 Wood Chips Process Wood Chipping Equipment photo-1
297 Wood Chips Process Wood Chipping Equipment photo-2
297 Wood Chips Process Wood Chipping Equipment photo-3
297 Wood Chips Process Wood Chipping Equipment photo-4
297 Wood Chips Process Wood Chipping Equipment photo-5
297 Wood Chips Process Wood Chipping Equipment photo-6
US$ 1 - 7,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, wood chipping equipment
Use:
wood log chipper
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, wood chipping equipment
Use wood log chipper
Power Type Electric
Production Capacity 3-4t/h
Place of Origin Henan, China
Brand Name Allance
Model Number AGXM-215
Dimension(L*W*H) 1470*1550*970mm
Weight 2990Kg
Certification CE
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

wood chips process wood chipping equipment

Product Description
  • Functions--Drum wood chipper making machine/wood chipping equipment

The main cut raw material is small-dimension stock,Wood harvesting, processing remaining

such as branches, slab, wattle, logs core, waste board), and it can also be used to cut the woodiness materials (such as sugar cane, reed, bamboo, ect).297 wood chips process wood chipping equipment

  • Applied Industy-Drum wood chipper making machine/wood chipping equipment

Particle board factory, high density fiberboard factory, grain Factory, biomass power plant, chipper factory

  • Technical Parameters-Drum wood chipping equipment

--Model: AGXM-215

--Inlet size: 160*400mm

--Blade Qty: 2 pieces

--Blade roller speed: 592RPM

--Max diameter of material: 160mm

--Chip size: 30mm

--Output: 3-4t/h

--Main Motor power: 45Kw

--Feeding roller motor power: 2.2-3Kw

--Oil pump power: 1.5*1Kw

--Conveyor power: 3Kw

  • Features--Drum wood chipper making machine/wood chipping equipment

advanced structure,high quality of chips and convenience operation and maintaining.

  • Consititution--wood chipper making machine/wood chipping equipment

Drum chipper consist of engine base,blade roller,upper and lower feeding roller,belt conveyor,hydraulic system etc.

297 wood chips process wood chipping equipment

Detailed Images

297 wood chips process wood chipping equipment

Packaging & Shipping

297 wood chips process wood chipping equipment

Our Services

1, One year guarantee from exporting date.
2, If any easily damaged parts are found defective in quality for the first year, we will replace it

for free.
3,We provide timely delivery. More importantly, if you dont know how to install machines, our professional technical staff will assist you.

FAQ

If you are interested in our wood chipper machine, just let me know below details:

1. What is the capacity you process wood material?

2. What is the raw material and size?

3. What is the output chips size?

Certifications

297 wood chips process wood chipping equipment
