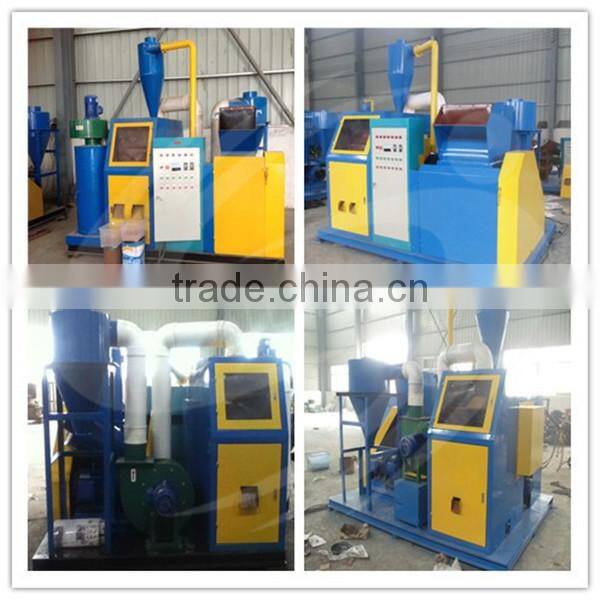

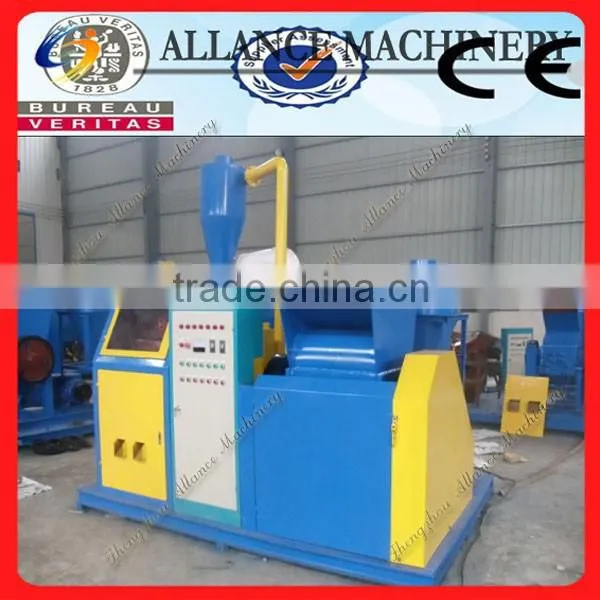

J8 E-waste copper recycling equipment
Introduction of copper recycling quipment
1. This machine is a kind of environmental friendly machine, which mainly used to crush various cable wires diameter within 20mm, to separate the copper from the pvc plastic, and finally get pure copper granules and plastic granules.
2. The machine can separate the copper granuales from the plastic by the winding separation and the vibrating separation at last. The recycling rate is up to 99.99%
3. The material of the waste wires can be telephone wire, household electric wire, automotive wire and cables whose diameter should be within 20 mm.
4. This machine has three exits: one for clear copper granule, one for plastic granule, another for dustry.
5.The machine is a overall combined machine, operated by the advanced PLC control system, just need 1-2 person is Ok.
Product features of copper recycling quipment
1. Equipped with PLC control system
2. Reliable operation, low noise and large handling capacity.
3. Double crushing process improves the copper recycling purity.(600type and 800type)
4. Recycling 99% copper from scrap copper wires or cables.
5. Independent conveyor to delivery mixture of copper and plastic, making the whole working plant more stable.(800type)
6. The blade of the crusher can be removed to be sharpen.
7.When processing the waste copper wires, it produces no dust, no environmental pollution.
Parameters of copper recycling quipment
Model |
Power (kw) |
Capacity (kg/h) |
Dimension (mm) |
Weight(kg) |
Wire range |
ALC-400 |
22.45kw |
150-200kg/h |
2900*1900*2300mm |
1200kg |
1-20mm |
ALC-600 |
32.8kw |
300-400kg/h |
3000*2100*2300mm |
3000kg |
1-20mm |
ALC-800 |
75kw |
500-600kg/h |
5500*6450*3300mm |
8000kg |
1-40mm |

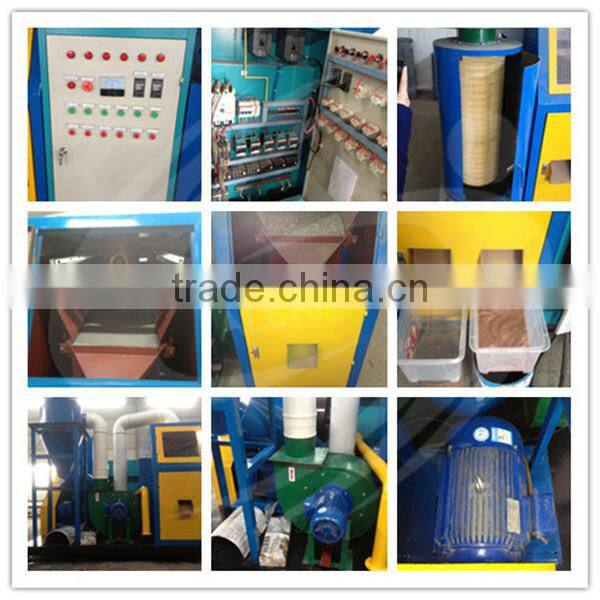

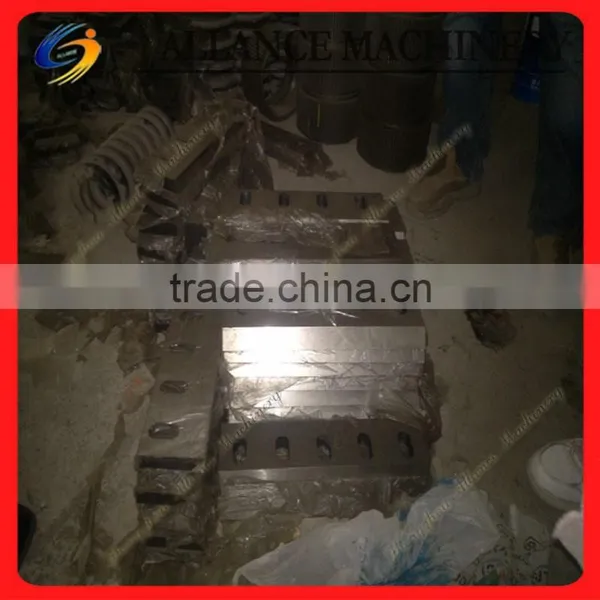

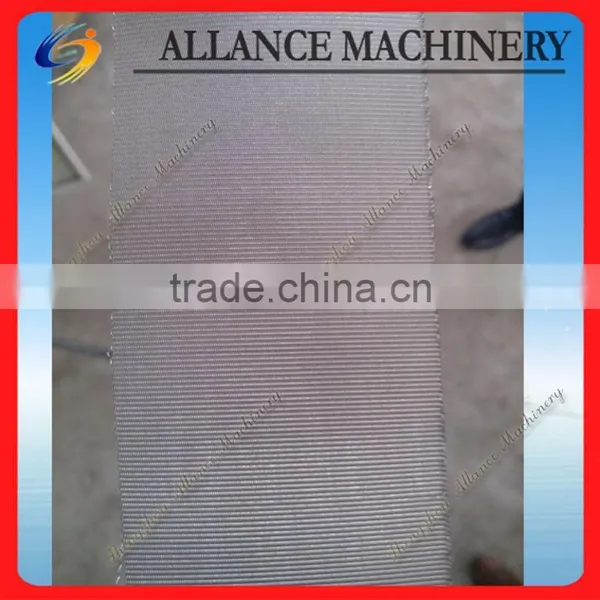

Detailed parts of copper recycling quipment

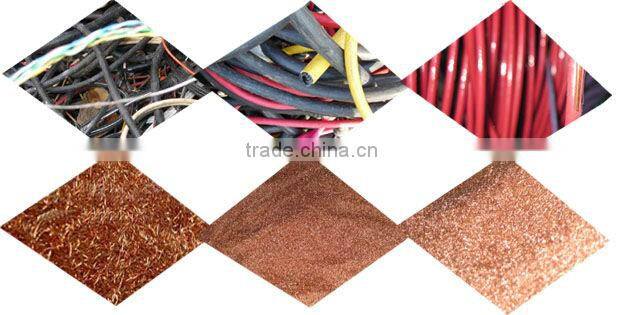

Wire processed of copper recycling quipment
It can crush various kinds of industrial cable wires such as auto-wires, communicate cables, telephone wires and computer wires, electric line, optical cable, etc.

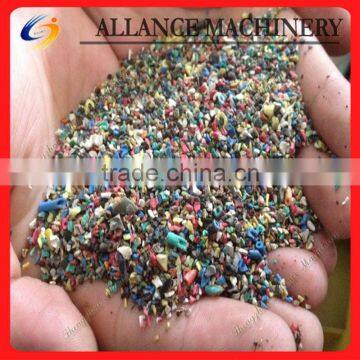

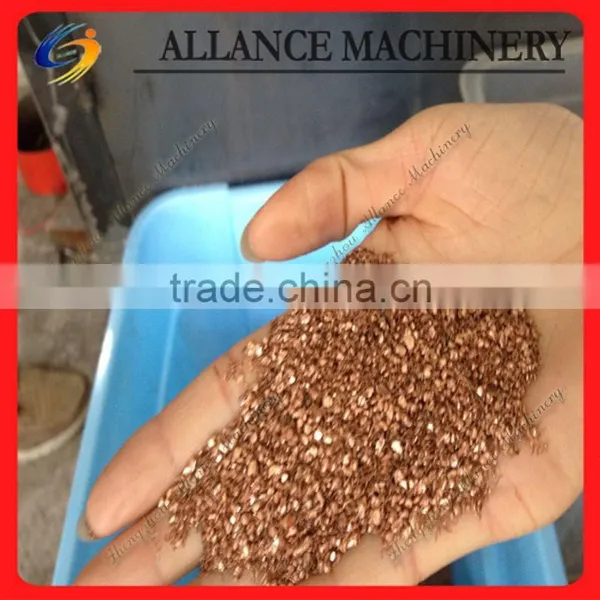

Copper Particle from copper recycling quipment

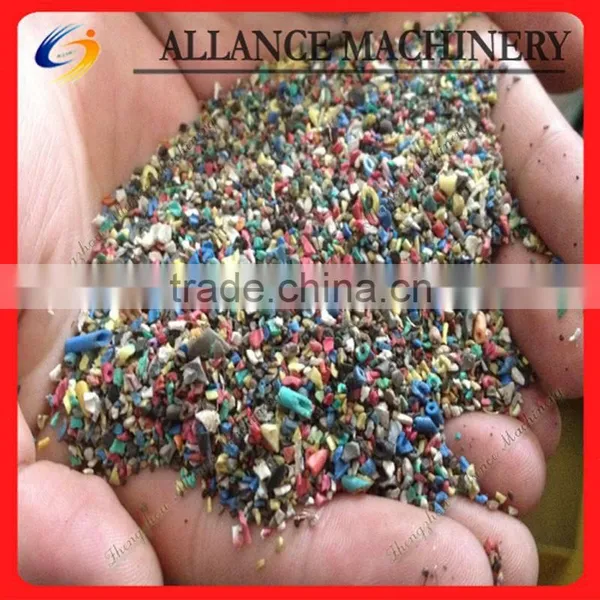

1. This machine can recycle 99/9% pure copper granules and recycle the plastics at the same time.
2. Independent discharging hole for copper granule and plastic pellets. We are devoted to perfect any details to save your time and improve efficiency.

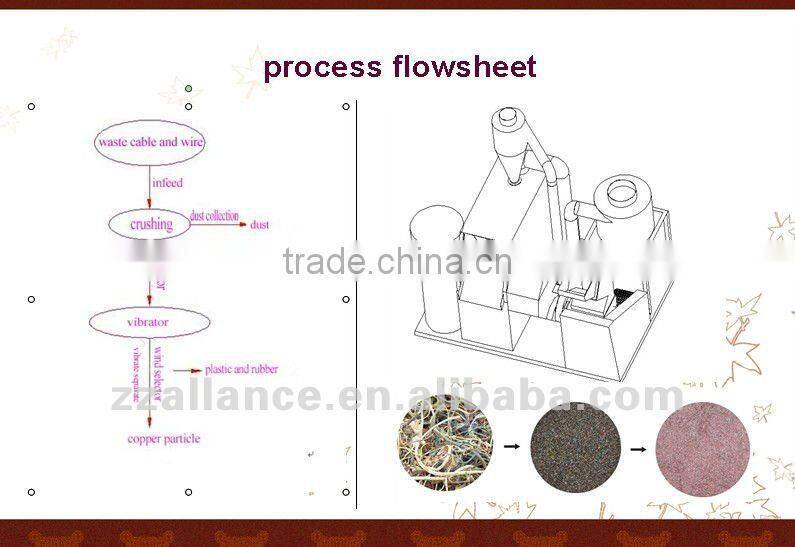

Production process of copper recycling quipment
Crushing procedure---Conveying & dust-collecting---Separating process--- Copper collecting.
Crushing procedure---Conveying & dust-collecting---Separating process--- Copper collecting.

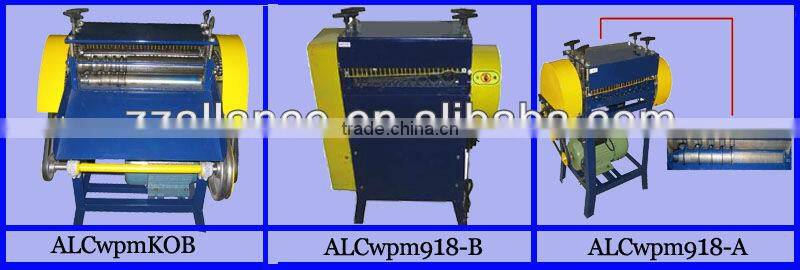

We also have various type of wire peeling machine/wire stripping machine

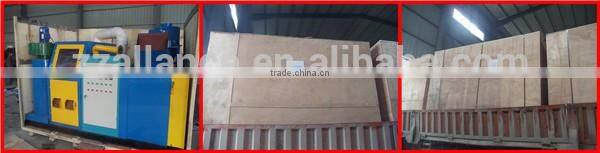

Wooden packing outside can ensure safety during delivery
Contact: Ms Zhao
Skype: AL.ZHAO.88
Tel/Whatsapp: 0086 18790279329
Email: sales10(at)allance(dot)cn
