Wood pellet production
Why Choose Allance Machinery
Over several years effort, Allance machinery has been the strong comprehensive strength manufacturer in pellet mill making industry in Zhengzhou, China. Our wood pellet machines can process wide range of raw materials into biomass fuel pellets.
What We Do
Our company is dedicated to undertaking wood pellet machines’ designing, systematic manufacturing, timely installation and after-service. We can provide professional service from highly skilled design to engineering teams manufacturing with the state-of-the-art technology dedicated to meeting your needs. We can also provide personal service and wood pellet pressing solutions with an expert team.
Pellet Mill for Sale
We are expert in offering Extrusion Granulation Unit for biomass pellet production from wood and biomass. If you want cheap-buy, if you want quality-buy, just buy from us!
* Small Wood Pellet Plant
* Diesel Flat Die Wood Pellet Mill
* Electric Flat Die Wood Pellet Mill
* Disc Wood Chipper
* Drum Wood Chipper
* Wood Hammer Mill
* Airflow Sawdust Dryer
* Rotary Drum Drying Machine
* Wood Peeling Machine
* Pellet Packing Machine
Introduction of Small Wood Pellet Plant
Wood pellet production has been a popular trend nowadays. Wood pellet plant is specially designed for biomass pellets. It’s an integrated system with wood pellet mill and other supporting equipments being highly efficient for making biomass pellets, wood pellets, it enjoys a wide application rage for the raw materials, including logs, saw dust, wood shavings, crop straw, etc. Our small wood pellet plant is special developed to meet the family or small industrial use, it is made up of wood hammer mill, airflow dryer, screw conveyor, flat die pellet press, horizontal cooling & screening machine, bucket elevator, automatic pellets packing machine, and electric cabinet. It has three types capacity:200-300kg/h, 400-600kg/h, and 1T/h.
Choose the Suitable Small Wood Pellet Line
We supply two kinds of this small wood pellet plants, mobile type wood pellet plant and stationary type wood pellet line. Both of the pellet making lines are popular in the family, on the farms, and in small biomass pellet plants.
1. The stationary type wood pellet line is without bottom frame, it’s a nice choice if you want to make pellets in a fixed place and have enough space to install the small pellet line. Besides, it has the price advantage compared to the pellet line with frame.

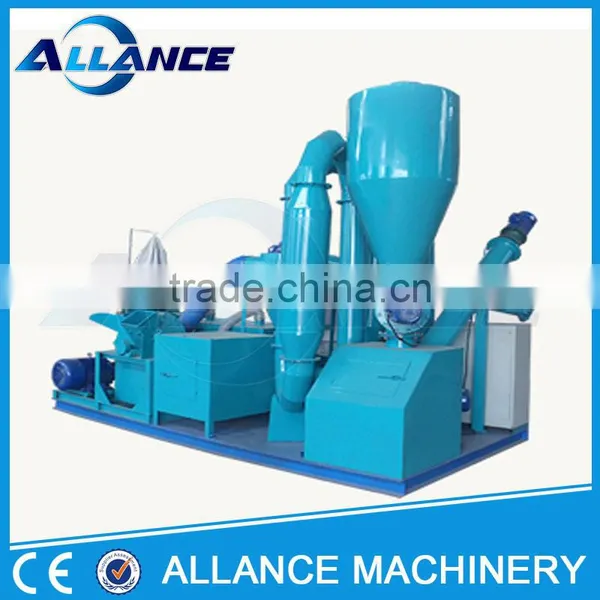

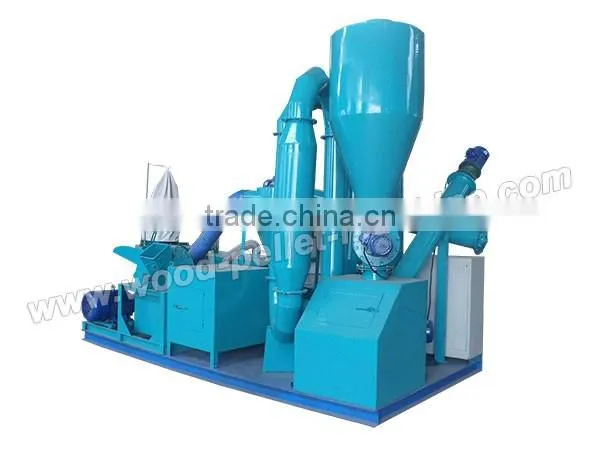

2.However, all the machines of the mobile wood pellet plant are based on one foundation, it’s convenient to move and also save much space, can satisfy your needs of mobile production. It is preferred by most farmers and small pellet plants owners due to its flexibility, mobility, stability, compact structure, and small floor area.
Advantages of Small Wood Pellet Plant
* Wide Application Range. Any kind of biomass materials containing wood fiber, such as peanut shell, bagasse, castor shell, straw, sawdust, coffee grounds, rice husk, sunflower shell, cotton stalk, corn stover, tobacco residue, leaf mustard stalk, bamboo, jute residue, tea residue, palm shell, bean shell, coconut shell, alfalfa, wheat straw, and wood waste, etc.
* Wide Applicability. This mobile pellet plant is flexible and all the machines are installed on one foundation frame, so that it’s convenient to move. And due to the delicate design and small volume, it’s favorable for transportation.
* Easy operation, automatic restart and shutdown the machine in order with only one press.
* Equipped with integrated electric cabinet, high automation, less labor costs.
* All spare parts are made of superior quality alloy steel, processed by advanced technology.

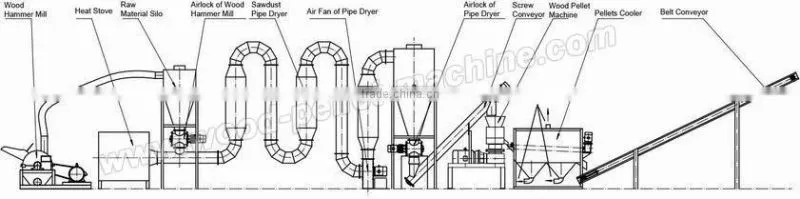

The Producing Flow Chart of Small Mobile Pellet Plant
Machine List in Small Wood Pellet Plant
| No. | Name | Set | Power | Weight | Size |
| 1 | Hammer Mill | 1 | 30kw | 1.2ton | 2000*1400*1500mm |
| 2 | Airflow Dryer | 1 | 7.5kw | ||
| 3 | Dust Catcher | 1 | |||
| 4 | Wind Closing Device | 1 | 0.75kw | 0.08ton | 480*240*240mm |
| 5 | Raw Material Storage | 1 | 0.25ton | 1300*800*1400mm | |
| 6 | 200 Screw Elevator | 1 | 1.5kw | 0.15ton | 3800*160*160mm |
| 7 | 200 Screw Feeder | 1 | 1.5kw | 0.06ton | 1500*160*160mm |
| 8 | 400 Flat Die Sawdust Pellet Machine | 1 | 30kw | 1.4ton | 1450*800*1600mm |
| 9 | 500 Horizontal Cooling & Screening Machine | 1 | 1.5kw | 0.35ton | 2000*800*1550mm |
| 10 | Dust Collection Fan | 1 | 4kw | 0.2ton | 1000*1000*2200mm |
| 11 | 25 Bucket Elevator | 1 | 2.2kw | 0.45ton | 4000*650*380mm |
| 12 | 25 Automatic Packaging Machine | 1 | 2.2kw | 1.1ton | 2000*800*2500mm |
| 13 | Electric Cabinet | 1 | 0.26ton | 800*350*1400mm | |
| 14 | Bottom Frame | 1 |
|
