Small animal feed grinder and mixer with factory price
Introduction of small animal feed grinder 9FQ-36
9FQ series hammer type straw crusher is my company on the merits of the original model, through the innovative design of new type of feed processing machinery.The machine has high production efficiency, the use of safe, reliable, saving human resources, etc.He is widely used in agriculture, animal husbandry and fishery concentrate and all kinds of straw, stems, vines roughage processing and chemical industry, paper making, brewing, the shattering of the raw materials such as man-made board.
This series crusher supporting power of quadrupole motor or more than 12 horsepower diesel engine (tractor).No matter with what kind of power, mill must work under the rated speed, it is forbidden to overdrive.
Technical Information of small animal feed grinder 9FQ-36
Models |
Specification |
Model 9FQ-36 Grinder |
Matched Power:5.5KW 380V 50HZ 3 PHASE Capacity:500KGS/HOUR(2.5MM Sieve) Weight:220KGS |
Model 9FQ-40 Grinder |
Matched Power:7.5KW 380V 50HZ 3 PHASE Capacity:800KGS/HOUR(2.5MM Sieve) Dimension:1450*700*850MM Weight:300KGS |
Model 9FQ-42 Grinder |
Matched Power:11KW 380V 50HZ 3 PHASE Capacity:1200KGS/HOUR(2.5MM Sieve) Dimension:1450*700*850MM Weight:300KGS |
Model 9FQ-50 Grinder |
Matched Power:15KW 380V 50HZ 3 PHASE Capacity:1500KGS/HOUR(2.5MM Sieve) Dimension:1450*600*610+750*770*900MM Weight:480KGS |
Model 9FQ50-40 Grinder |
Matched Power:30KW 380V 50HZ 3 PHASE Capacity:2100KGS/HOUR(2.5MM Sieve) Dimension:2215*915*850+950*700*1000MM Weight:650KGS |
Model 9FQ50~60 Grinder |
Matched Power:37KW 380V 50HZ 3 PHASE Capacity:2500KGS/HOUR(2.5MM Sieve) Dimension:2215*915*850+950*700*1000MM Weight:750KGS |
working principle of small animal feed grinder 9FQ-36
Material from the hopper into the crushing chamber, by high speed rotating hammer blow and broken, in under the action of centrifugal force, make the broken material along the outer limits of the rotor, continuous, tooth plate and sieving slice by hammer extrusion, collision, hit, rub and quickly shattered, shredded powders in the rotor of the centrifugal pressure and the suction fan through the mesh sent out under the action of outside, not through the mesh powder, repeat the above process until through the mesh was sent to closed

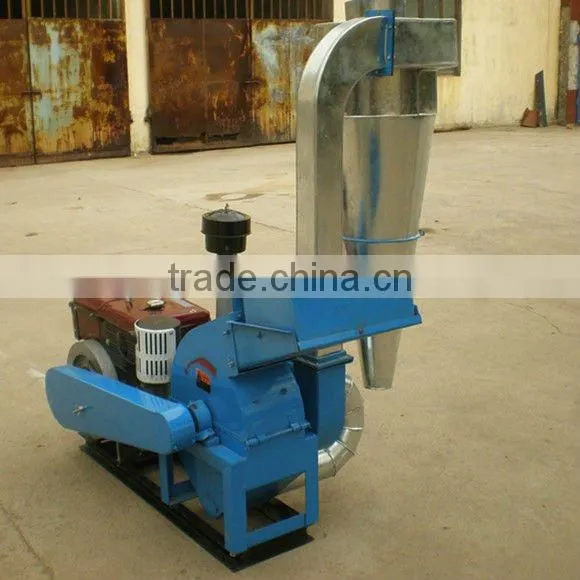

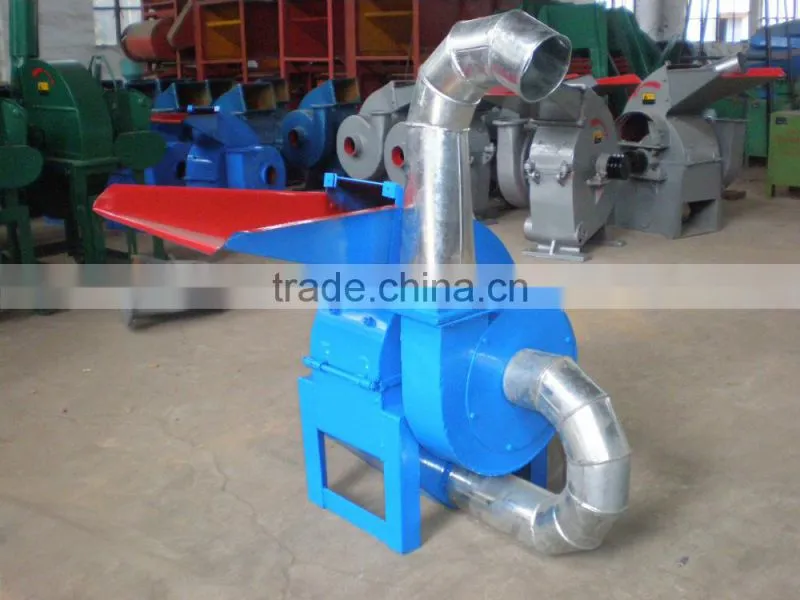

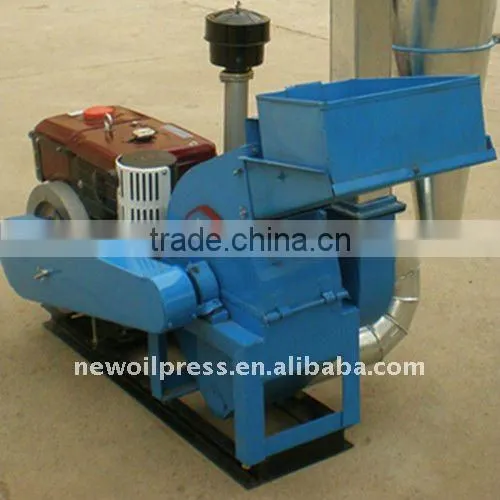

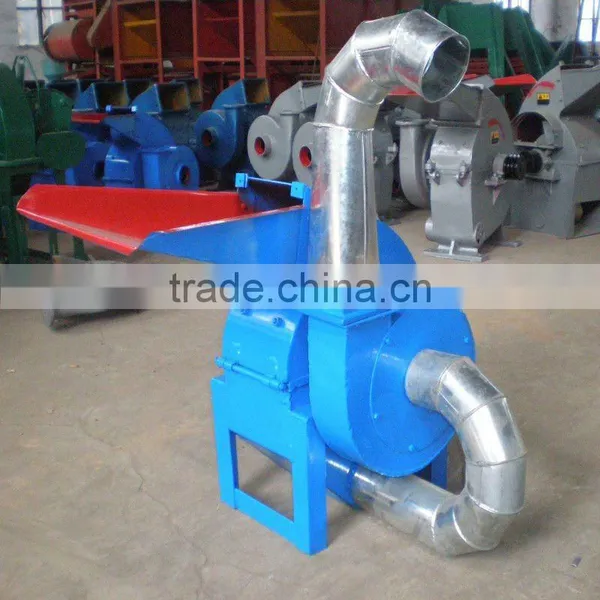

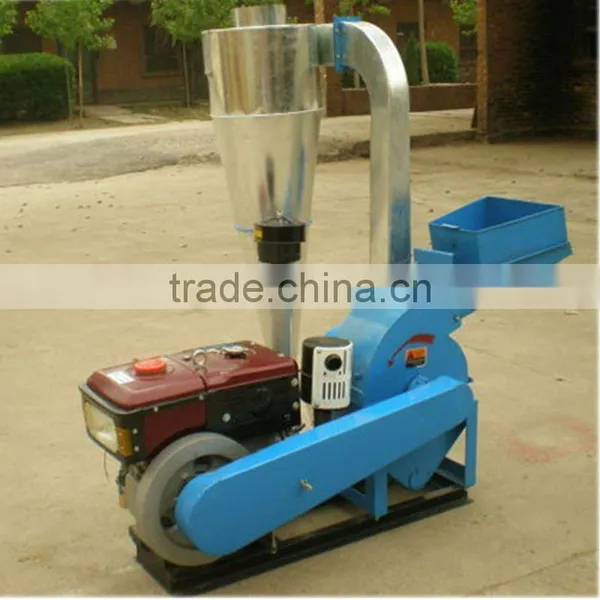

Photo Show of small animal feed grinder 9FQ-36

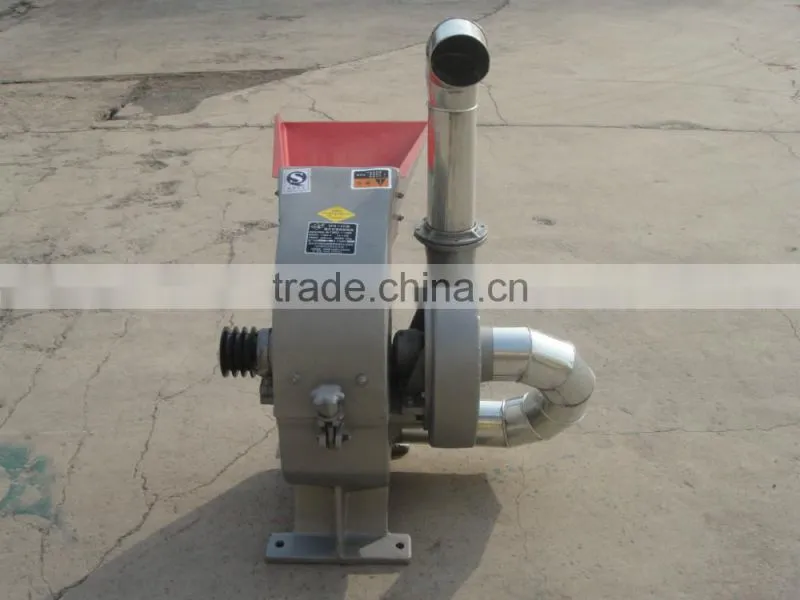

Cast iron type of 9FQ-36
We also supply peanut sheller ,roaster ,oil press machine etc. agriculture machines
MOQ : 1 Set
Payment: By TT
Delivery time: For sample machines, we have stock available. If quantity is over 5 sets, 10~15 days after order confirmation.
After service:
1) Free replacement of wearing parts in 6 months from date of purchasing
2) We provide spare parts all year around at factory cost
3) We provide technical solutions for clients at any time.
Henan New Elephants Machinery Co., Ltd
Manufacturer & Factory of Oil Press
Established in 1970s , Henan New Elephants Machinery Co. ,Ltd , specializing in production of vegetable oil processing machines, is a professional manufacture og hammer mill ,peanut sheller ,oil press machine etc. agriculture machines with more than 40 years' production experience .
With advanced technology and rich experience , our products have been well sold both at home and abroad and enjoy a high reputation from our clients .
Canton Fair
1:how do I pay for my purchase?
T/T,L/C at sight.
2:What’s the delivery time?
15 work days
3:Can I have my own customised product?
Yes, Your customised requirement for color.
4:How to contact us?
You can contact us by telephone and e-mail.
Any queations about our machinees ,welcome to contact us ,have a good life
