Animal feed crusher and mixer hammer mill
Introduction of 9FQ50-40 hammer mill
1, This hammer grinder can not only can crush some kinds of grain crops, but also can grind the crop stalks, wood chips, straw, hay, PVC boards, rubber and etc.
2,It is widely used in crushing of the concentrated feed and straw, stems, vine of roughage processing and chemical industry, paper making, brewing, artificial board and other materials widely used in agriculture, animal husbandry, fisheries.
Technical Information of 9FQ50-40 hammer mill
Models |
Specification |
Model 9FQ-36 Grinder |
Matched Power:5.5KW 380V 50HZ 3 PHASE Capacity:500KGS/HOUR(2.5MM Sieve) Weight:220KGS |
Model 9FQ-40 Grinder |
Matched Power:7.5KW 380V 50HZ 3 PHASE Capacity:800KGS/HOUR(2.5MM Sieve) Dimension:1450*700*850MM Weight:300KGS |
Model 9FQ-42 Grinder |
Matched Power:11KW 380V 50HZ 3 PHASE Capacity:1200KGS/HOUR(2.5MM Sieve) Dimension:1450*700*850MM Weight:300KGS |
Model 9FQ-50 Grinder |
Matched Power:15KW 380V 50HZ 3 PHASE Capacity:1500KGS/HOUR(2.5MM Sieve) Dimension:1450*600*610+750*770*900MM Weight:480KGS |
Model 9FQ50-40 Grinder |
Matched Power:30KW 380V 50HZ 3 PHASE Capacity:2100KGS/HOUR(2.5MM Sieve) Dimension:2215*915*850+950*700*1000MM Weight:650KGS |
Model 9FQ50~60 Grinder |
Matched Power:37KW 380V 50HZ 3 PHASE Capacity:2500KGS/HOUR(2.5MM Sieve) Dimension:2215*915*850+950*700*1000MM Weight:750KGS |

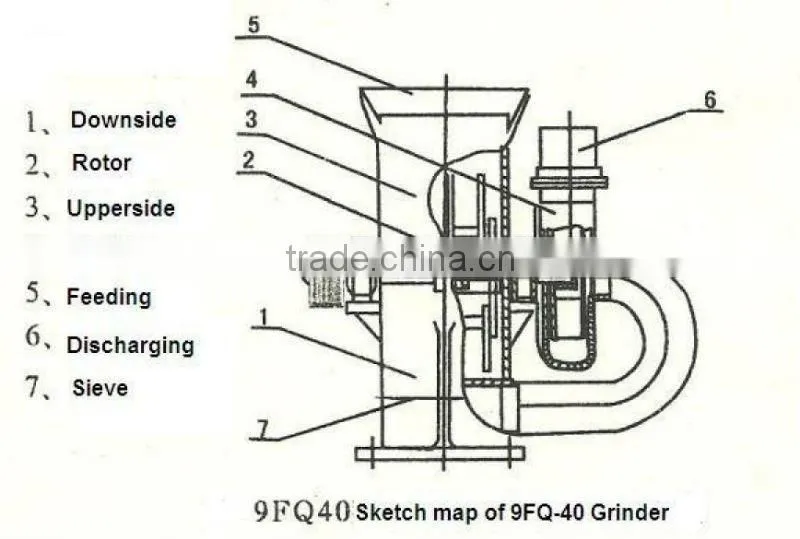

working principle of 9FQ50-40 hammer mill
Material from the hopper into the crushing chamber, by high speed rotating hammer blow and broken, in under the action of centrifugal force, make the broken material along the outer limits of the rotor, continuous, tooth plate and sieving slice by hammer extrusion, collision, hit, rub and quickly shattered, shredded powders in the rotor of the centrifugal pressure and the suction fan through the mesh sent out under the action of outside, not through the mesh powder, repeat the above process until through the mesh was sent to closed

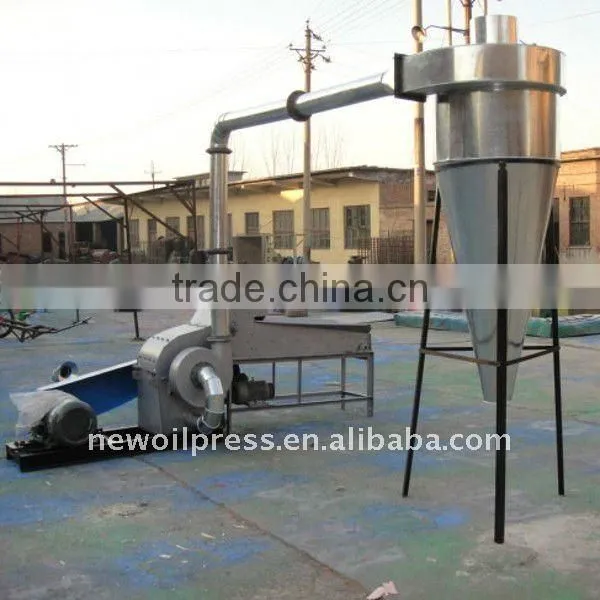

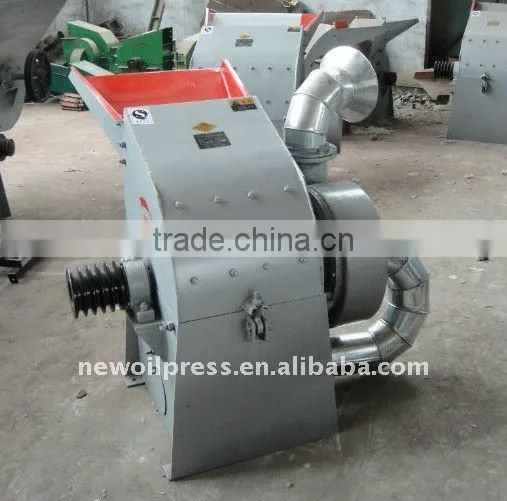

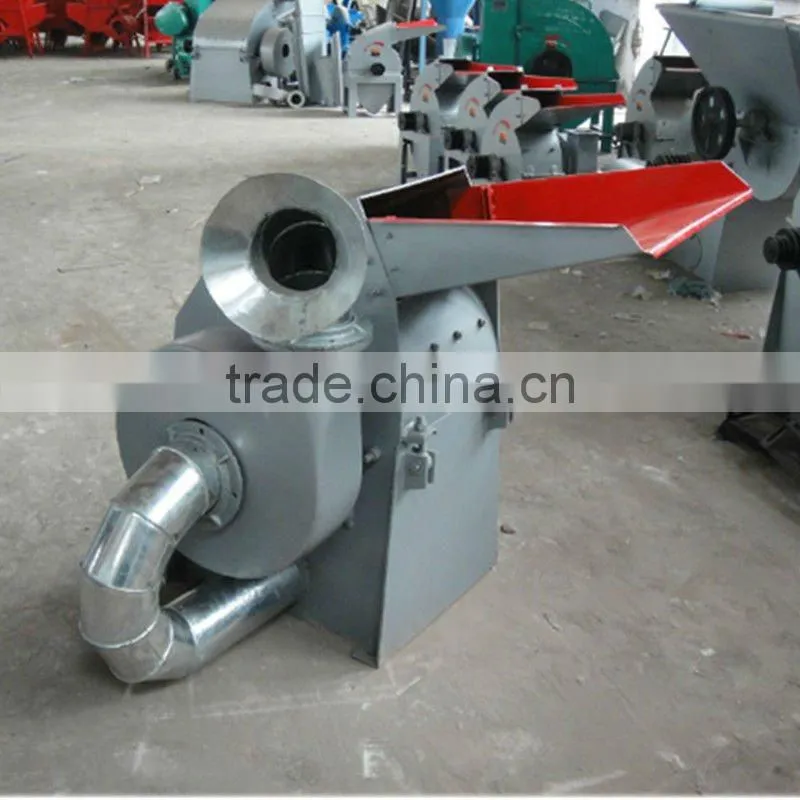

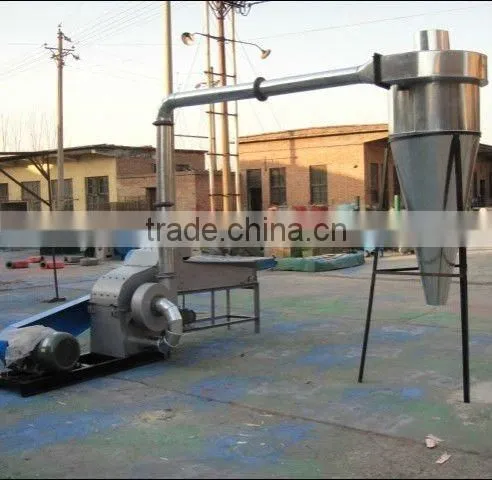

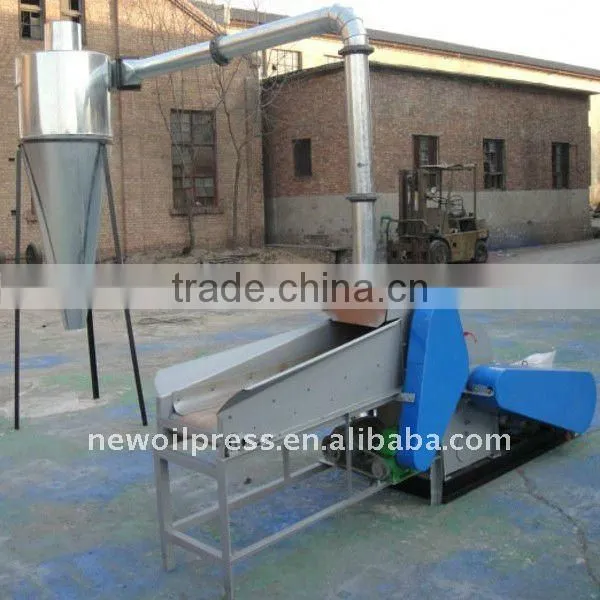

Photo Show of 9FQ50-40 hammer mill
We also supply peanut sheller ,roaster ,oil press machine etc. agriculture machines
MOQ : 1 Set
Payment: By TT
Delivery time: For sample machines, we have stock available. If quantity is over 5 sets, 10~15 days after order confirmation.
After service:
1) Free replacement of wearing parts in 6 months from date of purchasing
2) We provide spare parts all year around at factory cost
3) We provide technical solutions for clients at any time.
Henan New Elephants Machinery Co., Ltd
Manufacturer & Factory of Oil Press
Established in 1970s , Henan New Elephants Machinery Co. ,Ltd , specializing in production of vegetable oil processing machines, is a professional manufacture og hammer mill ,peanut sheller ,oil press machine etc. agriculture machines with more than 40 years' production experience .
With advanced technology and rich experience , our products have been well sold both at home and abroad and enjoy a high reputation from our clients .
Canton Fair
1:how do I pay for my purchase?
T/T,L/C at sight.
2:What’s the delivery time?
15 work days
3:Can I have my own customised product?
Yes, Your customised requirement for color.
4:How to contact us?
You can contact us by telephone and e-mail.
Any queations about our machinees ,welcome to contact us ,have a good life
