Product Description:
This product takes the unique nanomolecule purifying technology to make the oil containing few water and impurities so that it can be used repeatedly in the highly precise equipment at home and abroad.
The vacuum oil filter are mainly used for filtering the crude oil pressed out by screw type oil press. Filter press can be matched with oil press Model 6YL68, 80, 95, 100, 120,130,160 for combined operation, and they own matched electric motor and a vacuum pump. The serial products of frame typed oil filtering machine are ideal equipments for edible oil plant and individual oil processing house.
1) high oil quality, the oil can meet the standard of health guarantee
2) easy-permeate solvent, low leftover oil rate
3) lower weight,lower price,lower power consumption,more compact structure etc.
Main Techincial Parameter:
Model |
Capacity |
Power |
Weight |
Dimension(mm) |
6LB-250 |
50-60 iters/hour |
0.75kw |
160kgs |
900*550*730 |
6LB-350 |
25-255 liters/hour |
1.1.kw |
480kgs |
1220*680*920 |
6LB-400 |
450-600 liters/hour |
2.2kw |
850kgs |
1600*720*980 |
Application:
The vacuum oil filter always is used as an oil purifier in the oil plants for edible oil or biodiesel. This model filter is suitable for filter crude oil and refined oil, and it is also can be used to filter bleaching oil in the refining workshop.
Oil Filter Working Principle

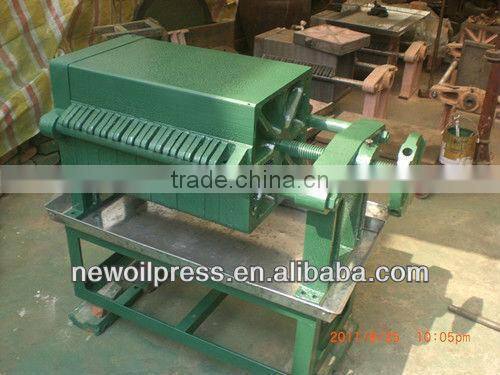

1. This frame oil filter is composed of filter plates, filter frames, oil pump and filter cloth, etc.
2. When the crude oil is pumped into the filtering machine, under the different pressure in and outside the machine, the crude oil go through the filtering cloth and come out from the pipe under the filter plate,
3. while the oil dregs remains on the surface of the filtering cloth, thus realizing the filtering process.
Delivery time: For sample machines, we have stock available. If quantity is over 5 sets, 10-15 days after order confirmation.
Payment: 30% advance to enforce order, 70% balance should be paid before shipment.
After service:
1) Free replacement of wearing parts in 6 months from date of purchasing
2) We provide spare parts all year around at factory cost
3) We provide technical solutions for clients at any time.
Henan New Elephants Machinery Co., Ltd
1.We are leading manufacturer and exporter of different types oil press ,oil filter in China with more than 40 year's experience.Our products are popular with customer from all over the world.
2.Producing and exporting the quality equipment to many countries with competitive prices.
1:how do Ipay for my purchase?
T/T,L/C at sight.
2:What’s the delivery time?
15 work days
3:Can I have my own customised product?
Yes, Your customised requirement for color.
4:How to contact us?
You can contact us by telephone and e-mail.
We are the manufacture of Farm Machinery and could provide you various machine according to your request. If you need our help, please do not hesitate to contact us!
