Refined sunflower oil filtration machine
Introduction of Refined sunflower oil filtration machine

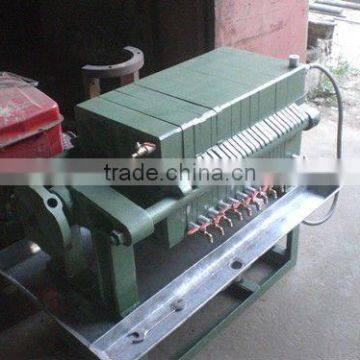

The frame typed oil filtering machine produced by our factory include :Model 6LB350 ,6LB250 ,which are mainly used for filtering the crude oil pressed out by screw typeoil press and can be matched with oil press model 68 ,80 ,95 ,100 ,120 for combined operation .
The serial products of frame typed oil filtering machine are ideal equipment for edible oil plant and individual oil pressing house .
1) high oil quality, the oil can meet the standard of health guarantee
2) easy-permeate solvent, low leftover oil rate
3) lower weight,lower price,lower power consumption,more compact structure etc.
Main Techincial Parameter:

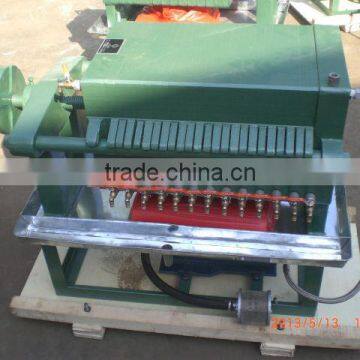

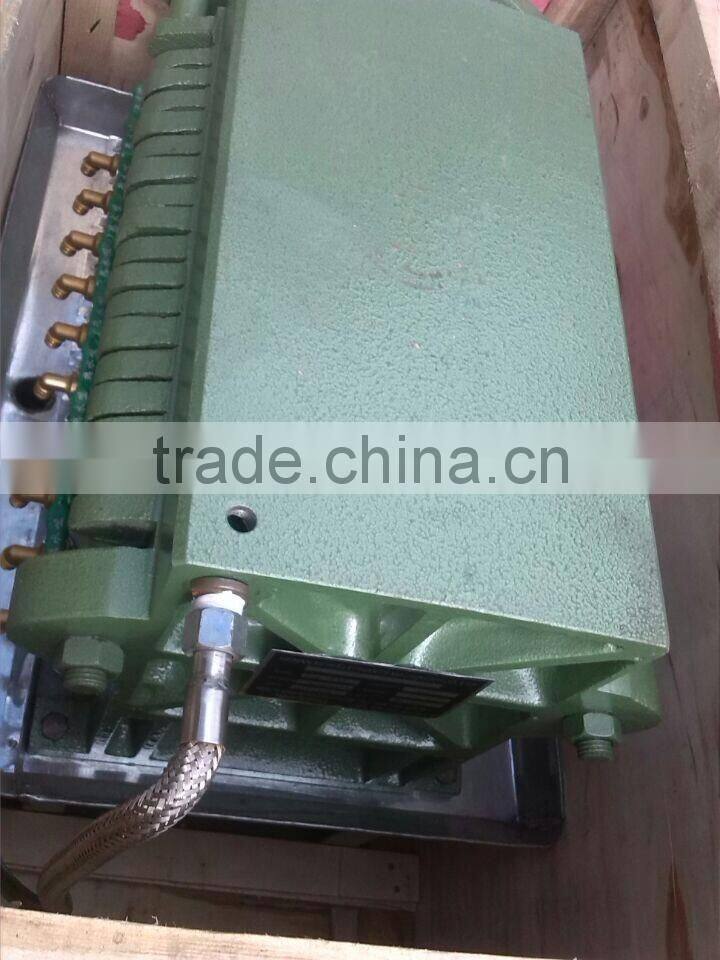

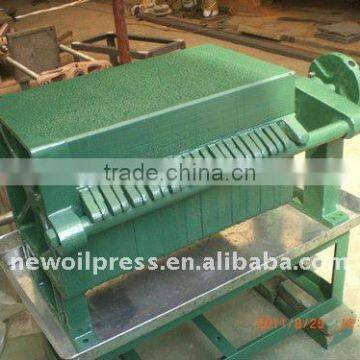

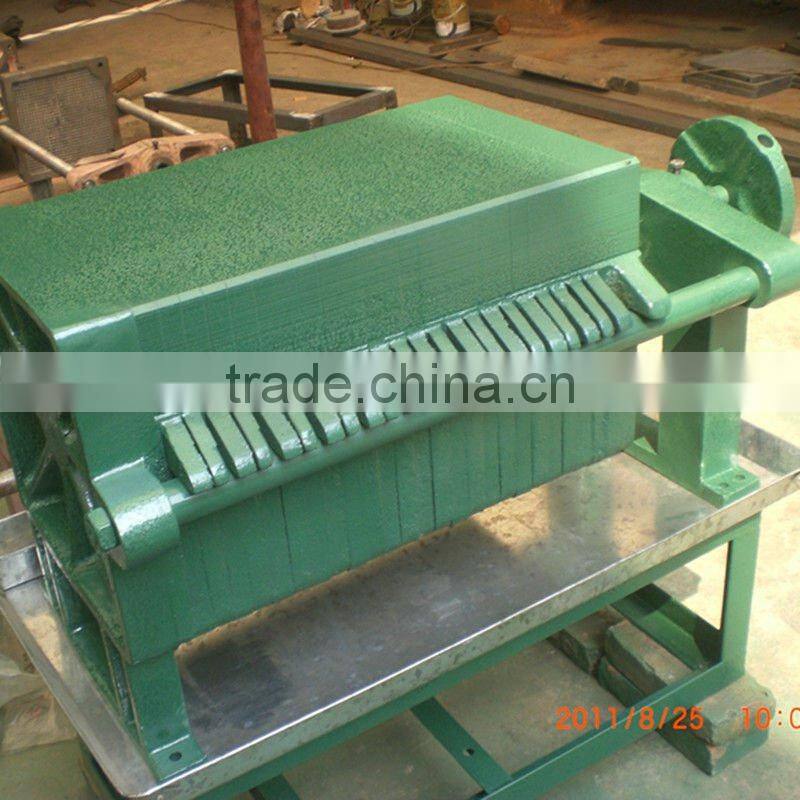

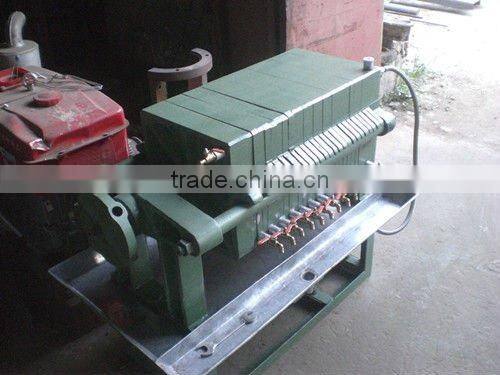

Frame oil filter
6LB-250 |
No. Of filter plates |
Dimensions of filter plate (mm) |
Working pressure |
Productivity |
Power |
Dimension (mm) |
Weight
|
17 pieces |
250 * 250
|
0.5MPa |
50-100kg/h |
0.55kw |
780*530*670 |
155kg |
6LB-350 |
No. Of filter plates |
Dimensions of filter plate (mm) |
Working pressure |
Productivity |
Power |
Dimension (mm) |
Weight
|
27 pieces |
350 * 350
|
0.5MPa |
100-200kg/h |
1.1kw |
1300*750*700 |
470kg |

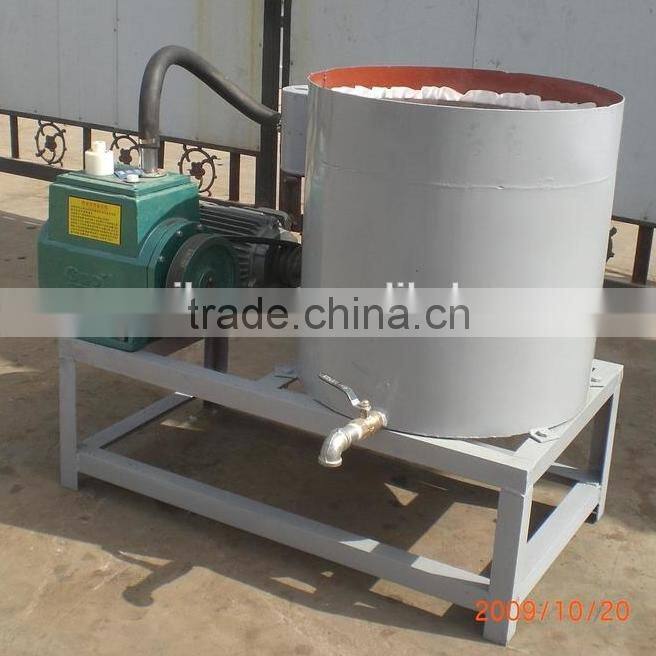

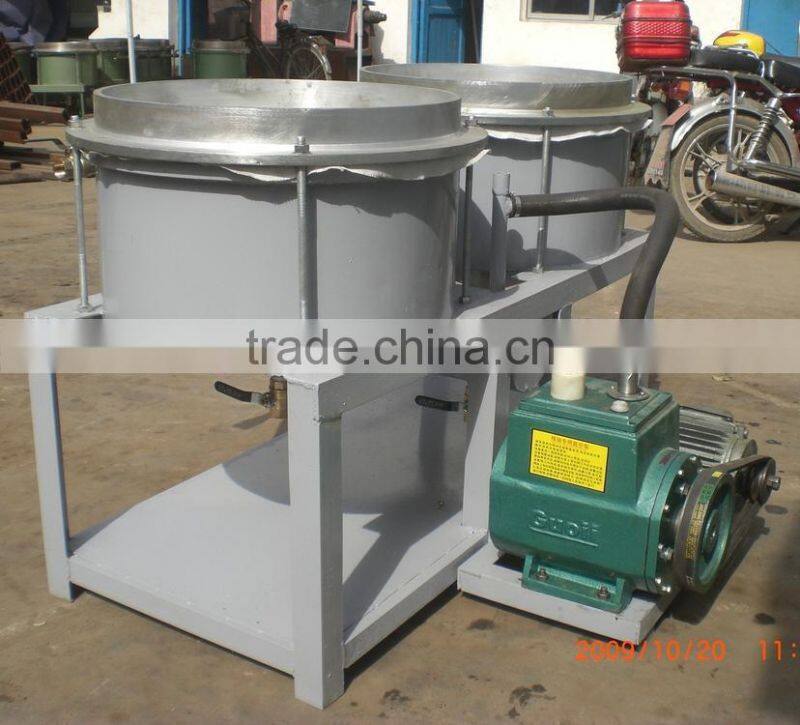

Vacuum oil filter
Model |
Capacity |
Power |
Weight |
Dimension |
DZK-450-6 |
60-70liters/hour |
1.5kw |
70kgs |
900*520*950 |
DZK-450-8 |
100-120liters/hour |
1.5kw |
100kgs |
1090*970*920 |
DZK-550-15 |
180-250liters/hour |
2.2kw |
180kgs |
1350*1200*950 |
Application:
The frameoil filter always is used as an oil purifier in the oil plants for edible oil or biodiesel. This model filter is suitable for filter crude oil and refined oil, and it is also can be used to filter bleaching oil in the refining workshop.
Oil Filter Working Principle
1. This frame oil filter is composed of filter plates, filter frames, oil pump and filter cloth, etc.
2. When the crude oil is pumped into the filtering machine, under the different pressure in and outside the machine, the crude oil go through the filtering cloth and come out from the pipe under the filter plate,
3. while the oil dregs remains on the surface of the filtering cloth, thus realizing the filtering process.
How to use
Check the tie-ins whether it is loose or stainless .
Vacuum filtering department :the rotate direction of the electric engine should be coordinate with the mark ,rotating in the wrong direction may damage the vacuum pump .
l Open the valve 2 ,close the other valves 1 2 3 4 5 6
l Open the valve 1 ,then open the valve 5 to vent the oil .
l Open the valve 4 and close the valve 2 in time when the oil in the second vat get to the 1/3 of the oil observe windows .
l Open the value 3 ,then open the valve 6 to vent the oil .According to the above process ,the vacuum pump .
Delivery time: For sample machines, we have stock available. If quantity is over 5 sets, 10-15 days after order confirmation.
Payment: 30% advance to enforce order, 70% balance should be paid before shipment.
After service:
1) Free replacement of wearing parts in 6 months from date of purchasing
2) We provide spare parts all year around at factory cost
3) We provide technical solutions for clients at any time.
Henan New Elephants Machinery Co., Ltd

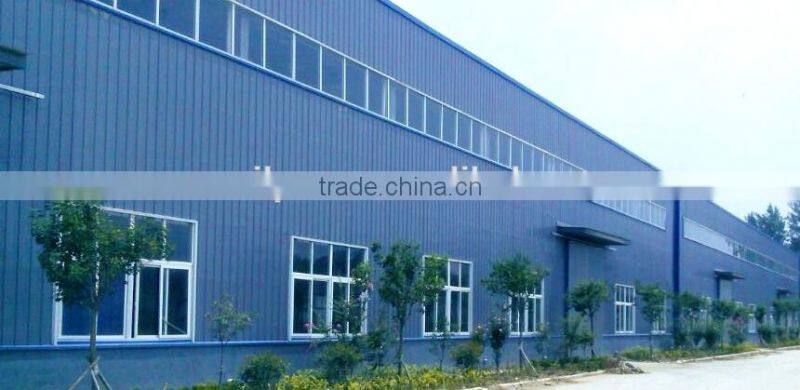

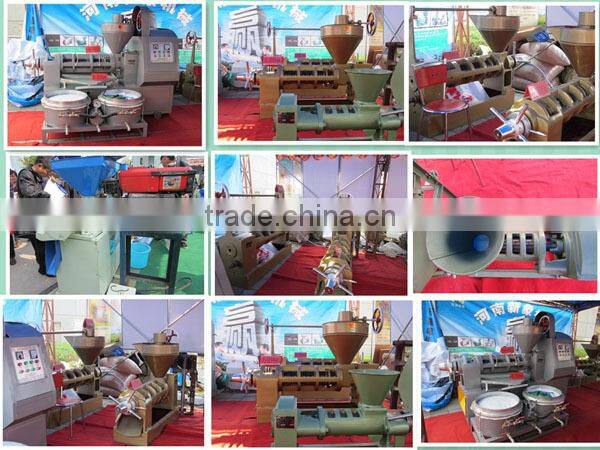

Established in 1970s, Henan New Elephants Machinery Co., Ltd. is a professional manufacturer that produces various types of oil presses and oil refining plants. Our factory is located in Shenqiu, which has a profound history for producing oil processing equipment.
We provide various choices for different sizes of oil processing workshops. We have complete sets of fully automatic oil pressing equipment with the production capacity of 5, 10, 15 and 20 tons. With advantages of energysaving and convenient setup, our main products, such as 6YL series, are statepatented products and reach the international technical level.
We guarantee higher quality and better service, and sincerely hope we could be your sincere longterm partner!
1:how do Ipay for my purchase?
T/T,L/C at sight.
2:What’s the delivery time?
15 work days
3:Can I have my own customised product?
Yes, Your customised requirement for color.
4:How to contact us?
You can contact us by telephone and e-mail.
We are the manufacture of Farm Machinery and could provide you various machine according to your request. If you need our help, please do not hesitate to contact us!
