Home > Products > Single Feed Machine Of Each Process > 5t/h chicken and cattle feed pellet production line with competitive price and high quality

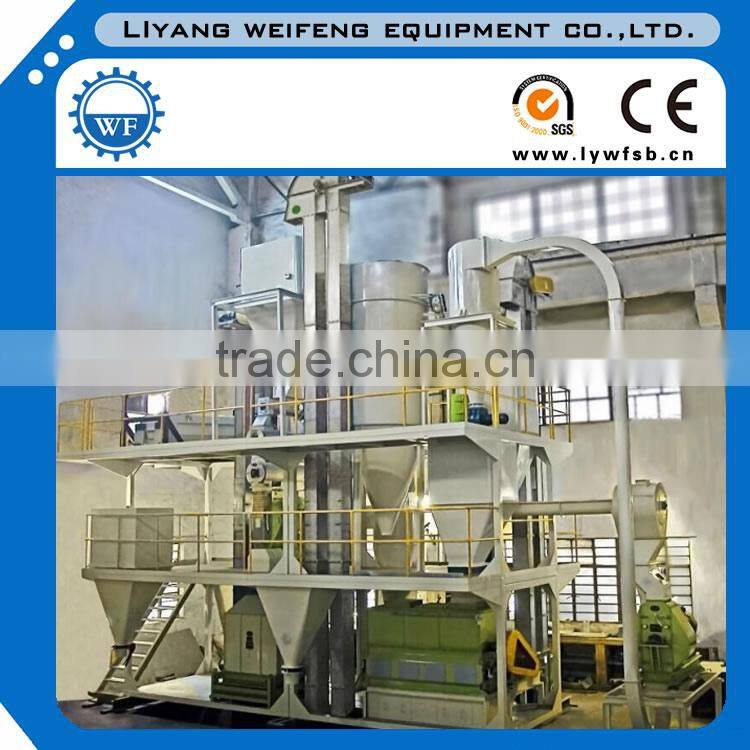

5t/h chicken and cattle feed pellet production line with competitive price and high quality
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Weifeng, Weifeng | Model Number | SZLH series | |
| Type | Other, Feed Pellet Machine, Ring die | Voltage | 380V, 3 Phase,380V,50HZ | |
| Power(W) | 110KW | Dimension(L*W*H) | 2200*1000*1500mm | |
| Weight | 30000 kg | Certification | CE | |
| Warranty | 1-3 YEARS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE SZLH320 feed pellet mill,3TPH pig feed production line
Ring die pellet mill
Animal feed pellet mill with two layer conditioner
Can add steam to increase the capacity and the pellet quality
1Driven with heavy- duty gearbox construction can produce continuously in most adverse condition.
2The imported key elements are of high performance with long life and low maintenance cost.
3The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel
4Pellet machine is widely used in the best quality animal feed making.
Technical parameters
No | Name | Model | |||||
SZLH25 | SZLH32 | SZLH35 | SZLH40 | SZLH42 | SZLH508 | ||
1 | Capacity (T/H) | 0.5-1.5 | 2-5 | 3-8 | 5-10 | 6-12 | 8-20 |
2 | Power (KW) | 15 | 37 | 55 | 75/90 | 90/110 | 132/160 |
3 | Screw feeder Power (KW) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 |
4 | Conditioner Power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 5.5 | 5.5/7.5 |
5 | Pellet Size (mm) | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 |
6 | Dimension (mm) | 1668*640*1465 | 2006*800*1801 | 2165*895*1940 | 2302*970*2105 | 3150*1100*2543 | 3200*1300*2795 |
7 | Weight(t) | 1.5 | 2.1 | 2.5 | 2.8 | 3.1 | 3.5 |
