Drum Wood Chipper Used in Fiber Board Factory

Drum Wood Chipper Used in Fiber Board Factory photo-1
Drum Wood Chipper Used in Fiber Board Factory photo-2
Drum Wood Chipper Used in Fiber Board Factory photo-3
US$ 2,500 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wood Chipper
Use:
chip wood log
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Wood Chipper
Use chip wood log
Power Type Electric
Production Capacity 50 Ton
Place of Origin Jiangsu, China
Brand Name LYWF
Model Number BX series
Dimension(L*W*H) 1800*800*1150MM
Weight 185kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Drum wood chipper used in fiber board factory





Drum wood chipper used in fiber board factory



Specification:

1. It is the professional equipment for wood chips production process and used extensively in pulp and paper mills, which can be used as part of the wood handling process .

2. Material handled by this series of Drum Chipper includes raw wood logs, small diameter wood, residual material from wood harvesting( branches, twig), left over from timber processing( lath, slab, core, wood waste, etc.,)

3. It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.



Main Technical Parameter:

Model

BX215

BX216

BX218

BX2113

Inlet Size(m)

160*400

230×500

300×680

450×700

Knife No.(pc)

2

2

2

3

Knife roller rotate speed(rpm)

592

590

650

500

Max Dia of raw material(mm)

160

230

300

450

Wood chips size(mm)

30

30

30

38

Capacity(t)

3-4

7-8

12-15

15-30

Main Motor Power(kw)

45

55

110

220

Feeder Motor Power(kw)

2.2-3

3-4

4-5

7.5*2

Oil Pump Motor Power(kw)

1.5×1

1.5×1

1.5×1

3*1

Weight(kg)

2990

4070

7000

11840

Overall Dimension(mm)

1470×1550×970

1800×1900×1210

3980×2150×1900

3670x2517x2050

Conveyor Motor Power(kw)

3

3

3

3



Note:  The capacity will be affected by your raw material size, final chips size. Pls kindly advise these necessary information when you send a inquiry to us.



Drum wood chipper used in fiber board factory

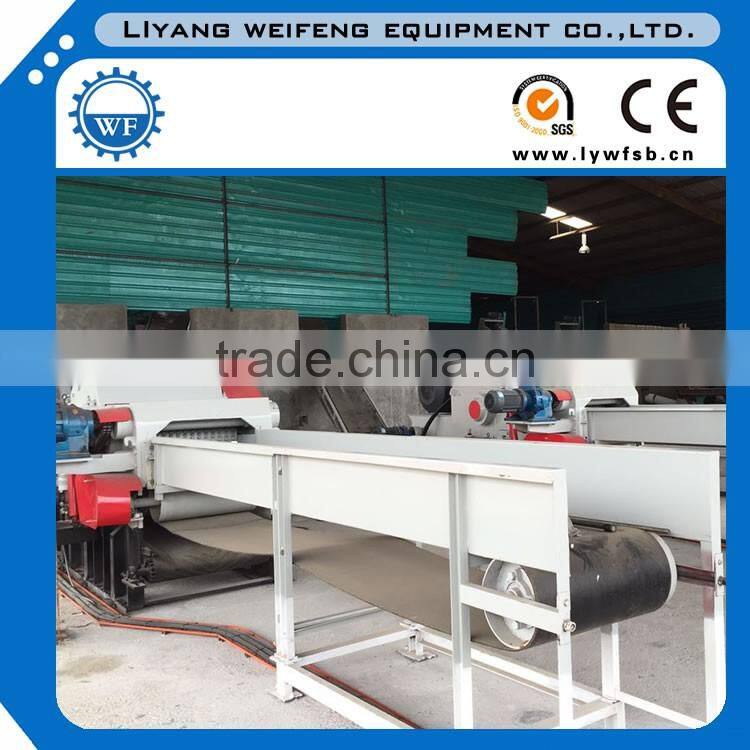

Complete wood chipper including:

 Drum wood chipper used in fiber board factory





Drum wood chipper used in fiber board factory



Drum wood chipper used in fiber board factory

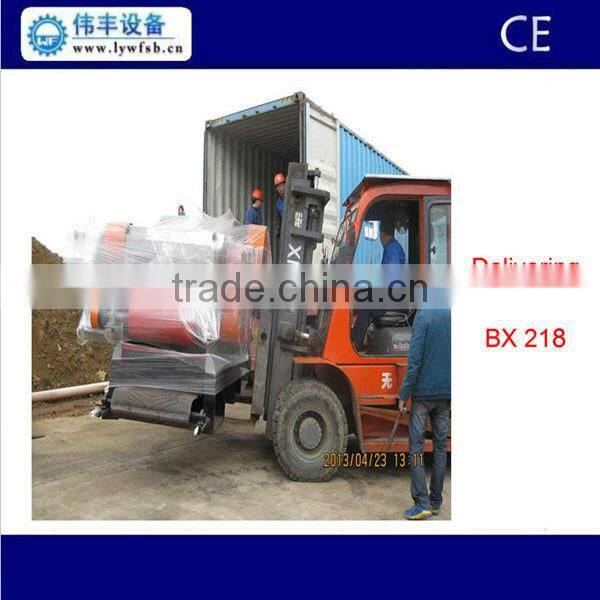

Delivery:

Drum wood chipper used in fiber board factory



Welcome to our factory
