BX213,BX216,BX218,BX2110,BX2113 drum wood chipper used in particleboard factory
- 50 Set / Sets per Month
- shanghai
- T/T Credit Card
- Engine power rice and paddy thresher for sale with factory price (whatsapp: 0086-15263630237)
- wheat paddy rice thresher for sale(whatsapp: 0086-15263630237)
- wheat paddy rice sheller for sale(whatsapp: 0086-15263630237)
- Easy to operate Paddy thresher threshing machine on promotion (whatsapp: 0086-15263630237)
- Rice and wheat thrasher/thresher/threshing machine for sale(whatsapp: 0086-15263630237)
- Best Price for Rice Thresher /Paddy/Rice and Wheat Thresher(whatsapp: 0086-15263630237)
Product Details
Condition: | New | Type: | Wood Chipper | Use: | chip wood log |
Power Type: | Electric | Production Capacity: | 50 Ton | Place of Origin: | Jiangsu, China |
Brand Name: | LYWF | Model Number: | BX series | Dimension(L*W*H): | 1800*800*1150MM |
Weight: | 185kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

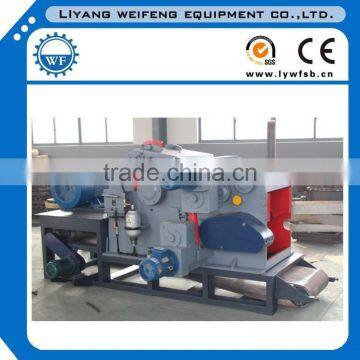

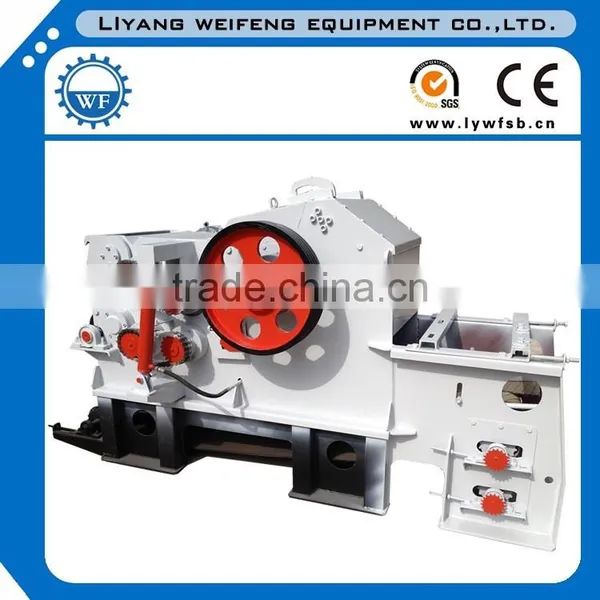

BX213,BX216,BX218,BX2110,BX2113 drum wood chipper used in particleboard factory
Specification:
1. It is the professional equipment for wood chips production process and used extensively in pulp and paper mills, which can be used as part of the wood handling process .
2. Material handled by this series of Drum Chipper includes raw wood logs, small diameter wood, residual material from wood harvesting( branches, twig), left over from timber processing( lath, slab, core, wood waste, etc.,)
3. It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.
Main Technical Parameter:
Model | BX215 | BX216 | BX218 | BX2113 |
Inlet Size(m) | 160*400 | 230×500 | 300×680 | 450×700 |
Knife No.(pc) | 2 | 2 | 2 | 3 |
Knife roller rotate speed(rpm) | 592 | 590 | 650 | 500 |
Max Dia of raw material(mm) | 160 | 230 | 300 | 450 |
Wood chips size(mm) | 30 | 30 | 30 | 38 |
Capacity(t) | 3-4 | 7-8 | 12-15 | 15-30 |
Main Motor Power(kw) | 45 | 55 | 110 | 220 |
Feeder Motor Power(kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Oil Pump Motor Power(kw) | 1.5×1 | 1.5×1 | 1.5×1 | 3*1 |
Weight(kg) | 2990 | 4070 | 7000 | 11840 |
Overall Dimension(mm) | 1470×1550×970 | 1800×1900×1210 | 3980×2150×1900 | 3670x2517x2050 |
Conveyor Motor Power(kw) | 3 | 3 | 3 | 3 |
Note: The capacity will be affected by your raw material size, final chips size. Pls kindly advise these necessary information when you send a inquiry to us.
Complete wood chipper including:
Delivery:
Welcome to our factory
