Biomass sawdust pellet machine, wood pelleting machine
Biomass sawdust pellet machine, wood pelleting machine
Our factory Liyang Weifeng Equipment Co., Ltd. is a professional manufacturer specialized in designing, making high quality wood pellet mill/ wood pellet machine and building turn key wood pellet production line(CE biomass fuel pellet production line, wood pellet production line, sawdust pellet production line, rice husk pellet production line, straw pellet production line, bark pellet production line, bamboo pellet production line. Sunflower husk pellet production line, peanut pellet production line...). With 20 years' experience, professional technical R&D team.
Till now, we have successfully constructed more than 100 pellets production turnkey projects around the world, covering raw material as sawdust(Thailand, Vietnam), wood shavings(Romania), logs(Thailand), straw(Ukraine), bamboo, and also many projects in China, like in Jiangsu, Zhejiang, Guangdong,Fujian, etc.

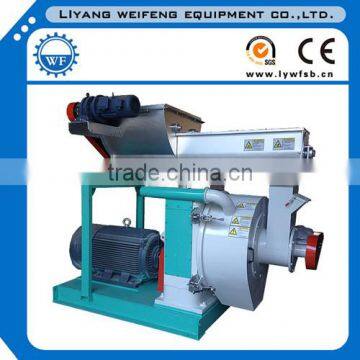

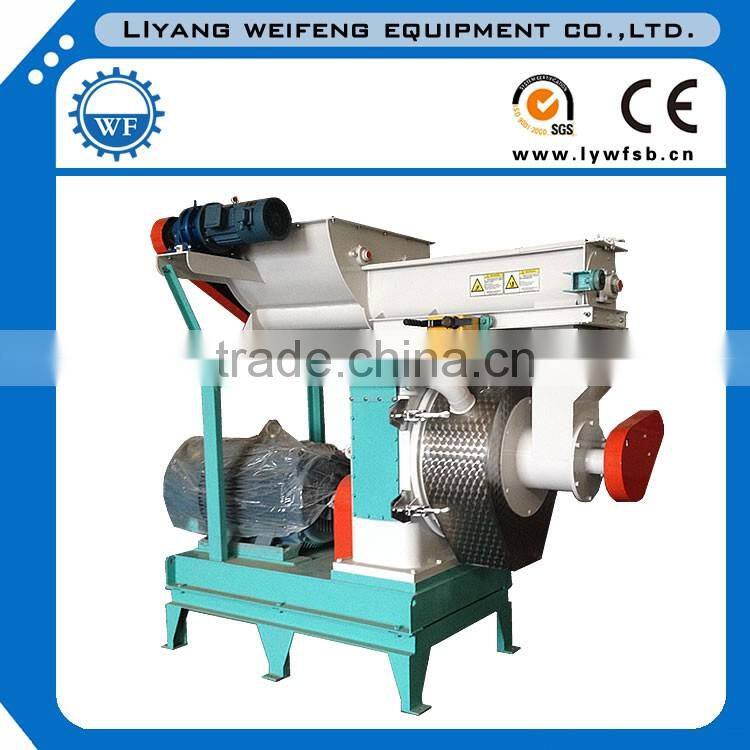

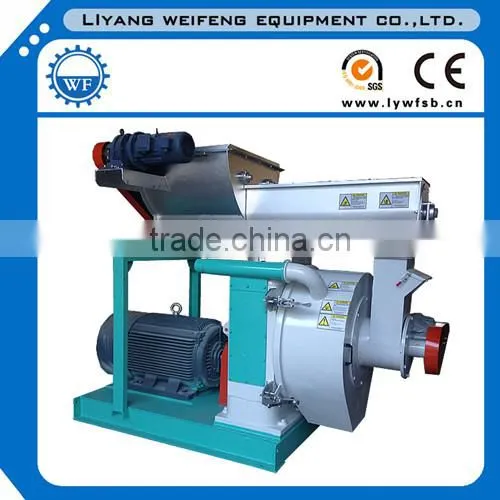

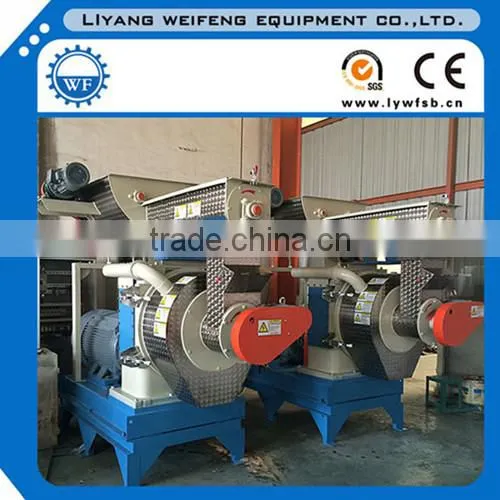

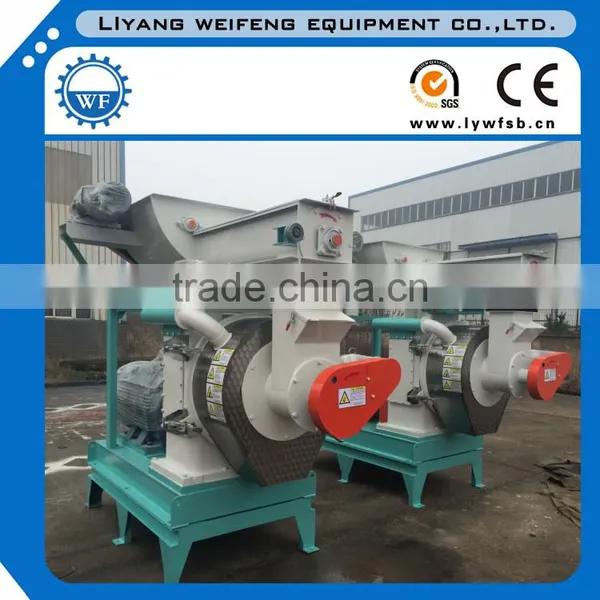

Ring Die Pellet mill:
Technical parameters of pellet machine:
| Model | Main power (kw) |
Capacity (t/h) |
Motor | Bearing | Die diameter (mm) |
Wood pellets size (mm) |
| MZLH350 | 55 | 0.6 | Siemens/WN | NSK | 350 | 4-12 |
| MZLH420 | 90 | 1.0-1.2 | Siemens/WN | NSK | 420 | 4-12 |
| MZLH470 | 44/45 | 0.6-0.8 | Siemens/WN | NSK | 470 | 4-12 |
| MZLH508 | 110/132 | 1.5-2.0 | Siemens/WN | NSK | 508 | 4-12 |
| MZLH678 | 220 | 2.5-3.0 | Siemens/WN | NSK | 678 | 4-12 |
| MZLH768 | 250 | 3.0-3.5 | Siemens/WN | NSK | 768 | 4-12 |
Raw Material:
Remarks: We have used many biomass materials to make pellets, such as bagasse, sawdust, rice husk, red bean, all kinds of wood, eucalyptus barks, peanut shell, grass, straw.....Our technical engineers can design the most suitable compression ratio according to your raw materials.
Total process for wood pellet production line, sawdust pellet line:
Debarking→Chipping→Grinding →Drying→Pelletizing →Cooling & Sifting →Packing
*Debarking process(if needed)
*Chipping process(if the log is larger than 150mm, wood chipper can chip it into 20-50mm)
*Grinding process(grinding the material into small powder to feed in pellet mill)
*Drying process(if the moisture is higher than 17%, need drying)
*Pelleting process(4mm,6mm, 8mm, 10mm, 12mm pellets can be formed by our pellet mill)
*Cooling & Sieving process(the temperature after pelleting is high to 90° C, it needs cooling)
*Packing process
Please kindly note:
Not all above processes are necessary for you. These are common processes for your
reference. we will customize the complete solution as per your raw materials condition and
your request for capacity.

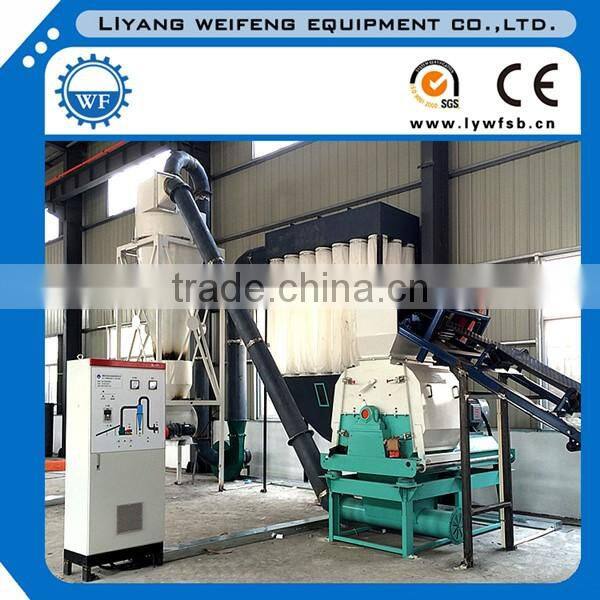

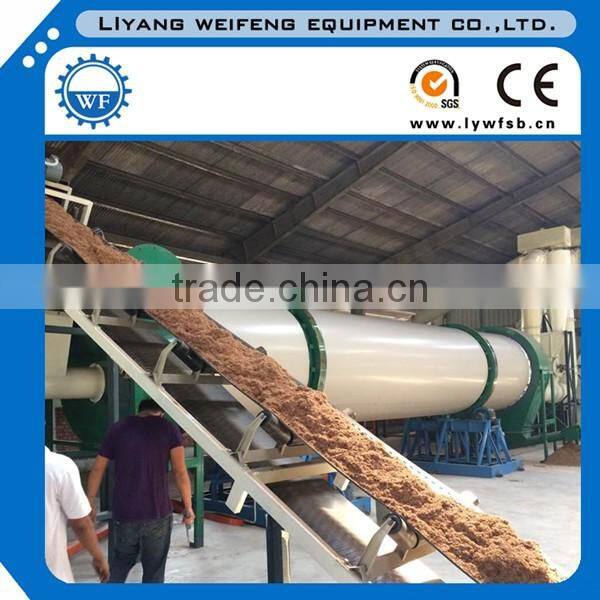

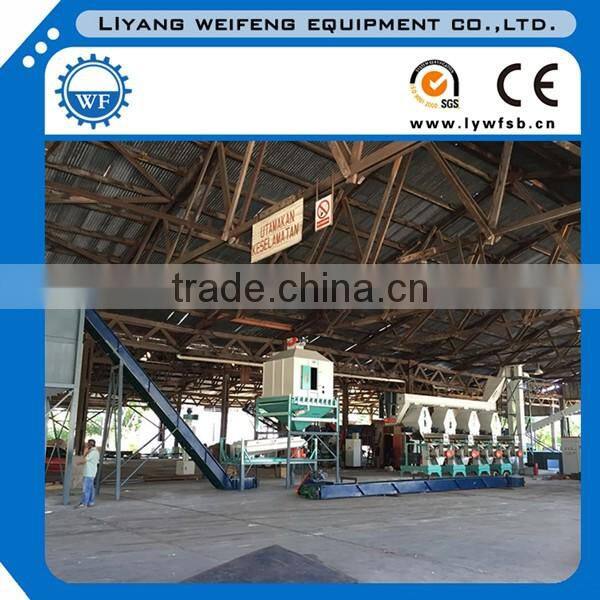

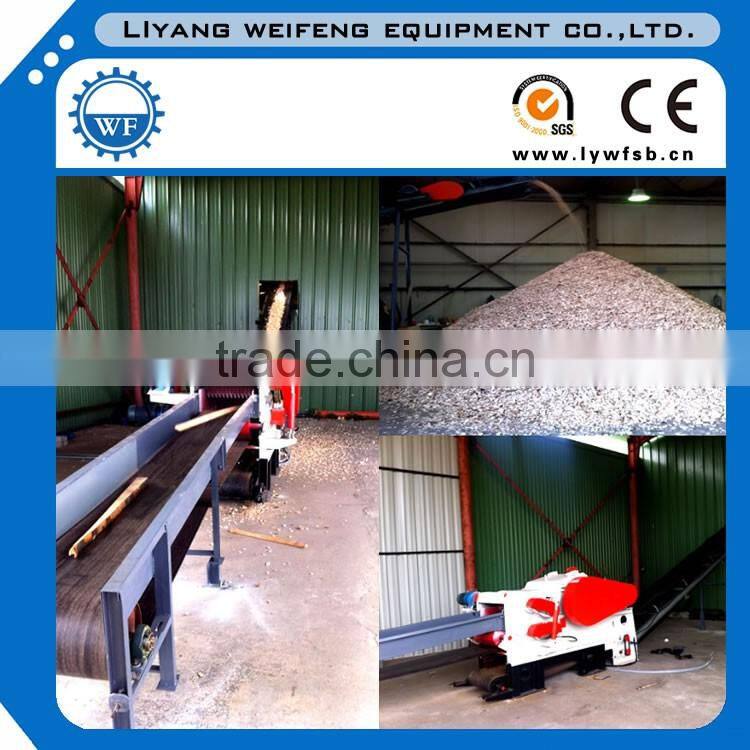

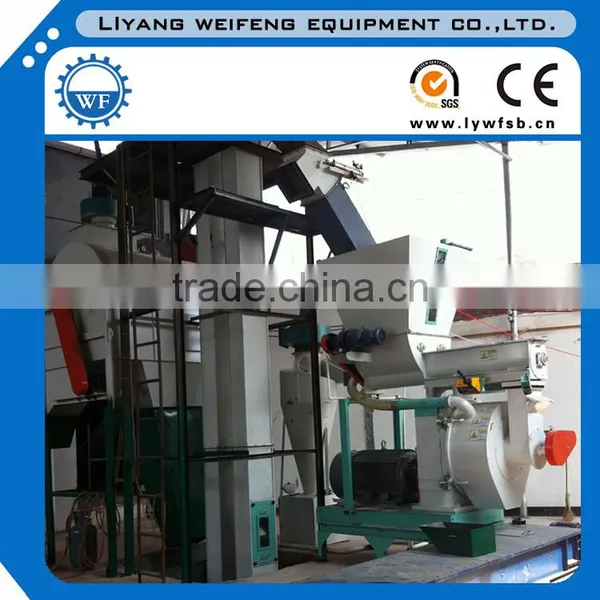

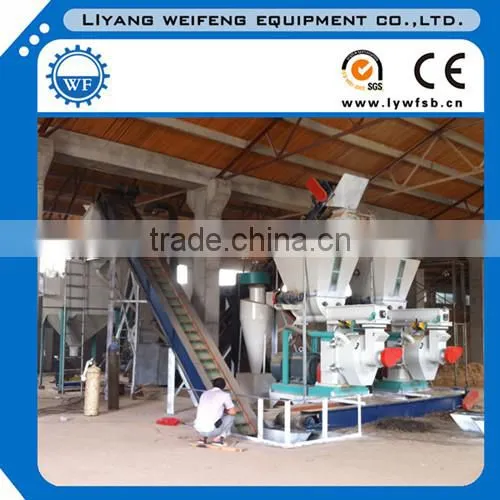

Onsite photos of each process:
Browse each process(CLICK FOLLOWING PHOTO)
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

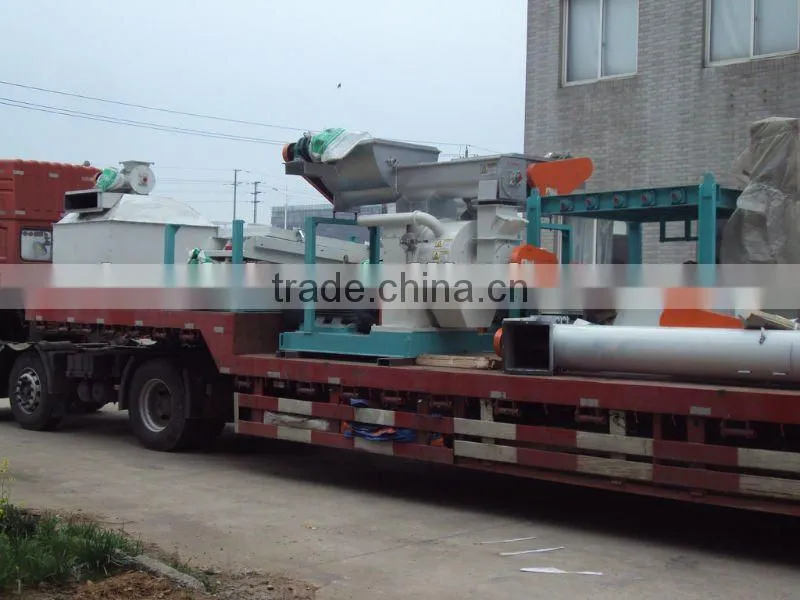

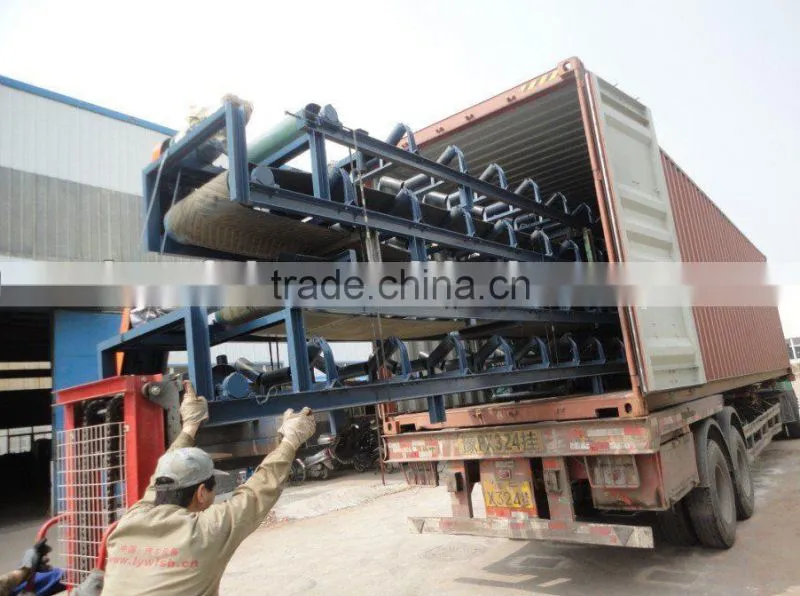

Delivery:
Certificate:
If you're interested in our machines, pls kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
Welcome to your inquiry!
And Welcome to visit our factory in China!
Liyang WeiFeng Equipment Co., Ltd.
To see more of our products:
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
M.P./ Whatsapp: +86 15251966577
Skype: sonya--lywf
Wechat: Sonya_lywfsb
