Low Energy Bag-type Dust Collector
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Efficient Bag Filter Dust Collector Used in Casting House
-
Hot Sale Electrostatic Fabric Dust Collector
-
High Quality Industrial Dry Dusct Collector Filter
-
Pulse Dust Ash Bag Type Dust Remover
-
DMC Pulse Bag Filter Dust Collector Collection System
-
2016 Newest Design High Quality Cheap Price Dust Collector,high Powercyclone Dust Collector
Product Details
| Condition | New | Type | Fabric Dust Collector | |
| Efficiency | 99% | Minimum Particle Size | 0.5um | |
| Place of Origin | Jiangsu, China | Brand Name | WF | |
| Model Number | PMD | Dimension(L*W*H) | 3063/2275/4513MM | |
| Weight | 1~84ton | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description

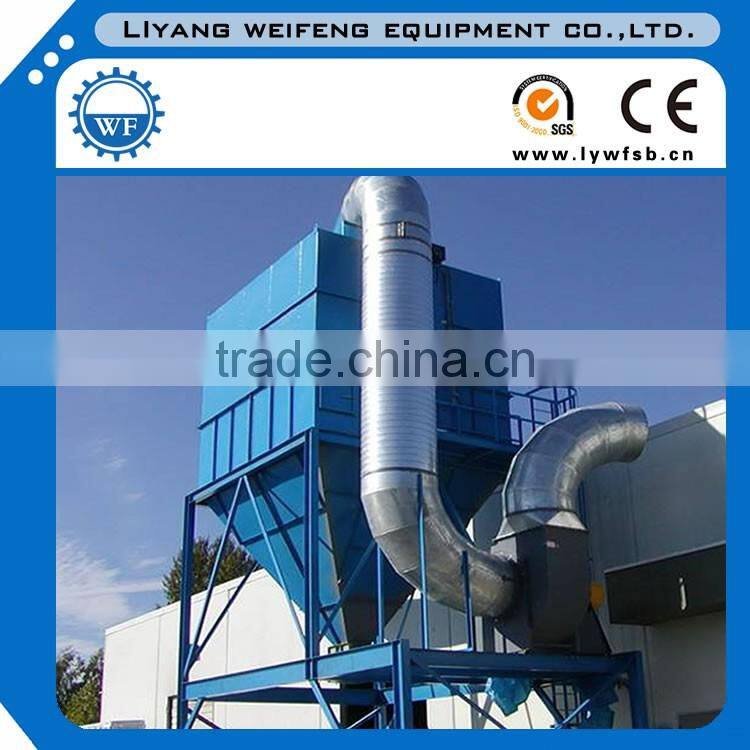

Low energy bag-type dust collector
Advantages of bag-type filter dust collector
High collecting kinetic energy;
High rate in collector;
Small size and quality, being sample and compact in structure, easy to maintain, being used in building material, melting, mineral, chemical and coal to be the dedusing treatment system.
Technical parameters of bag-type filter dust collector
Technical performance | Model | |||||
PMD-24 | PMD-32 | PMD-42 | PMD-63 | PMD-72 | PMD-84 | |
The total squire/m2 | 24 | 32 | 42 | 63 | 72 | 84 |
The filtering speed/m.min-1 | 1.04~1.67 | 1.15~1.75 | 1.21~1.74 | 1.25`1.67 | 1.27~1.62 | 1.27~1.68 |
Wind treatment consumption/m3.h-1 | 1500~2044 | 2500~3500 | 3500~5000 | 4700~6300 | 5500~7000 | 6500`8500 |
Number/piece | 32 | 48 | 64 | 80 | 96 | 112 |
Consumption/m3. min-1 | 0.032 | 0.048 | 0.064 | 0.08 | 0.096 | 0.11 |
Entrance concentration/g.m-3 | ≤100 | |||||
Export concentration/g.m-3 | <50 | |||||
Plus press/M pa | 0.5~0.7 | |||||
withstand negative/pa | 5000 | |||||
Resistance | ≤1200 | |||||
Welcome to chat with me about details
Liyang Weifeng Equipment Co.,LTD
Add: No.2 Jianye Rd,Tianmu Lake Industrial Zone,Liyang City Jiangsu Province,China
Tel: +86 519 88308030
Mobile: Candy: +86 15151953518(Whatsapp/Wechat)
Ms Zhou: +86 13338795677(General manager)
Fax: +86 519 88308600
TradeManager: cn1000552890
Website:
