Steel Track undercarriage manufacturer
Steel track undercarriage, Steel track frame, steel track chassis, steel track system, steel crawlerundercarriage, steel tracked undercarriage, drilling rig steel track undercarriage, crusher steel track undercarriage, excavator track undercarriage
We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.
Specification of track undercarriage:
7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.
We are an experienced company specialized in manufacturing steel track undercarriage and rubber trackundercarriage. We make custom track systems for your mobility needs, and our track undercarriage cancarry up to 50ton, and supporting dual-speed final drive and travel 0-7km/h at grades up to 100%.
For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.
We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.
Specification
MODEL |
Dinamic capacity |
Static capacity |
Weight kg. |
Press.Bar |
oil flow L/min |
Torque Nm to engine |
Grad. |
Speed km/h |
ST-3500 |
3500 |
4000 |
750 |
220 |
35 |
4723 |
65% |
2/3.2 |
ST-6000 |
6000 |
7000 |
1350 |
220 |
55 |
8330 |
65% |
2/3.7 |
ST-8000 |
8000 |
9500 |
1830 |
300 |
82 |
11700 |
65% |
2.8/4.7 |
ST-10000 |
10000 |
11300 |
2350 |
350 |
100 |
14800 |
65% |
3/5.1 |
ST-12000 |
12000 |
15000 |
2950 |
350 |
124 |
22500 |
65% |
2.9/4.9 |
ST-15000 |
15000 |
18000 |
3300 |
350 |
140 |
24000 |
65% |
3.2/5.5 |
ST-20000 |
20000 |
25000 |
4300 |
350 |
220 |
38000 |
65% |
3.5/5.4 |
ST-30000 |
30000 |
37000 |
6500 |
330 |
260 |
59000 |
65% |
2.5/4.6 |
ST-40000 |
40000 |
480000 |
7100 |
350 |
290 |
72800 |
65% |
2.3/4.3 |
| MODEL | A Length |
B Center Distance |
C Height |
D Total Width |
E Width of track shoe |
F Height of Cross beam |
No. of roller |
ST-3500 |
2030 |
1500 | 485 |
1800 |
300 |
225 |
4+4 |
ST-6000 |
2467 |
1950 |
549 |
1700 |
300-400 |
240 |
5+5 |
ST-8000 |
2783 |
2265 |
548 |
1800 |
400-450 |
255 |
8+8 |
ST-10000 |
3800 |
3200 |
600 |
1700 |
400-500 |
280 |
9+9 |
ST-12000 |
3282 |
2575 |
720 |
2000 |
400-600 |
345 |
9+9 |
ST-15000 |
3666 |
2923 |
753 |
2000 |
500-800 |
360 |
8+8 |
ST-20000 |
4065 |
3323 |
786 |
500-800 |
375 |
8+8 |
|
ST-30000 |
4530 |
3730 |
836 |
500-800 |
405 |
9+9 |
|
ST-40000 |
4888 |
4090 |
880 |
500-800 |
420 |
10+10 |
Contact:
Welcome to contact us:
Contact Cathy
Email: kemercn@hotmail.com
Skype: kemercathy
Tel: 0086-134 8664 5746

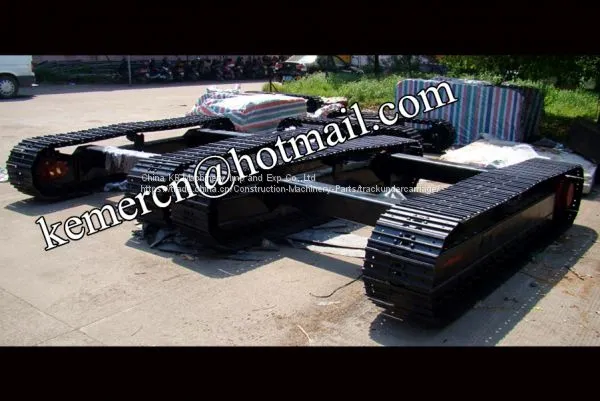

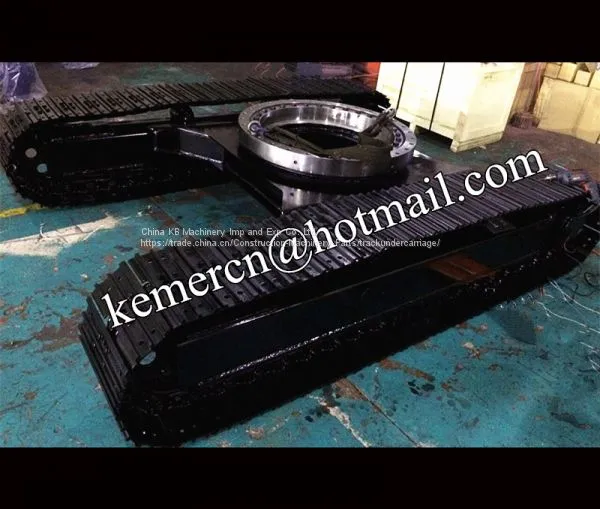

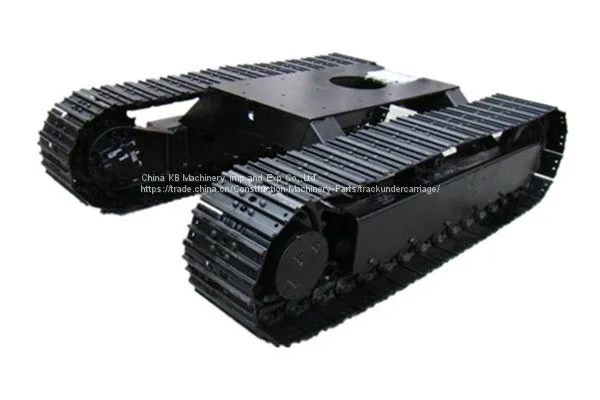

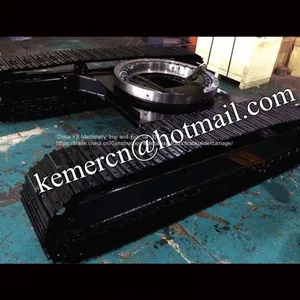

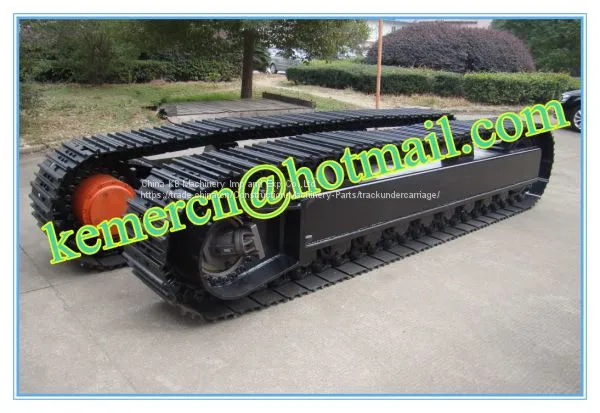

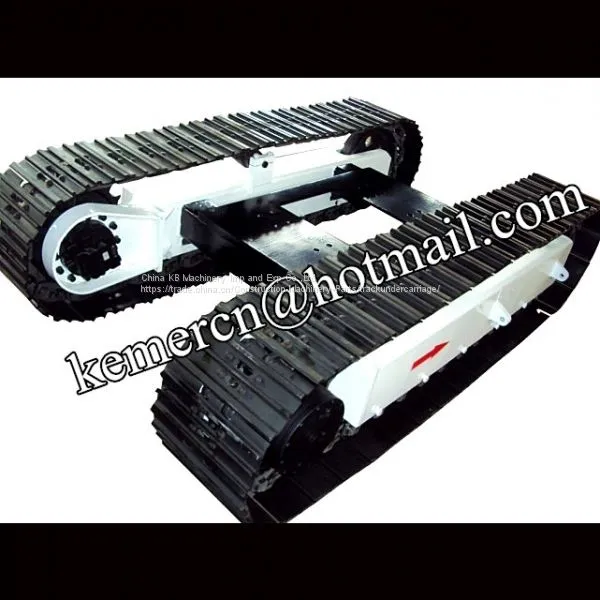

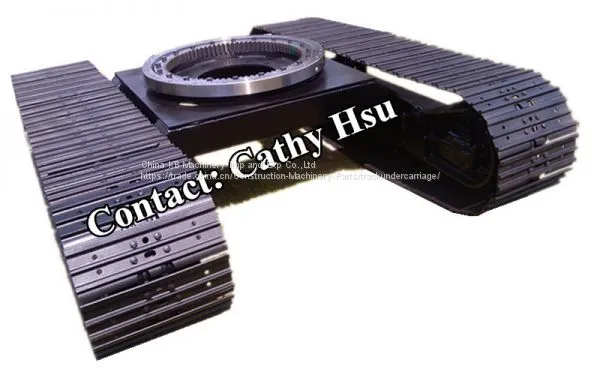

Picture of undercarriage for reference
Factory Overview
FAQ
1. Are you the manufacturer or trader?
We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.
2. How long is the delivery?
Usually it is 20 days for the production.
3. What's the warranty of your product?
We can offer you 12 months quality guarantee period after receipt of product.
4. Can you custom make the product?
Yes, all dimensions and specifications can be designed and made based on your requirements.
5. How to order?
To make sure the offered undercarriage is suitable for your application, please offer the following details:
1. Rubber or steel track undercarriage:
2. What is the payload of undercarriage:
Note: it is the weight of machine excluding the weight of undercarriage.
3. length of track undercarriage (mm):
4. width of each side of track undercarriage (mm):
5. height of track undercarriage (mm):
6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):
9. travelling speed (km/hr):
10. climbing capacity:
