Hot sale! wire drawing machine for sale

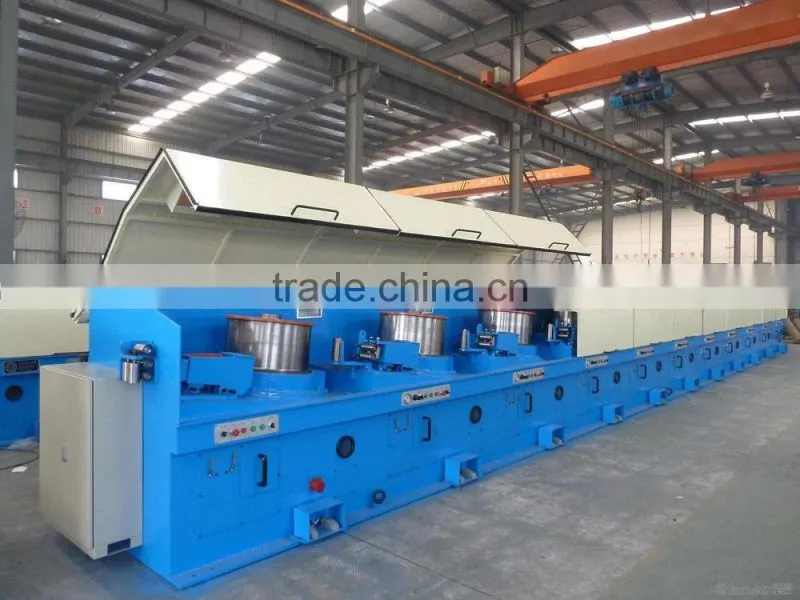

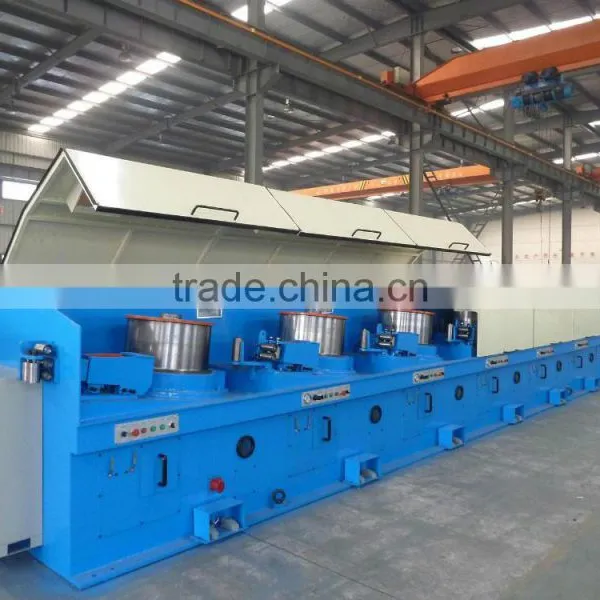

Straight Line Wire Drawing Machine
Straight line wire drawing machine for high speeding
Compared with other wire drawing machine, straight line wire drawing machine provides better drawability, lower frictional contact and less operator interference. In recent years, it is widely applied in Europe and the United States and other developed countries for its good performances.
Advantages:
Lowwork hardening rate
During the manufacturing process, this wire drawing machine adopt no bending, no torsion technologies and strong cooling technologies, all of which make the wire has a low work hardening rate and excellent toughness and ductility.
High efficiency and low consumption
The straight wire drawing machine is famous for its high efficiency and low cost. When it is applied, it will bring huge cost-reduction as a result of its low power consumption, high percent of pass and yield rate.
Properties:
Equipment capacity: Maxi Line Diameter 6.5mm, tensile strength ≤ 1350MPa; mini outlet diameter 1.2mm.
Maxi drawing speed: 720m/min.
Braking capacity: under extreme speed, normal braking ≤ 50s, rapid braking ≤ 15s an emergency braking ≤ 3s.
Coil methods: spool payoff machine or trunk wire rewinding machine.
Features
Mechanical characteristics
Main transmission adopts high-precision hard-toothed gear box, of which unique manufacturing process insures no oil leak at least in 3 years.
Surfacing (build-up welding) with the drawing drum leaves no groove in 3 years.
Main transmission parts should pass the dynamic balance test.
Functions:
The equipment is equipped with a number of functions, including man-machine interaction, over-temperature protection for motor, water pressure abnormalities, full foot alarm and fault display, etc.
Application:
Straight line wire drawing machine is available for drawing welding wires (flux cored wire, submerged-arc welding wire, pas-shielded welding wire), steel wires (low, medium and high carbon steel wire), ss wire, spring wire, prestressed steel wire, hose wire, tyre wire, steel cord and electric wires (copper wire, aluminum wire) and allow steel wire and other metal wires.
Parameters:
Spec |
Draft |
Max inlet diameter |
Min inlet diameter |
capacity of electric motor |
Max speed |
Noise level |
350 |
6-10 |
Φ 3.5mm |
Φ 0.6mm |
7.5-11KW |
20M/s |
80-82dBA |
400 |
6-10 |
Φ 4.2mm |
Φ 0.75mm |
11-15KW |
20M/s |
80-82dBA |
450 |
6-11 |
Φ 4.8mm |
Φ 1.0mm |
15-22KW |
18M/s |
80-82dBA |
500 |
6-12 |
Φ 5.0mm |
Φ 1.2mm |
22-37KW |
18M/s |
80-82dBA |
560 |
4-13 |
Φ 6.5mm |
Φ 1.4mm |
22-45KW |
18M/s |
80-83dBA |
600 |
4-13 |
Φ 7.0mm |
Φ 1.6mm |
22-55KW |
16M/s |
80-83dBA |
700 |
4-9 |
Φ 8.0mm |
Φ 2.2mm |
45-75KW |
12M/s |
80-83dBA |
900 |
6-10 |
Φ 14mm |
Φ 4.0mm |
75-110KW |
10M/s |
80-83dBA |
1200 |
1-9 |
Φ 16mm |
Φ 5.0mm |
90-110KW |
8M/s |
80-83dBA |
