Manufacturing special-shaped steel grating/ steel deck grating/floor grating price

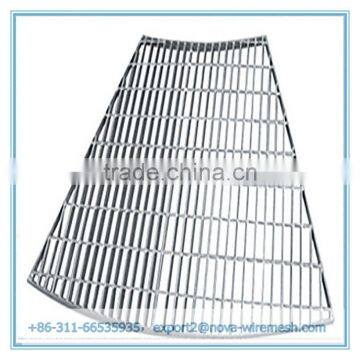

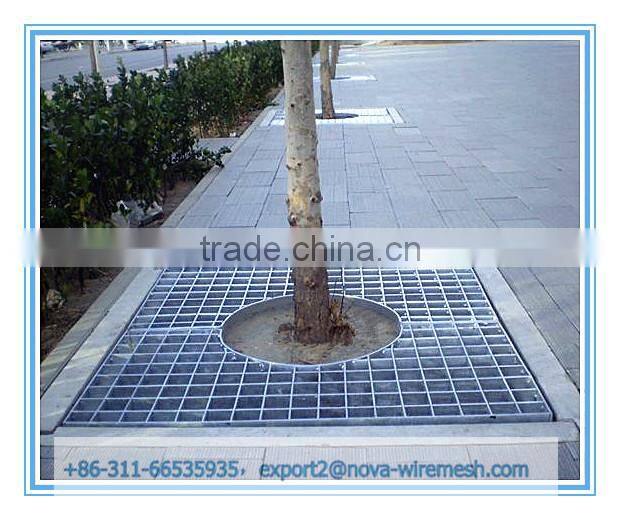

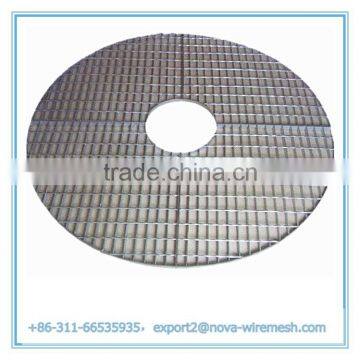

Compared with ordinary steel grating, special-shaped grating / steel deck grating is a kind of steel grating product with irregular shape, which is designed and manufactured according to different environments of different customers. We produce special-shaped grating / steel deck grating product of irregular shape, such as round shape, fan shape, ladder shape, polygon, notched shape etc. according to your demands.
Special-shaped steel grating/ steel deck grating/ floor grating
material: Low carbon steel (CN: Q235, US: A36, UK: 43A), stainless steel 304, 304L, 316, 316L etc.
Special-shaped steel grating/ steel deck grating/ floor grating
feature:
Special shaped grating is steel grating processed into irregularly shapes or designs to meet various application conditions. Steel grating can be made or assembled into round, trapezoidal, semicircular, fan-shaped.
Special-shaped steel grating/ steel deck grating/ floor grating
finishes: Electro galvanized , hot dipped gavanized, PVC/PE coated according to the difference surface treatment.
Special-shaped steel grating/ steel deck grating/ floor grating
application:
Special shaped steel grating is suitable for building materials, power plants, boilers, shipbuilding, petrochemical, chemical and general industrial plants, municipal construction and other industries.
Special-shaped steel grating/ steel deck grating/ floor grating
specification:
Bearing bar |
20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
Bearing bar pitch |
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
Cross bar |
5x5, 6x6, 8x8mm (twisted bar or round bar) |
Cross bar pitch |
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
Surface treatment |
Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
Flat bar type |
Plain, Serrated (tooth-like), I bar (I section) |
Material standard |
Low carbon steel (CN: Q235, US: A36, UK: 43A) |
Special-shaped steel grating/ steel deck grating/ floor grating

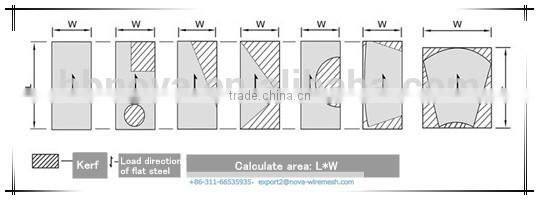

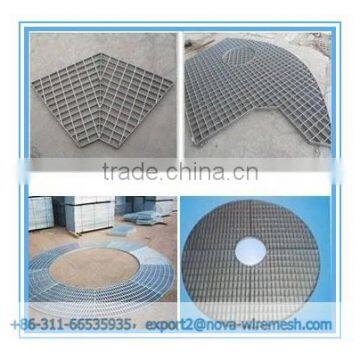

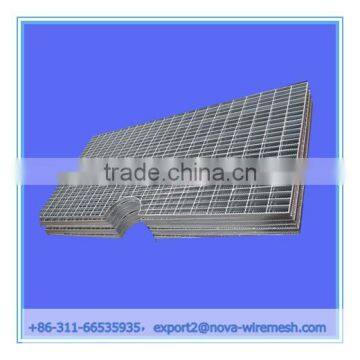

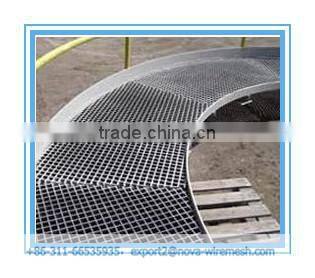

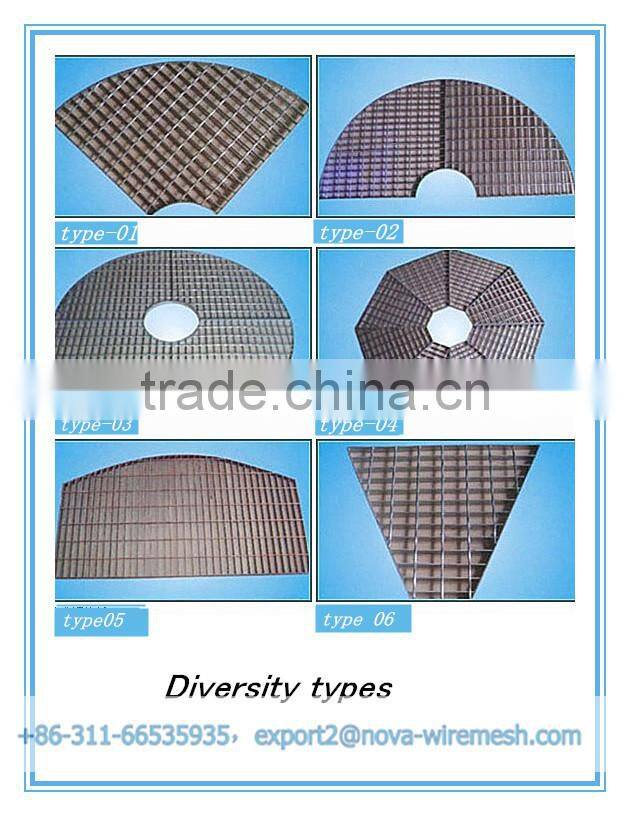

diversity shapes:
We produce special-shaped grating / steel deck grating product of irregular shape, such as fan shape, round shape,
ladder shape, polygon, notched shape etc. according to your demands.
Special-shaped steel grating/ steel deck grating/ floor grating

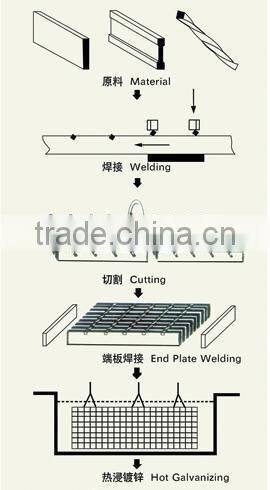

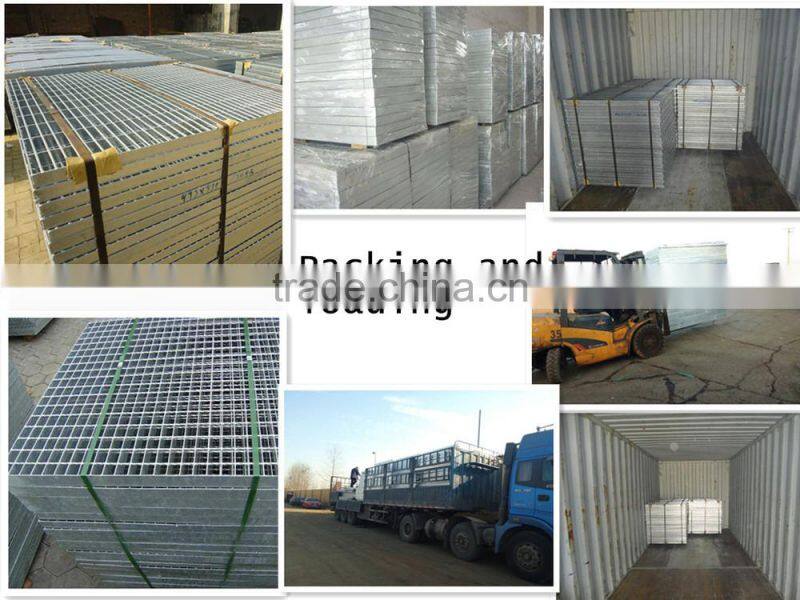

process:
As the special specification and irregular shape, the packaging of deformed steel grating isusually in bulk or strap bundling according to the situation of customers. If the quantity is not much, and the customer doesn’t need fork lift to unload, bulk package will be much easier. On the other hand, if it’s in big quantity and fork lift is required, strap bundling will be better. In a word, it’s all for the convenience of customers and the protection of goods in transit

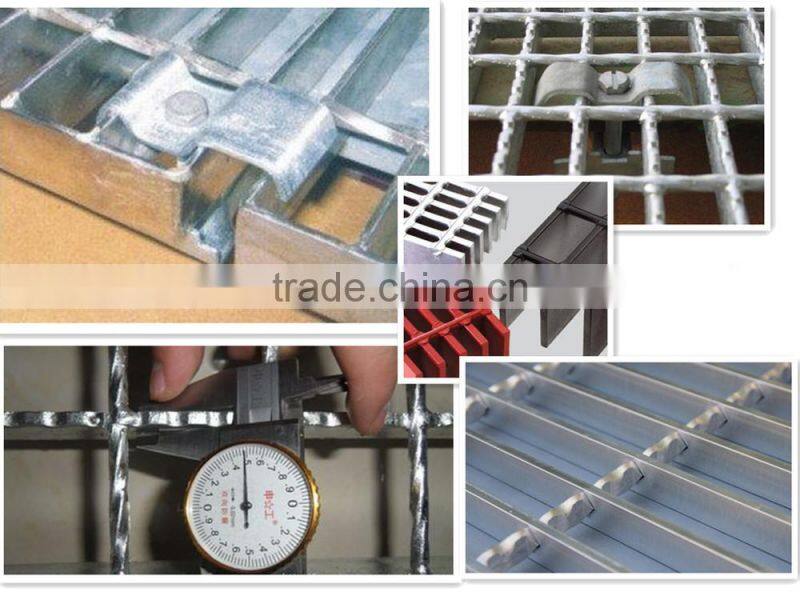

Speccial-shaped steel grating/ steel deck grating/ outdoor steel grating stair treads
details:

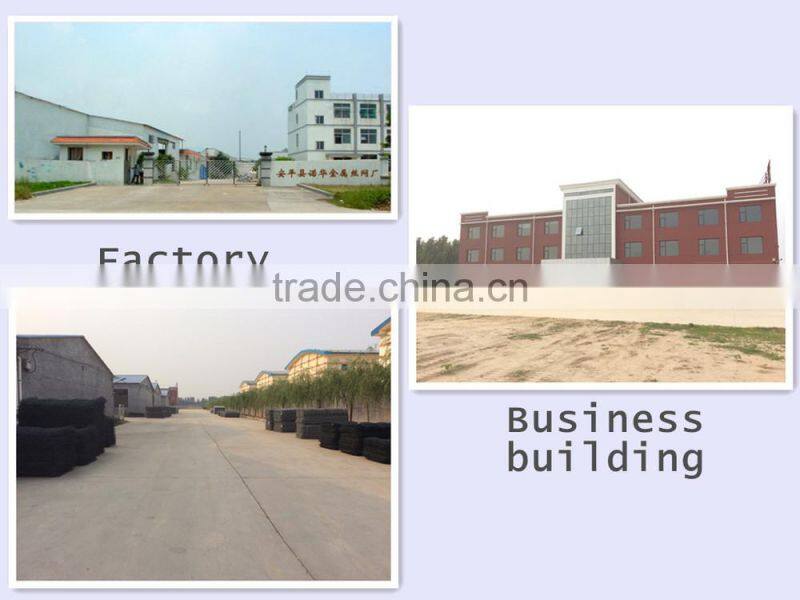

Hebei Nova Metal Wire Mesh Products Co., Ltd (Original name is Anping Nova wire mesh products factory) is a professional manufacturer of metal wire meshes. Nova was founded in 1999, located in the famous "Chinese Screen town" - Anping West Industry Developing Zone, which is about 220km to Beijing and 270km to Tianjin port.
Our products include 6 series, they are: Gabion series, which include gabions, gabion boxes, reno mattresses; Fence series, which include chain link fence, perforated metal fence, temporary fence; Guardrail series, which include galvanized guardrail, power coated guardrail, W beam guardrail, three-Beam guardrail; Stainless steel basket and filter series which include stainless steel basket for sterilization or cleaning, filter, cylinder filter; Steel grating series which include galvanized steel grating, stainless steel grating, anti-slip steel grating; Welded wire mesh series, which include galvanized welded wire mesh, PVC coated welded wire mesh, stainless steel welded wire mesh, Holland wire mesh and other products. Except for products above, we also can supply metal wire, barbed wire, metal springs and wall ties, wire mesh machinery to customer.
Our products are widely used in petroleum, chemical, research, construction, medicine, aviation, aerospace, road, railway, machinery, electronics, textiles, metallurgy, mining, farming and other fields.
Our company also can produces wire mesh products based on customer’s requirements .
The entire team at Nova metal wire mesh is dedicated to provide service, qualified products and competitive pricing. Our principle is "To pursue distinguished quality, exceed customer expectations ".
We wish to establish long-term win-win partnerships with both domestic and foreign customers. Nova metal wire mesh is happy to be of service to you now and in the future.
