2017 large spraying range and high pressure pump garden air blast sprayer
The brief introduction of our air blast sprayer
The air-assisted fog cannon sprayer takes on the unique functions and roles on condition of different industries and working targets. It can be widely used not only in agriculture, forestry, pest- control and water-spray for road protection forests, but also in water fog spray dedusting for coal yard, ore yard, slag yard, iron ore stockyard, power plants, raw materials plant, port, shipping coal, house demolition site, construction sites and so on.
The features of our air blast sprayer
1. Professional manufacturer with over 15 years' experience, high quality, best service and competitive price, offer multiple choices of product to meet different requirements.
2.Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed.
3. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust.
4. Flexible power: three-phase 380V and diesel generator power supply optional
5. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.

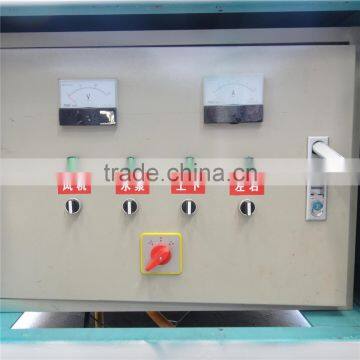

6. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation.
7. Compare to tank car, water consumption save 70% ~80%, wide coverage area
The basic parameter of our air blast sprayer
| Model | NYQY-50 | NYQY-60 | NYQY-80 | NYQY-100 | NYQY-120 | NYQY-150 | NYQY-200 |
| Max Throw(M) | 50 | 60 | 80 | 100 | 120 | 150 | 200 |
| no wind | |||||||
| Coverage Area (M2) no wind | 6000 | 7000 | 13000 | 20000 | 29000 | 45000 | 62000 |
| Volume Flow (Adjustable) | 60-118 | 100-160 | 150-200 | 160-240 | 160-300 | ||
| (L/min) | (L/min) | (L/min) | (L/min) | (L/min) | |||
| Fog Droplet Size (Adjustable ) | 30-150µm | 20-200µm | 30-300µm | ||||
| Water Pressure (Mpa) | 2.0-3.5Mpa | 2.5-3.5Mpa | |||||
| Power Supply | 3-Phase,380V/50HZ(according to different national conditions) | ||||||
| Control Method | Remote Control | ||||||
| Horizontal Rotation Angle | 320° | ||||||
| Pitching Angle | -10°~45° | -10°~40° | |||||
| Applicable Environment Temperature | -30℃~+45℃ | ||||||
| Color | Green, Orange, Grey, Blue or customized | ||||||
The different types of our air blast sprayer

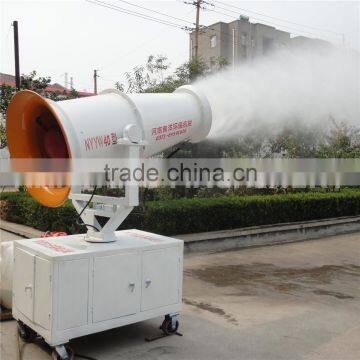

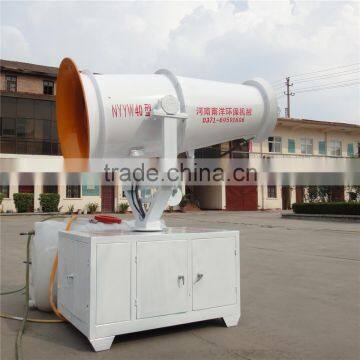

The fixed type

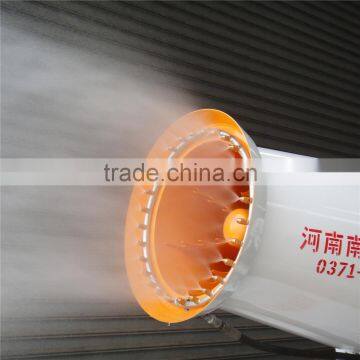

The structures of our air blast sprayer
The Advantage of ourair blast sprayer
1. The sprayer producted by Nanyang Machine has the advantages of wide cover range, good penetrability, wide coverage, high working efficiency, high spray speed, and it sprays smaller fog particles which is easy to absorb dust particles when collide with dust and can quickly achieve dust control when used to the yard easily to produce dust;
2. Controlled by program , remote operation ( cab-operated), simple operation, wide range of applications:
Long range, penetrating well; It can achieve spraying with low volume. Saving water ; high efficiency;
3. When spraying the dust of the yard , it can easily fully contact with the floating dust and generate damp mist by combining dust to mist. so that the dust settled fast and control drift of dust effectively.
The usage of our air blast sprayer
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
Air blast sprayer for naked waxing coat ;small one can be put into a 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship for water sprinkler truck
The order process of our air blast sprayer
Please confirm below details before you place the order:
1) Application area, special requests
2) Quantity
3) Payment terms(Port and type of shipping)
4) Kindly provide your detail contacts(name, duty, company name& address, telephone number and post code etc., the more detailed, the better!)
5) The import licenses and other certifications for custom clearance
Pre-sales Service of our air blast sprayer
Customization:
For any special requests, please go to ask us for the details, we can customize the products for you if your order quantity is considerable! (Such as spare parts, water tank, material, output, pump.)
After-sales Service of our air blast sprayer
1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail.
2.Special Operation and maintenance vedio guide for the Customers.
3.Technical person work-site commission service support.We can send engineers to support you to install large sprayer machine.
4.Help you do worker training
5.On-line support every day.
Since 1996, professional manufacturer over 15 years experience on specialized in designing and manufacturing sprayers in China. Manufacturing according to the ISO9001:2008 quality control system guidelines.We have developed the national largest dust suppression sprayer in environment protection industries. Products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
1.Question:Are you a air blast sprayer factory or trading company?
A: We are a factory since 1988.
2. Question: How long can you guarantee your products and their parts?
Answer: We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.
3. Question: How about your company strength?
Answer: We have accumulated nearly three decades of experience in producing and sales on dryer equipments,which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.
4.Question: What's your biggest advantage?
Answer: Obviously, it is professional and dedicated.
Add: Sihou Street, Gongyi City, Henan Province, China
Tel: +86 371 6456 9297
Fax: +86 371 6435 5035
Mob: +86 155 3813 5336
Web: Http://
Skype: nanyangjixie06
