Youcan good price wood log crushing machine/wood hammer mill/tree branch grinder
Introduction
1. The machine is used to crush woog logs, wood lumps, wood branches,
tree roots, straw, stalk etc into smaller size.
2. There are two feed inlets for materials of different sizes.
3. It is mainly consisted of upper&lower engine body, side discharging
outlet, centre rotor, low pressure fan, underframe etc.
4. It is an ideal equipment in line of producing various wood products
such as wood blocks, wood pellets, biomass briquette etc.
Features
1. Double layer case, external case is made of thicken steel plate, interior
case is made of wear-resistant scaleboard.
2. Centre rotor is made of moving blade, fixed blade, main axis and axis
pin.
3. Compact structure, easy operation, high efficiency.
4. Automatic feed system can be added according to customer`s demands.
Technical Parameters
Model |
YCSFJ-600 |
YCSFJ-800 |
YCSFJ-900 |
YCSFJ-1000 |
YCSFJ-1200 |
Power (kw) |
22 |
30 |
37 |
45 |
55 |
Rotating speed (r/min) |
2600 |
2600 |
2400 |
2400 |
2400 |
Capacity (kg/h) |
800-1200 |
1800-2000 |
2000-3000 |
3000-4000 |
4000-6000 |
Weight (kg) |
1300 |
2000 |
2800 |
3500 |
4500 |
Dimension (m) |
2.5*2*1.2 |
2.6*2.1*1.5 |
2.8*2.2*1.5 |
3*2.5*1.7 |
3.4*2.8*2 |

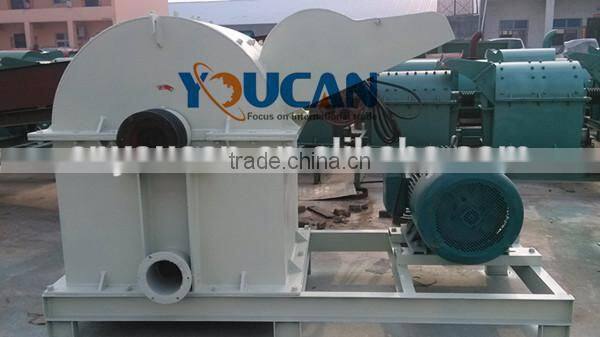

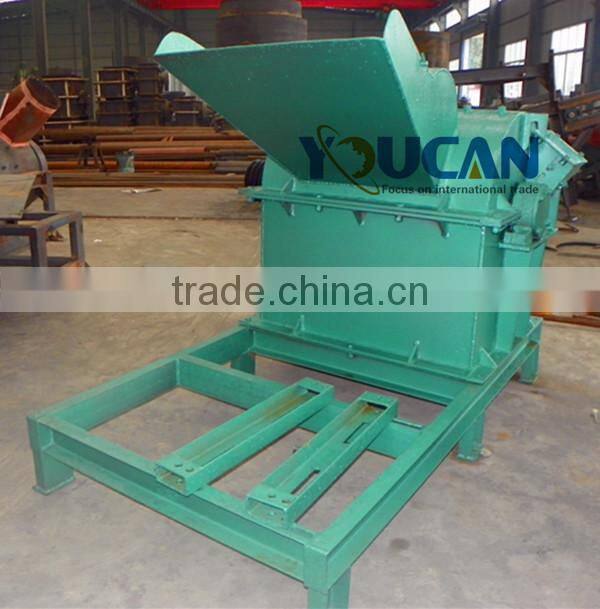

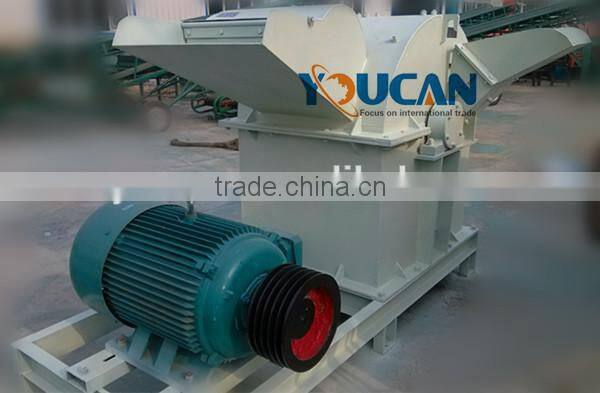

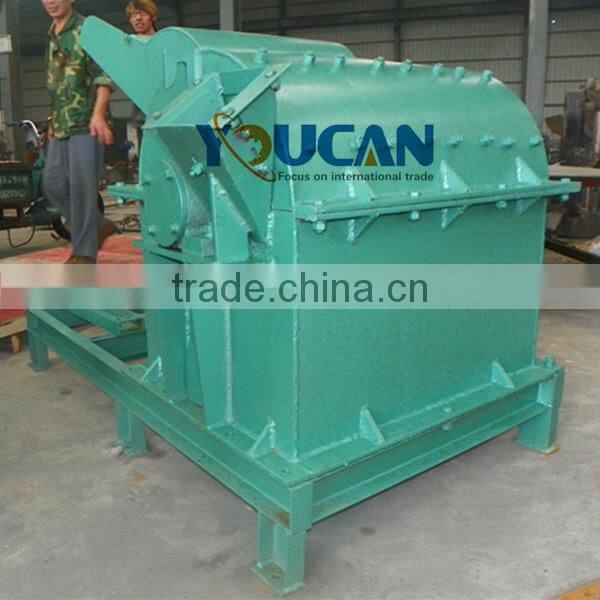

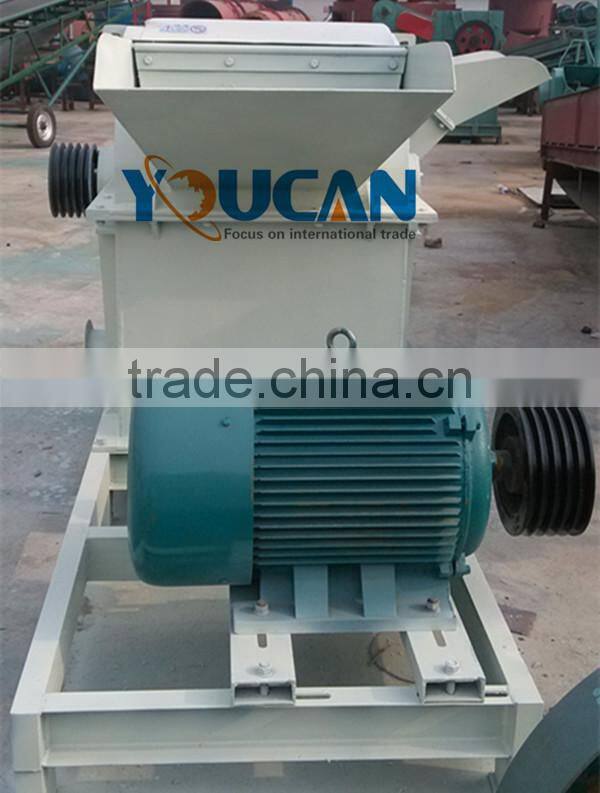

Pictures of Wood Log Crushing Machine

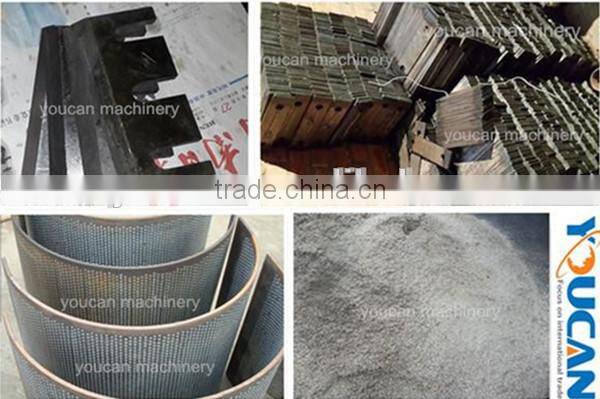

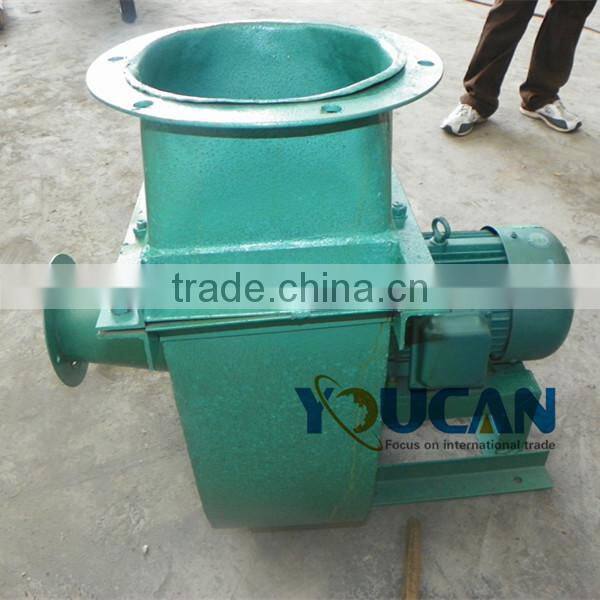

Spare Parts

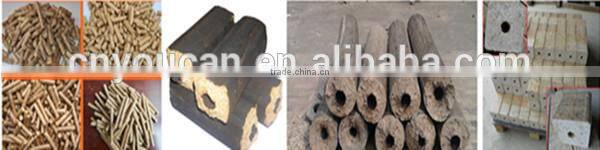

Final Effect

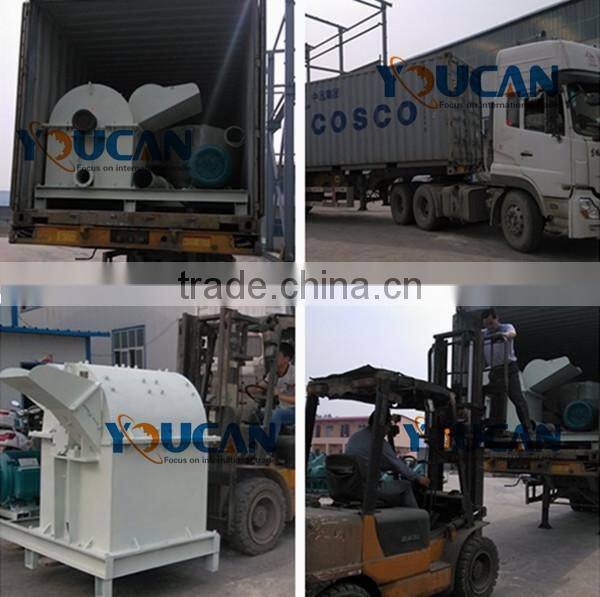

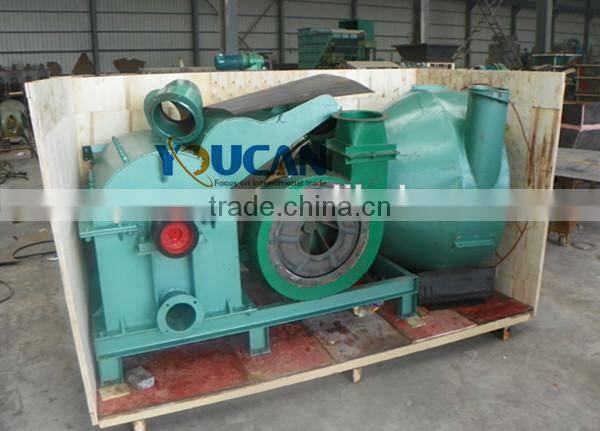

Packaging and Shipping
More details please feel free to contact me.Thank you!
