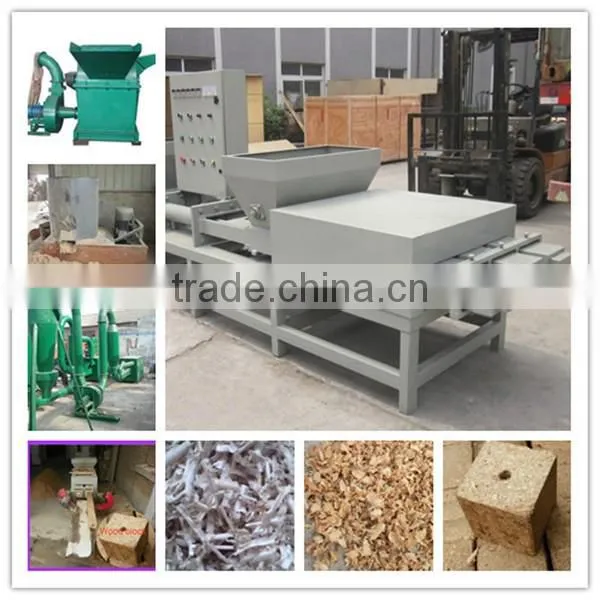

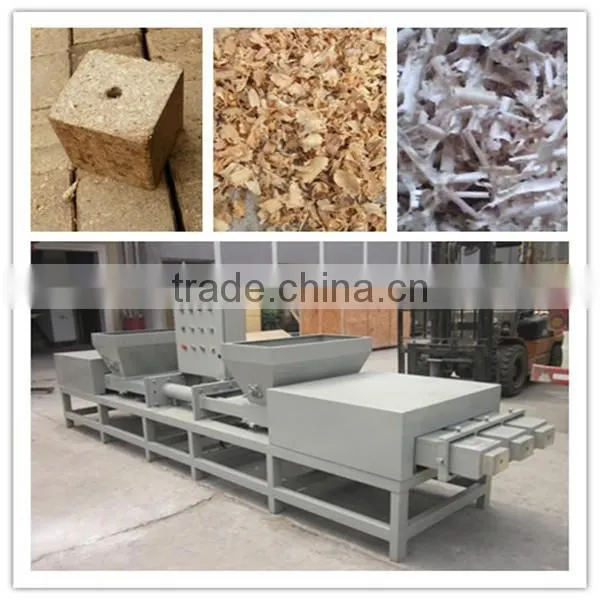

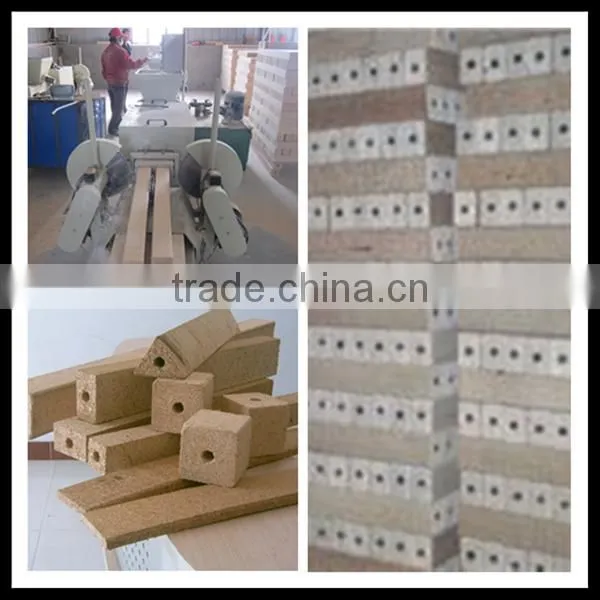

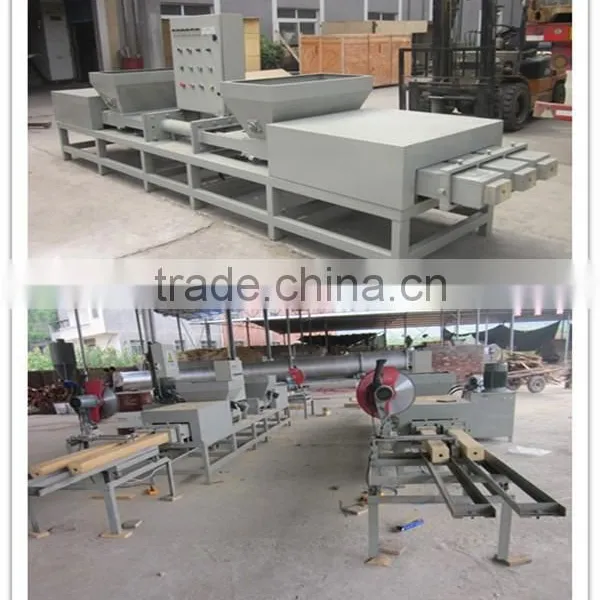

wood sawdust block making machine /wood sawdust block press machine
1)Equipment disposition
Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each. (dryer, gluing machine, crusher and so on supporting facility customer buys in addition).
2)Personnel disposition
Production personnels 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
3)Production cycle:
After confirmation order form and payment advanced payment, 40 super craftsmen ship factory delivery.
4)Equipment investment recoupment period: 10— 12 months.
post-sale service:
Our factory is responsible for the technical training, and provides the consummation the post-sale service.
5) Technical Parameters
| Model | Double Head | Four Head | Six Head |
| Size | 4900*660*1800 | 4900*800*1800 | 4900*940*1800 |
| Capacity | 2-3m3/24h | 4-5m3/24h | 6-8m3/24h |
| Glue water amount | 100-120kg/m3 | 100-120kg/m3 | 100-120kg/m3 |
| Density | 550-600kg/m3 | 550-600kg/m3 | 550-600kg/m3 |
| Weight | 1000kg | 1500kg | 2200kg |
| Power | 12kw | 16-18kw | 24kw |
6) Advantage of the produced Wood Sawdust Block Making Machine
1. With smooth surface
2. Water proof(the block will not crack even in water for 48 hours)
3.Contact nail very well

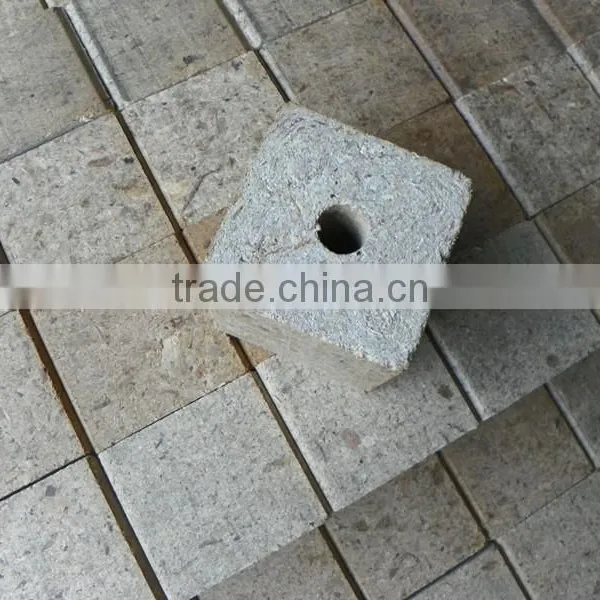

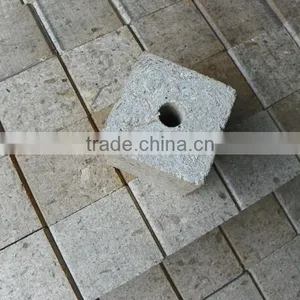

4.The produced block is in intensity of 1.07mpa, with vertical force of 1590N and horizontal forceof 1660N
5. It is the perfect to be used as the block for the tranport wood pallet
7) Raw material and raw material requirement
1.The raw material should be wood waste materials, such as wood shavings,sawdust and so on.
2. moisture: 8%-10%
We will projects and technical parameters according to the users' requirements.
1) Medium-sales services: we guarantee to choose raw materials in the process of production strictly according to contract requirement. Free-on-the- spot guidance, installation as well as customer training about equipment maintenance and correct application methods are available.
2) After-sales service: We will establish a complete user files to achieve one file for each customer. We can provide accurante and fast service for customers.
Ms.Vivien wang
Export dept.
-------------------------------------------------------------------------------------
Zhengzhou youcan Import&Export Trading Co., Ltd.
Add:5 Floor,Sanjiang Building,Nanyang Road,Zhengzhou,China
Tel:086-0371-63300228
Fax:086-0371-60936230
Mobile:+86-15981900215 (Whatsapp)
Skype:52
Web:www.youcan.en.china.cn
Send Inquiry to This Supplier
