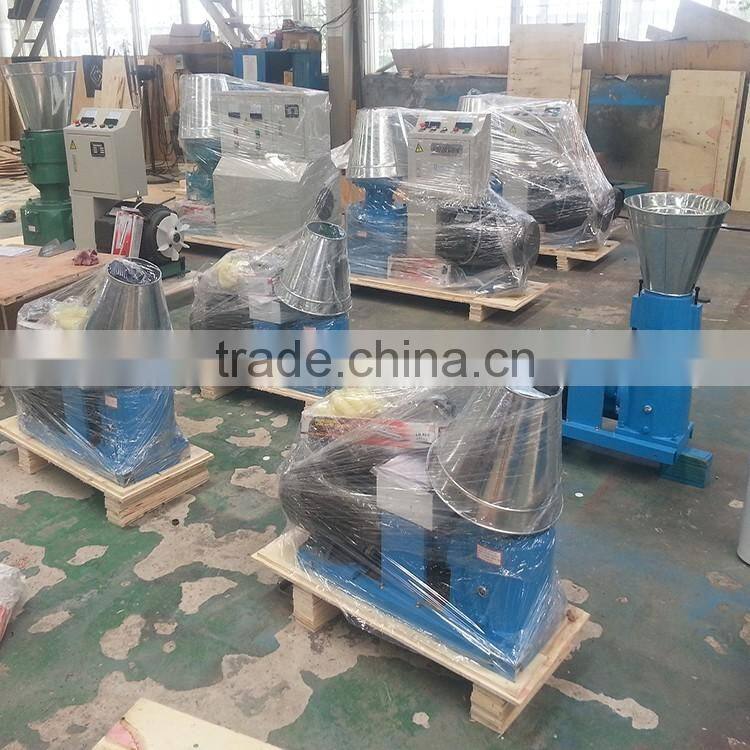

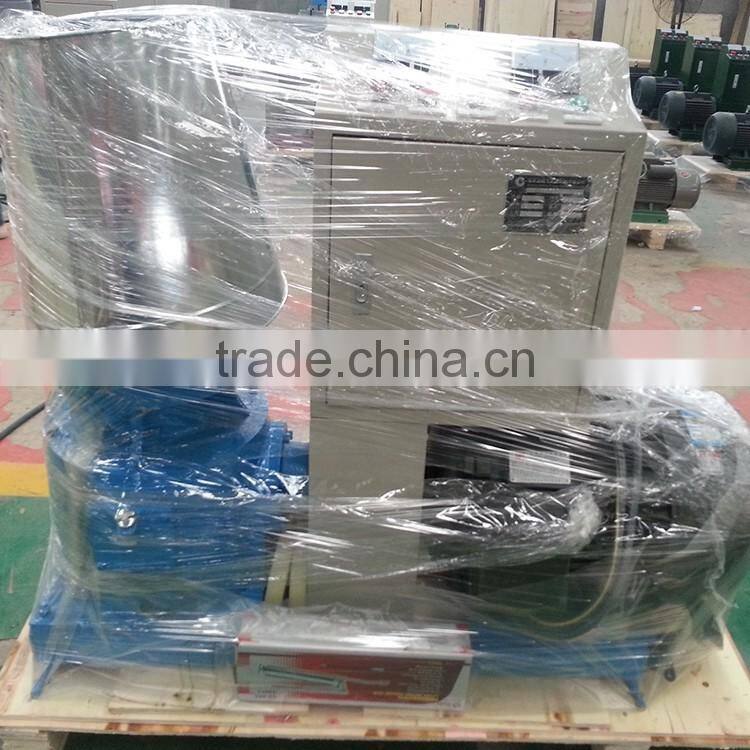

China Supplier Best Selling China complete wood pellet line
Brief Introduction:

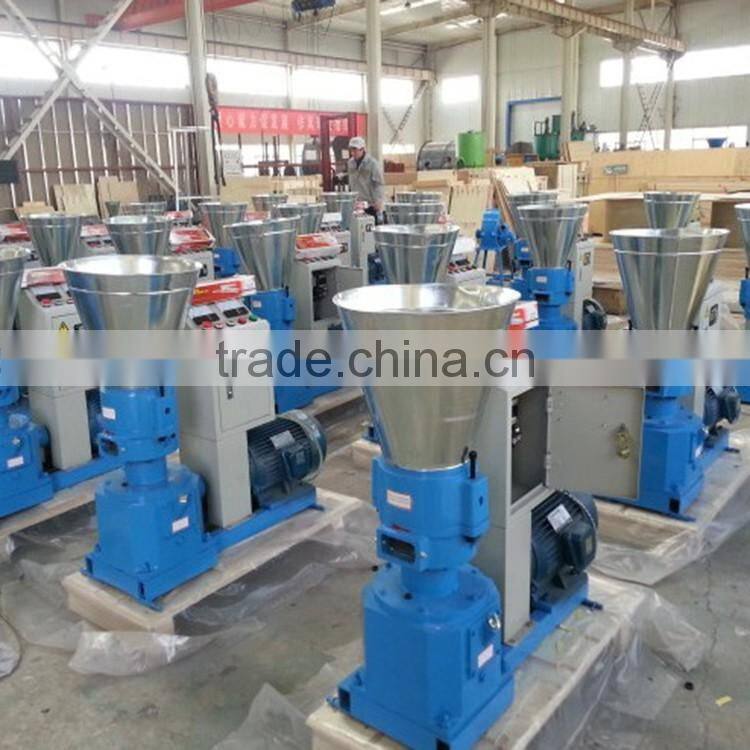

The ZLSP D-Type series of complete wood pellet line,a kind of small pellet machine, which are made of a set of press roller, flat die, feeder and gear bearings equipped with electrical motor, diesel engine, tractor and gasoline powerd. You can select a proper flat die small wood pellet mill depending on your practical needs. The pellets are made from powder materials under great force created between flat die and press rollers. For instance, you can make own pellets with flat die small wood pellet mill at home or on the farm. Moreover, our ZLSP-D type flat die small wood pellet mill can process a wide range of raw material like agro-forestry wastes and other biomass materials into biomass pellets.
Three Types of Pellet Mill Machine as following:

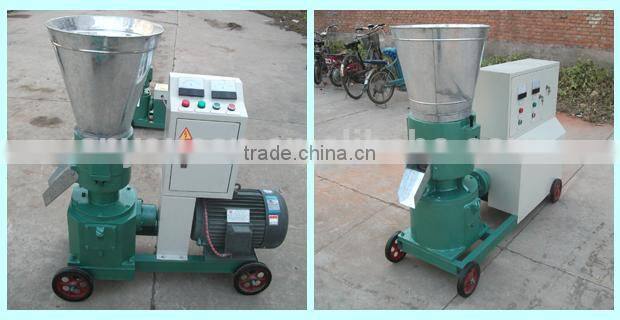

1.Electric Motor
| Model | Capacity | Power | Net Weight | Outside Dimension(mm) |
| ZLSP-150B | 50-100kg/h | 3phase5.5kw | 95kg | 800*450*700 |
| ZLSP-200B | 80-120kg/h | 3phase7.5kw | 200kg | 1000*480*930 |
| ZLSP-230B | 120-200kg/h | 3phase11kw | 290kg | 1180*540*1000 |
| ZLSP-260B | 160-250kg/h | 3phase15kw | 320kg | 1240*540*950 |
| ZLSP-300B | 250-400kg/h | 3phase22kw | 350kg | 1300*560*1100 |
| ZLSP-150C | 60-110kg/h | 3phase5.5kw | 105kg | 1000*480*780 |
| ZLSP-200C | 80-120kg/h | 3phase7.5kw | 210kg | 1050*550*830 |
| ZLSP-230C | 120-200kg/h | 3phase11kw | 290kg | 1200*560*950 |
| ZLSP-260C | 160-250kg/h | 3phase15kw | 340kg | 1240*580*1000 |
| ZLSP-300C | 250-400kg/h | 3phase22kw | 425kg | 1300*620*1100 |

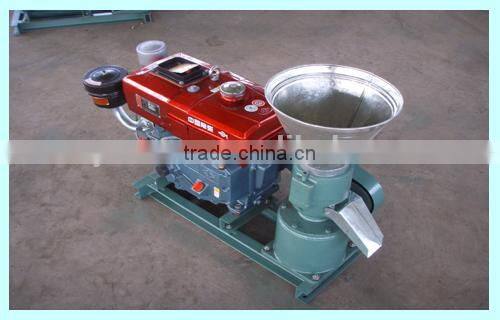

2.Diesel Engine
| Model | Capacity | Power | Net Weight | Outside Dimension(mm) |
| ZLSP-150A | 50-100kg/h | 8Hp | 180kg | 1000*500*750 |
| ZLSP-200A | 80-120kg/h | 15Hp | 210kg | 1460*750*900 |
| ZLSP-230A | 120-200kg/h | 22Hp | 280kg | 1560*850*1000 |
| ZLSP-260A | 160-250kg/h | 30Hp | 330kg | 1200*500*1070 |
| ZLSP-300A | 250-400kg/h | 55Hp | 410kg | 1220*600*1000 |

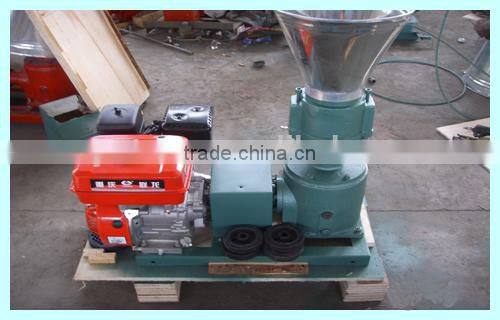

3.Gasoline:
| Model | Capacity | Power | Net Weight | Outside Dimension(mm) |
| ZLSP-150Q | 50-100kg/h | 10Hp | 180kg | 1000*500*750 |

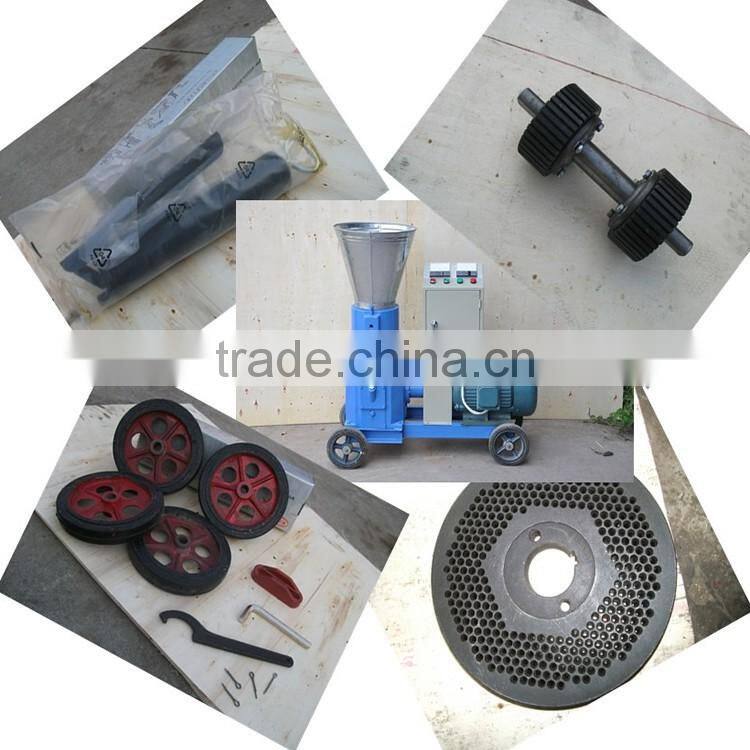

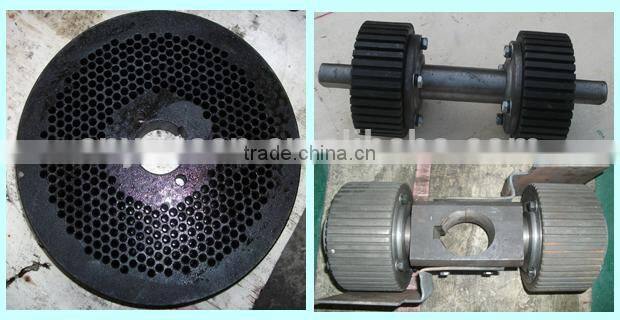

Spare Parts:
• Roller Parts: Rollers are the most important parts for making pellets. The material of roller parts must be anti-bearable and not easy to be broken. The roller is made from precise material of alloy metal. Compared with the traditional roller press , our flat die pellet press has two pairs of rollers that enlarge the capacity of making pellets.
• Die Parts: The flat die has many holes for extruding material into the formation of pellets. The holes of the die have 6-10 mm diameter for your choice, or we can produce different dies as required. Therefore, the flat die pellet mill is more suitable for home use or small scale pellets production.

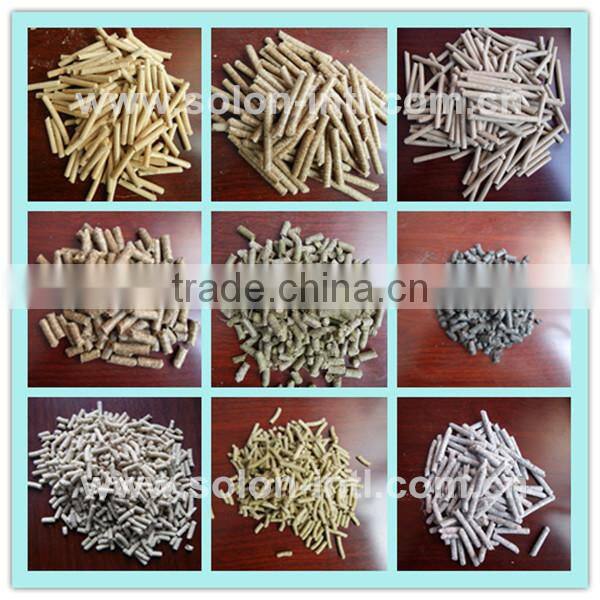

Final Pellets Sample:
|
Service |
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. a, Before sending the machine, we will test and adjust, so you can use directly when you get it. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time. a, Any problems occur while using, professional advice will be offered. |
Zhengzhou YOUCAN Import&Export Trading Co., Ltd. is an International & professional foreign trade company. Our company is located in the largest transportation hub in Asia - Zhengzhou city, with the best human resources in manufacturing industry in central China and the most vital machinery manufacturing base in China.Our company is one professional import and export trading company, referring to wood pellet presser/production line,feed pellet presser/production line and spare parts.Now we have established the good relationship with more than twenty manufacturers in China since found, and our products are sold widely to Europe, USA, Asia, Middle East etc. other countries and districts.We will try our best to meet each customer's requirement. Customer satisfaction is our target. Under the great support of our strong technical team and professional engineers, we believe that we will serve you with the best products that we can make.We are committed to providing fast and genuine services and quality products for our customers. We are sure that we will be your faithful and perfect partner in the future.For more details of our company and products, please feel free to contact us.
1.How does the machine fit our voltage?
Before shipping ,our sales will confirm with the customers about the voltage.
2.How can I buy this machine?
First talk all machine details with our sales person, then talked abt the pice, after confirming the prices,
you can choose the payment terms TT/Escrow/Western Union/Paypal etc.
Then you arrange deposit, after gettting the deposit, we produce the machine.
3.How can I use this machine?
We have english manual when ship the machine.
If you are interested in this machine,pls contact me freely.
