1. Features of radiant barrier reflective bubble foil insulation
The bubble foil insulation is an option of reflective foil insulation keeps heat out in the summer and keeps heat inside in the winter. The reflective foil bubble insulation uses a combination of radiant barrier (reflective foil) along with a single layer of bubble insulation or a double layer of bubble insulation to reflect heat.
Radiant barrier reflective bubble foil insulation , no matter single and double bubble , both function in the same way. They both utilize the principles of air space and radiant barrier to stop heat transfer from one surface to another. They are also both equally effective at achieving a 100% Class 1 vapor barrier.
2. Product parameter of radiant barrier reflective bubble foil insulation
Material Structure: AL/ Bubble /AL | ||
Bubble Size: 10*2.5/10*3/10*4 /10*5 can be choosed) | ||
Bubble Color: white | ||
Roll Szie:1.2m*40M(length can be customized) | ||
PROPERTIES |
TEST DATA |
UNIT |
Thickness |
3 |
mm |
Weight |
240 |
gsm |
Emissivity |
0.03-0.04 |
COEF |
Reflectivity |
96-97 |
% |
Water Vapour Transmission |
0.012 |
g/㎡kpa |
Corrosion |
doesn't generate |
/ |
Tensile Strength(MD) |
13.43 |
Mpa |
Tensile Strength(TD) |
14.58 |
Mpa |

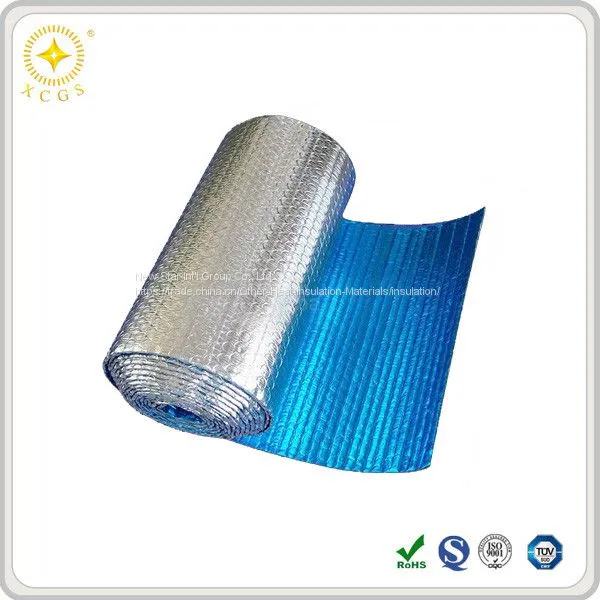

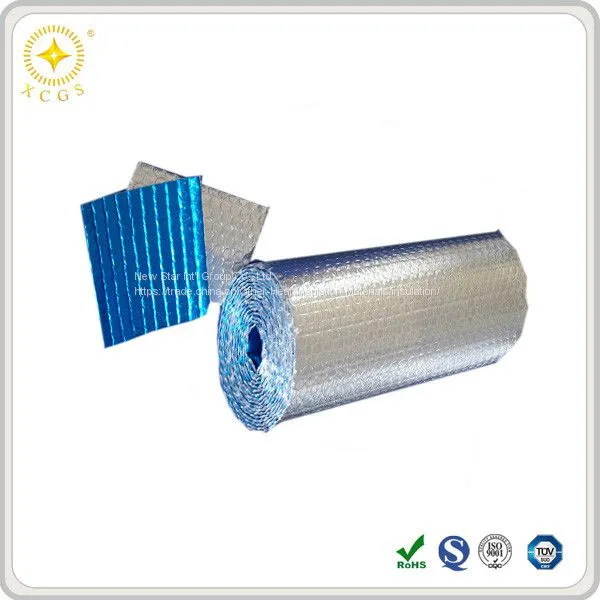

3. Product show of radiant barrier reflective bubble foil insulation
4. Produce line and packaging of radiant barrier reflective bubble foil insulation
5. Testing view of the reflective bubble foil insulation
6. Certifications of our company
7. Where are you installing ?
8. Other relative heat insulation products
9. Our customers
10. Company view
Factory in Suzhou—Suzhou Star New Material Co., Ltd
Self owned independent industrial park located in the lakefront of beautiful TaiLake in Suzhou, covers an area of 25,000 square meters.
Product series: Bubble foil insulation, Foam foil insulation, Woven foil insulation,Paper Foil insulation and so on.
Production lines: lamination, printing, slitting and folding, foil lined production, PE film blowing, handwork, dust-free work shop with 1000 class.
11. FAQ
Q1. What is your sample policy?
A: We have Existing samples to check the quality by free, if you need the same samples as your request, we will quota u the samples cost.
Q2. Do you test all your goods before delivery?
A: Yes, we have IPQC, OQC, and FQC to control the quality.
Q3. What are your main products?
A: We make three series products, heat insulation material ,ESD packaging, postal packaging . Our main heat insulation material are bubble foil insulation, foam foil insulation, woven foil insulation etc.
Q4. Where is your nearest sea port?
A: Our Star Group have three factories in Suzhou ,Shenzhen ,Tianjin , so we have Shanghai ,Shenzhen, Tianjin sea port ,it is very convenient for customer choose the sea port .
