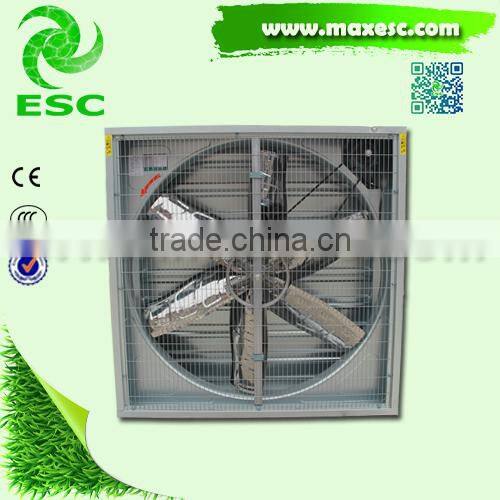

Large Airflow Axial Industrial Exhaust Blower Fan
Exhaust Fan, Box Fan, Cooling Fan, Ventilation Fan, Poultry Fan
Product:
Details:
Specification:
| Serial Number & name | Blade MM | Outline Size MM |
Blade Rotational Speed rpm | Air flow m3/h |
Total Pressure Pa | Noise DB |
Input Power Watt | Rated Voltage |
Thickness MM |
20ft load pcs |
| ESC-710 normal type | 710 | 800*800*370 | 660 | 18000 | 60 | less 60 | 370 | 380 | 370 | 98 |
| ESC-750HE | 750 | 900*900*400 | 630 | 21000 | 65 | less 65 | 550 | 380 | 400 | 76 |
| ESC-900HE | 900 | 1000*1000*400 | 610 | 25000 | 70 | less 65 | 550 | 380 | 400 | 64 |
| ESC-1000HE | 1000 | 1100*1100*400 | 600 | 32000 | 70 | less 65 | 750 | 380 | 400 | 64 |
| ESC-1100HE | 1100 | 1220*1220*400 | 460 | 37500 | 73 | less 70 | 750 | 380 | 400 | 40 |
| ESC-1250HE | 1250 | 1380*1380*400 | 439 | 44000 | 56 | less 70 | 1100 | 380 | 400 | 30 |
| ESC-1400HE | 1400 | 1530*1530*400 | 325 | 55800 | 60 | less 75 | 1500 | 380 | 400 | 21 |

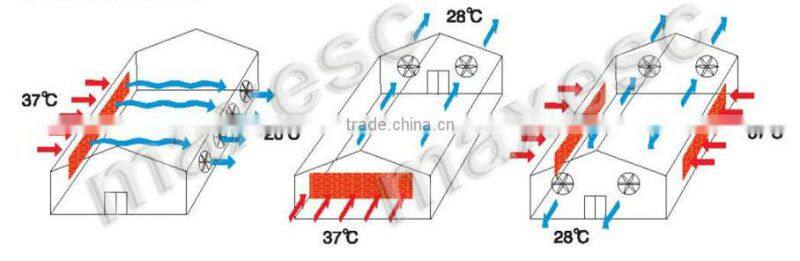

Working Principle:
CE Certificate:

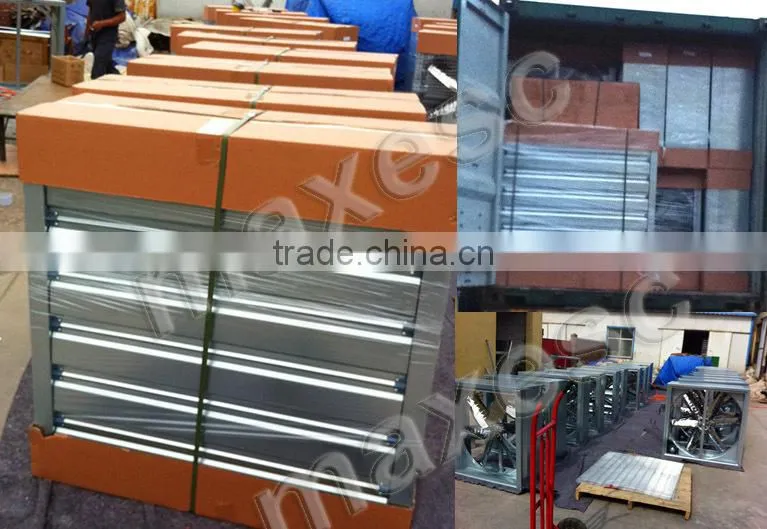

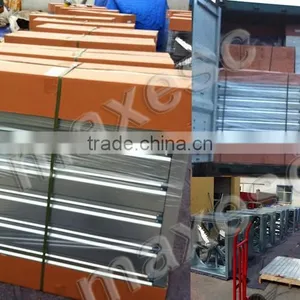

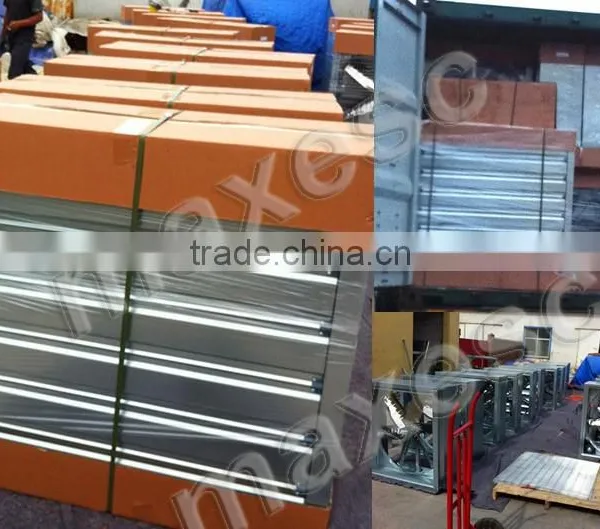

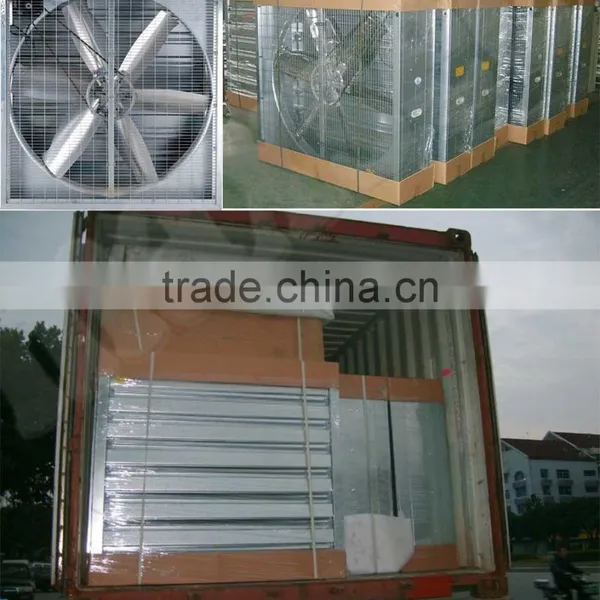

Packaging & Shipping:
Main Structure:
Fainly consists of blad, motor, frame, protect net, bracing cage, shutters. The motor drives
blade to cause airflow and louver window can open and close automatically to keep the dust
from entering.
1, Frame using advanced automatic processing, height precision. Extra-depth zinc coating
frame, corrosion ressistance strong. (frame are made of galvanized board, thickness 1.0mm
galvanizing layer 120G/M2; Blade, 6pieces of blades and all the blades are made by
430/201/304 stainless steel, mirror face. )
2, High-strength aluminum alloy casting wheel, the reasonable perspective of the type, to
reach the maximum airflow. High-precision micro-computer-aided manufacturing system can
make the best of its fans.
3, Five rigorous quality testing proccedures, noise detection, vibration testing, concentric
rotation performance testing, speed of blade testing and the whole fan efficiency detection,
380V special motor.
4, CAD/CAM optimizing design.
FAQ:
A: We have factory with more than 10 years experience.
Q: Why your price more expensive than other Chinese suppliers?
A: Our material we use is much better than other suppliers.
1.For all axial flow fans , and screws all use good quality stainless steel , won't be rusted .
2. For plastic products we all use new material to make sure the products can be long use .
3. All our products we use China famous motor brand , the motor can 1 year guarantee ,
with a correct using , the motor life can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big MOQ and maybe
price will be a little higher . Our normal voltage is 380V 50HZ 3phase .
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you
really want low price we will suggest you choose lower stage product , in our company , we don't have
bad quality products , you can reassure about the quality .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products ,
it's all by your request .
