Industrial Celling Quiet Evaporative Air Swamp Cooler Water Cooling Fan
Advantage:
1, Cut down your electric bill-Only need 8%energy, cost 1/4 of Normal A/C.
2, Environment friendly-use natural water evaporative.
3, Health-Fresh air, ventilation, dust removal.
4, Wide application-use any Industrial(texitle, garment, plastic ceramic etc), commercial(shopping
mall, restaurant, parties etc), and home.
Product:
Details:
Specification:
| Model | ESC31-20T-2 ESC31-20D-2 |
ESC12-20T-2 ESC12-20D-2 |
| Airflow(m3/h) | 20000 | 20000 |
| Air Pressure (pa) | 200 | 200 |
| Output(kw)/h | 1.5 | 1.5 |
| V/Hz | 380/50 | 220~240/50~60 |
| Fan Type | Axial | Axial |
| Fan Speed | single speed | Variable-inverter |
| Water tank (Liter) | 40 | 40 |
| Cooling area(m2) | 100-250 | 100-250 |
| Dimension L*W*H(mm) |
1050*1050*920 | 1050*1050*920 |
| Out let size (mm) | 670*670 | 670*670 |
| Noise (db) | ≤75 | ≤78 |
| Net.wet(kg) | 60 | 60 |
| Controller | Mechanical Switch | Remote+LCD touch screen |
| Max Current | 5A | 5A |
| Water Consumtion | 15-25L/H | 15-25L/H |
| Material | PP | PP |
| Cooling Pad Thickness mm |
100 | 100 |
| Cooling pads spec | 5090 | 5090 |
| Discharge | UP,Down,Side | UP,Down,Side |
| Over current , overvoltage protection |
Yes | Yes |
| LCD Temp display | - | Yes |
| inlet valve auto | Yes | Yes |
| semi-automatic drain |
Yes | Yes |
| Material | Improve newPP which UV-proof,anti- aging,and resistant to deformation. |
Improve newPP which UV-proof,anti-aging,and resistant to deformation. |
| New function- exhaust air |
- | exhaust out smell air and circulate new air inside. |
| 20GP /40HQin unassemble |
33pcs/78pcs | 33pcs/78pcs |

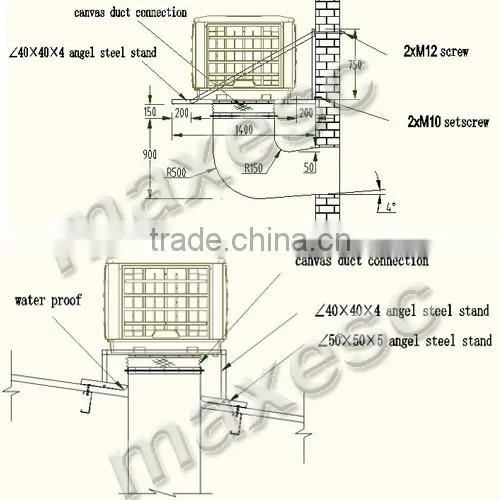

Installation:
CE Certificate:

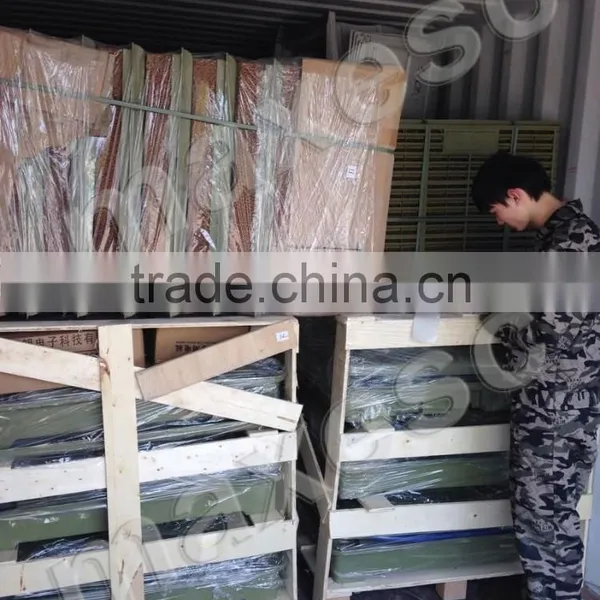

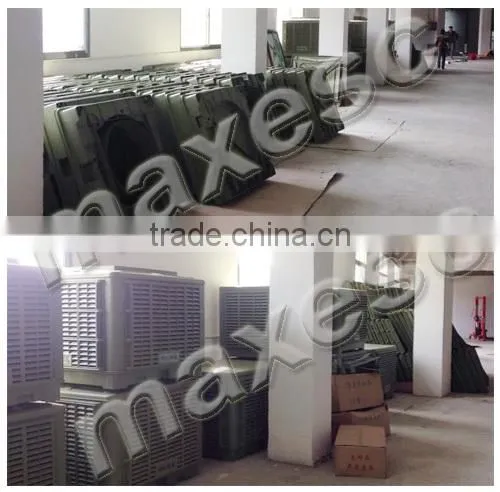

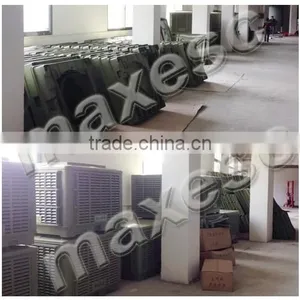

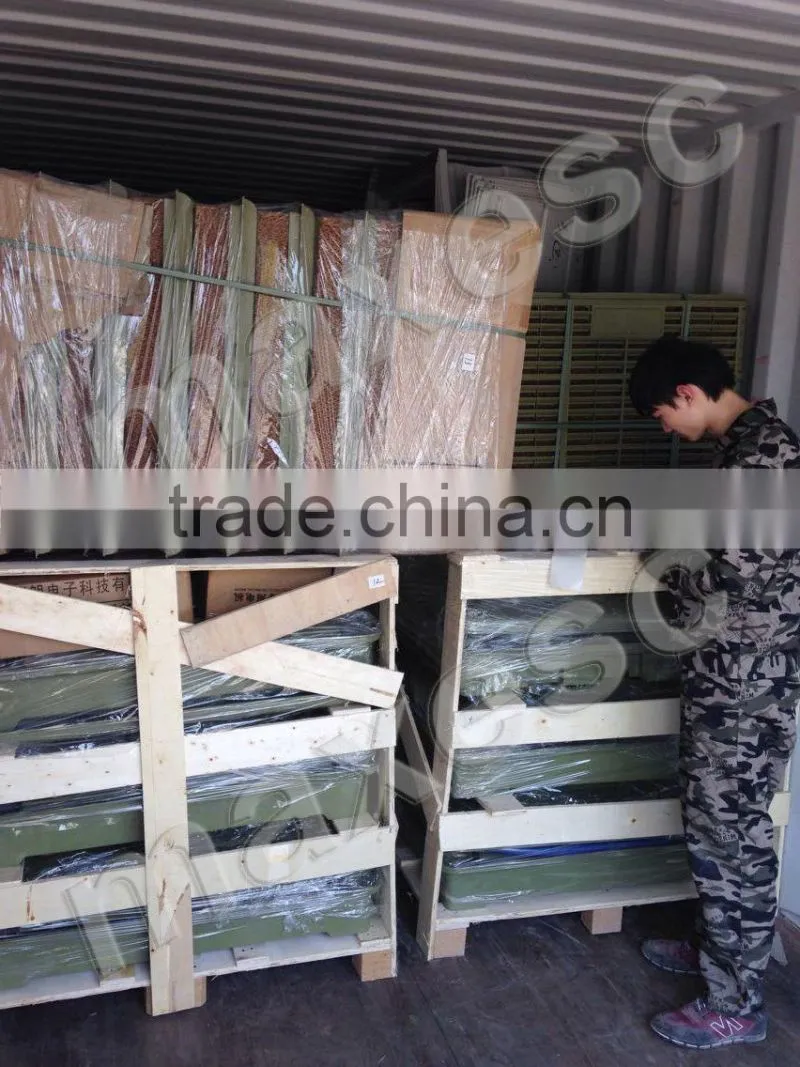

Packing & Shipping & Product Line:

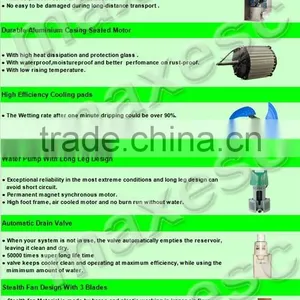

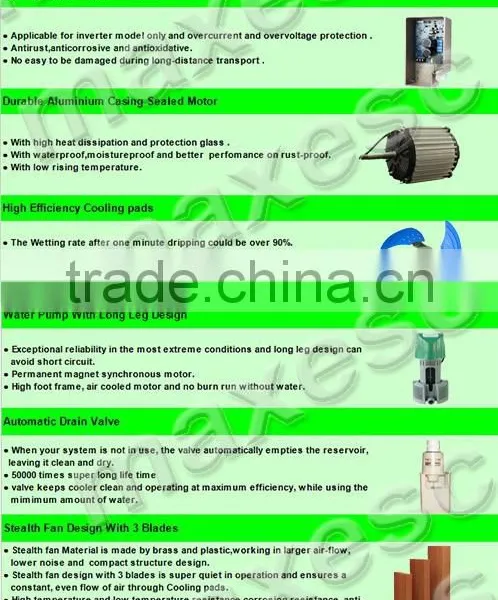

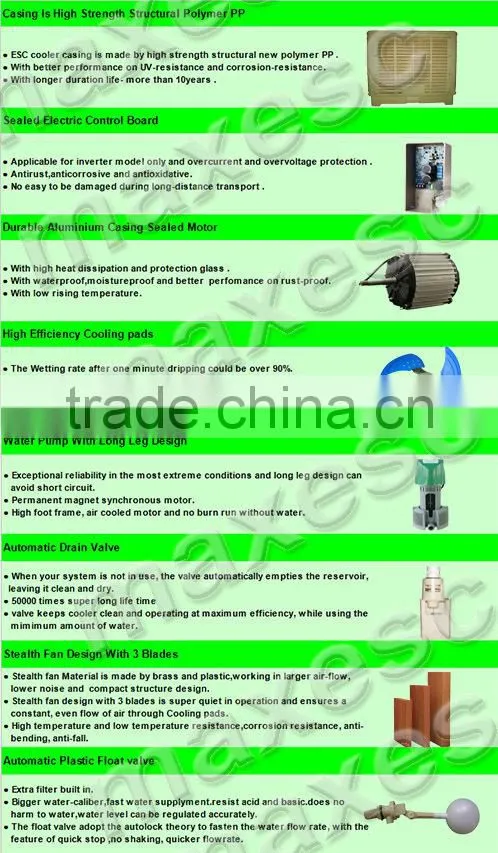

Characteristics :
A. The casing is made of high strength weather ability polymers which is UV-proof,
anti-aging, and resistant to deformation.
B. Different air discharge type(including top, down and side)can meet different
installation requirements of various applications.
C. Using specially designed axial fan, with large airflow, low noise, low energy
consumption and wide applicability.
D. Using high quality aluminum housing motor, with good heat dissipation, high
protection grade, waterproof and moisture-proof.
E. Using automatic control of water system and opean type water distributor, so
water can flow smoothly and distributor is not easy to block.
F. Using highly efficient cooling pads with large evaporation capacity, good cooling
efficiency and easy cleaning.
FAQ:
A: We have factory with more than 10 years experience.
Q: Why your price more expensive than other Chinese suppliers?
A: Our material we use is much better than other suppliers.
1.For all axial flow fans , and screws all use good quality stainless steel , won't be rusted .
2. For plastic products we all use new material to make sure the products can be long use .
3. All our products we use China famous motor brand , the motor can 1 year guarantee ,
with a correct using , the motor life can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big MOQ and maybe
price will be a little higher . Our normal voltage is 380V 50HZ 3phase .
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you
really want low price we will suggest you choose lower stage product , in our company , we don't have
bad quality products , you can reassure about the quality .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products ,
it's all by your request .
