Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Industrial Factory Greenhouse Ventilation Exhaust Fan
US$ 1 - 250
MOQ: 1 Piece
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Greenhouse Water Air Cooler Fan Glass Window Exhaust FanUS$ 1 - 250MOQ: 1 Piece -
Standing Floor Mini Centrifugal Fan Industrial Mist FanUS$ 1 - 250MOQ: 1 Piece
-
36-inch Glass Wall Window Mounted Exhaust FanUS$ 1 - 250MOQ: 1 Piece
-
220v Industrial Roof Extractor Fan 36-inch Exhaust FanUS$ 1 - 250MOQ: 1 Piece
-
Quiet Air Cooler Manufacturing Mini Handy Cooler Air Conditioner Battery FanUS$ 1 - 250MOQ: 1 Piece
Electric Current Type
DC
Mounting
Wall Fan
Blade Material
Stainless Steel
Place of Origin
Shandong, China
Brand Name
ESC ventilation exhaust fan
Model Number
ESC-1250HE ventilation exhaust fan
Voltage
380V
Power
1.1KW
Air Volume
44500m3/h
Speed
1400rpm
Certification
CE
After-sales Service Provided
Overseas third-party support available

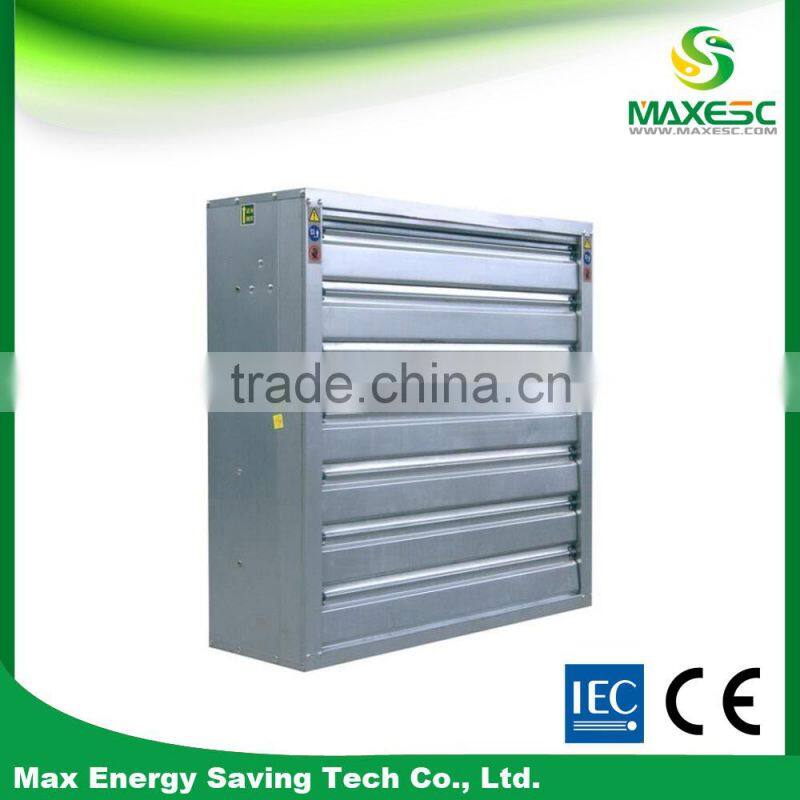

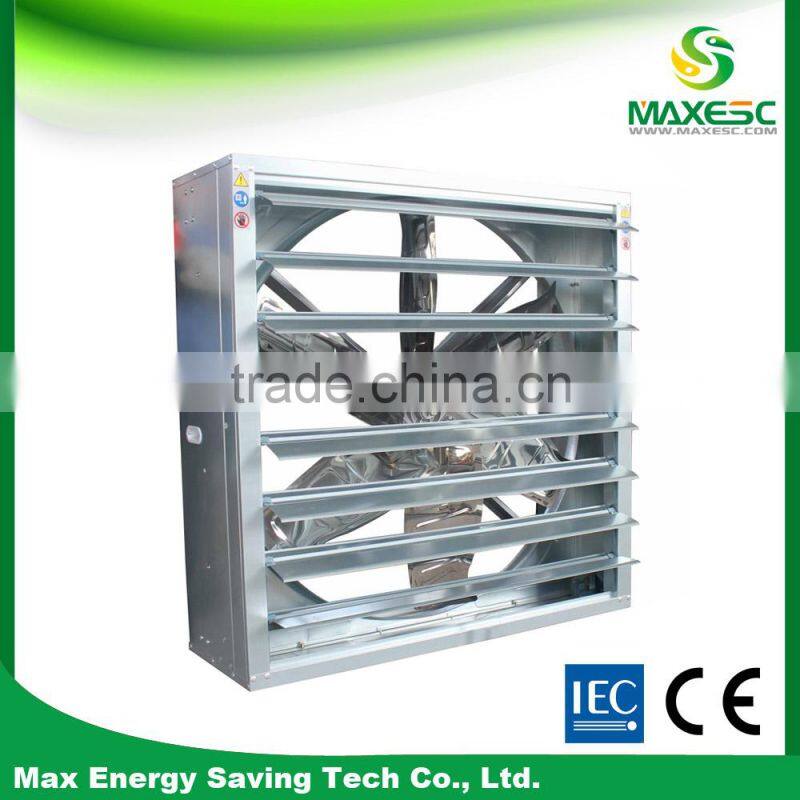

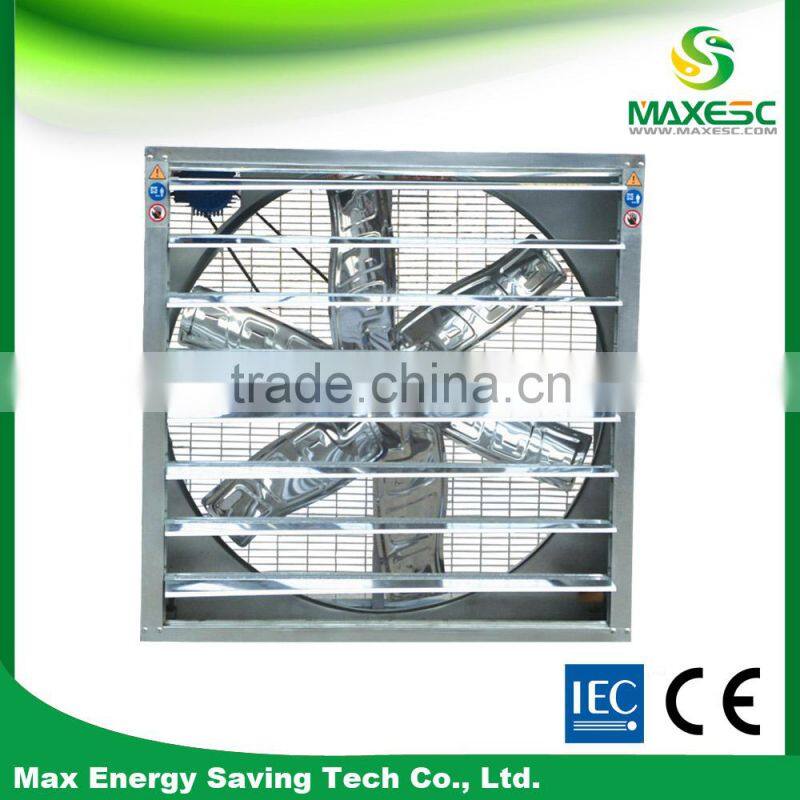

Industrial Factory Greenhouse Ventilation Exhaust Fan
1, Frame using advanced automatic processing, height precision. Extra-depth zinc coating frame, corrosion
ressistance strong. (frame are made of galvanized board, thickness 1.0mm galvanizing layer 120G/M2; Blade,
6pieces of blades and all the blades are made by 430/201/304 stainless steel, mirror face. )
2, High-strength aluminum alloy casting wheel, the reasonable perspective of the type, to reach the maximum
airflow. High-precision micro-computer-aided manufacturing system can make the best of its fans.
3, Five rigorous quality testing proccedures, noise detection, vibration testing, concentric rotation performance
testing, speed of blade testing and the whole fan efficiency detection, 380V special motor.
4, CAD/CAM optimizing design.
| Serial Number & name | Blade MM | Outline Size MM | Blade Rotational Speed rpm | Air flow m3/h | Total Pressure Pa | Noise DB | Input Power Watt | Rated Voltage | Thickness MM | 20ft load pcs |
| ESC-710 normal type | 710 | 800*800*370 | 660 | 18000 | 60 | less 60 | 370 | 380 | 370 | 98 |
| ESC-750HE | 750 | 900*900*400 | 630 | 21000 | 65 | less 65 | 550 | 380 | 400 | 76 |
| ESC-900HE | 900 | 1000*1000*400 | 610 | 25000 | 70 | less 65 | 550 | 380 | 400 | 64 |
| ESC-1000HE | 1000 | 1100*1100*400 | 600 | 32000 | 70 | less 65 | 750 | 380 | 400 | 64 |
| ESC-1100HE | 1100 | 1220*1220*400 | 460 | 37500 | 73 | less 70 | 750 | 380 | 400 | 40 |
| ESC-1250HE | 1250 | 1380*1380*400 | 439 | 44000 | 56 | less 70 | 1100 | 380 | 400 | 30 |
| ESC-1400HE | 1400 | 1530*1530*400 | 325 | 55800 | 60 | less 75 | 1500 | 380 | 400 | 21 |
Q: Are you a trading company or a factory ?
A: We have factory with more than 10 years experience.
Q: Why your price more expensive than other Chinese suppliers?
A: Our material we use is much better than other suppliers.
1.For all axial flow fans , and screws all use good quality stainless steel , won't be rusted .
2. For plastic products we all use new material to make sure the products can be long use .
3. All our products we use China famous motor brand , the motor can 1 year guarantee ,
with a correct using , the motor life can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big MOQ and maybe
price will be a little higher . Our normal voltage is 380V 50HZ 3phase .
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you
really want low price we will suggest you choose lower stage product , in our company , we don't have
bad quality products , you can reassure about the quality .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products ,
it's all by your request .
A: We have factory with more than 10 years experience.
Q: Why your price more expensive than other Chinese suppliers?
A: Our material we use is much better than other suppliers.
1.For all axial flow fans , and screws all use good quality stainless steel , won't be rusted .
2. For plastic products we all use new material to make sure the products can be long use .
3. All our products we use China famous motor brand , the motor can 1 year guarantee ,
with a correct using , the motor life can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make , but for special voltages , we have a big MOQ and maybe
price will be a little higher . Our normal voltage is 380V 50HZ 3phase .
Q: Can you cheaper ?
A: We have many quality stage products for client choose , different stage price will be different , if you
really want low price we will suggest you choose lower stage product , in our company , we don't have
bad quality products , you can reassure about the quality .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products ,
it's all by your request .
