3phase Electric Cabinet Air Conditioner Plastic Roof Vents

US$ 1 - 460 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Evaporative Air Cooler

Place of Origin:

Fujian, China

Fuzhou Max Energy Saving Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Evaporative Air Cooler

Place of Origin Fujian, China

Brand Name ESC

Model Number ESC12-18D-4

Operating Voltage 380/400 VAC

Mounting Wall / Window Mount

Certification CE

After-sales Service Provided Overseas third-party support available

3phase electric cabinet air conditioner plastic roof vents

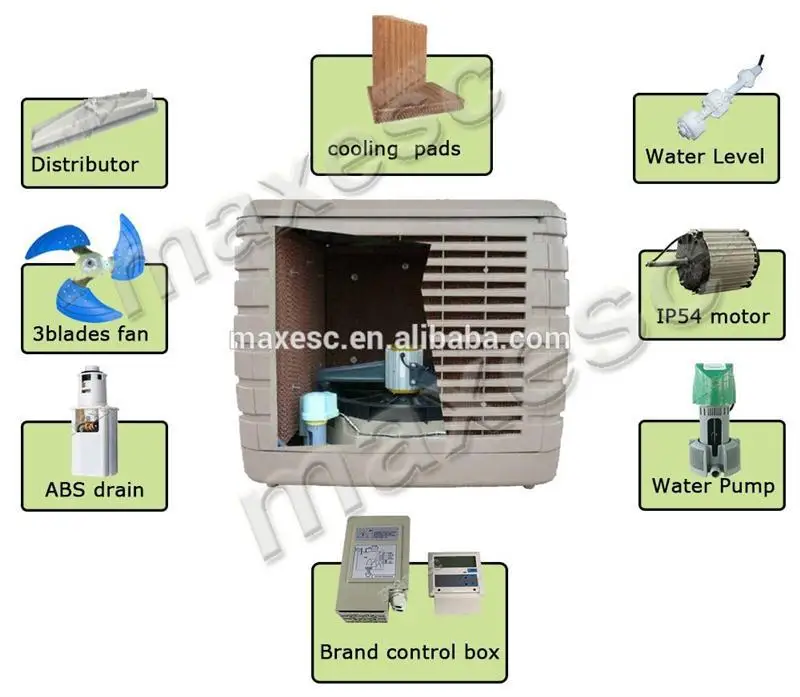

Why Choose Our Air Cooler?
A. Our evaporative air cooler The casing is made of high strength weather ability polymers which is

UV-proof,anti-aging, and resistant to deformation.

B. Different air discharge type(including top, down and side)can meet different installation

requirements of various applications.

C. Using specially designed axial fan, with large airflow, low noise, low energy consumption and

wide applicability.

D. Using high quality aluminum housing motor, with good heat dissipation, high protection grade,

waterproof and moisture-proof.

Specification :

Model	ESC31-18T-4 ESC31-18D-4	ESC12-18T-4 ESC12-18D-4	ESC31-20T-4 ESC31-20D-4	ESC12-20T-4 ESC12-20D-4
Airflow(m3/h)	18000	18000	20000	20000
Air Pressure (pa)	180	180	200	200
Output(kw)/h	1.1	1.1	1.5	1.5
V/Hz	380/50	220~240/50~60	380/50	220~240/50~60
Fan Type	Axial	Axial	Axial	Axial
Fan Speed	Single speed	Variable 12 speeds	Single speed	Variable 12 speeds
Water tank (Liter)	40	40	40	40
Cooling area(m2)	100-150	100-150	100-250	100-250
Dimension LWH(mm)	11001100950 11001100920	11001100950 11001100920	11001100950 11001100920	11001100950 11001100920
Outlet size(mm)	660*660	660*660	660*660	660*660
Noise (db)	≤71	≤68	≤73	≤76
Net.wet(kg)	85 80	85 80	85 80	85 80
Controller	Mechanical Switch	Remote+LED display	Mechanical Switch	Remote+LED display
Max Current	5A	5A	5A	5A
Water Consumtion	15-25L/H	15-25L/H	15-25L/H	15-25L/H
Material	Improve newpp which UV-proof,anti-aging,and resistant to deformation.
Discharge	UP,Down,Side	UP,Down,Side	UP,Down,Side	UP,Down,Side
Cooling Pad Thickness(mm)	100	100	100	100
Cooling pads spec	5090	5090	5090	5090
Auto drain (Auto clean)	-	Yes	-	Yes
overload portection	-	Yes	-	Yes
intelligent clean	-	Yes	-	Yes
Temperature & humidity display	-	Yes	-	Yes
New function-exhaust smell air from room	-	Yes	-	Yes
