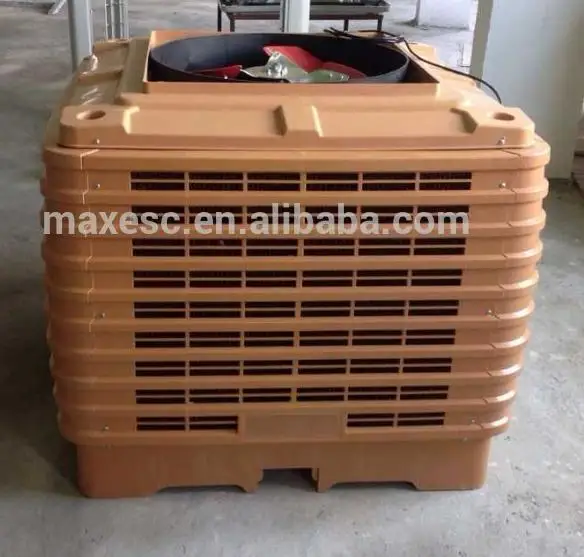

1.1kw evaporativo multi split air conditioner

FOB Price

USD $1 - $460 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Evaporative Air Cooler	Place of Origin:	Fujian, China
Brand Name:	ESC	Model Number:	ESC12-18D-4	Operating Voltage:	380/400 VAC
Mounting:	Wall / Window Mount	Certification:	CE	After-sales Service Provided:	Overseas third-party support available

1.1kw evaporativo multi split air conditioner

Why Choose Our Air Cooler?
A. Our evaporative air cooler The casing is made of high strength weather ability polymers which is

UV-proof,anti-aging, and resistant to deformation.

B. Different air discharge type(including top, down and side)can meet different installation

requirements of various applications.

C. Using specially designed axial fan, with large airflow, low noise, low energy consumption and

wide applicability.

D. Using high quality aluminum housing motor, with good heat dissipation, high protection grade,

waterproof and moisture-proof.

Specification :

Model	ESC31-18T-4 ESC31-18D-4	ESC12-18T-4 ESC12-18D-4	ESC31-20T-4 ESC31-20D-4	ESC12-20T-4 ESC12-20D-4
Airflow(m3/h)	18000	18000	20000	20000
Air Pressure (pa)	180	180	200	200
Output(kw)/h	1.1	1.1	1.5	1.5
V/Hz	380/50	220~240/50~60	380/50	220~240/50~60
Fan Type	Axial	Axial	Axial	Axial
Fan Speed	Single speed	Variable 12 speeds	Single speed	Variable 12 speeds
Water tank (Liter)	40	40	40	40
Cooling area(m2)	100-150	100-150	100-250	100-250
Dimension LWH(mm)	11001100950 11001100920	11001100950 11001100920	11001100950 11001100920	11001100950 11001100920
Outlet size(mm)	660*660	660*660	660*660	660*660
Noise (db)	≤71	≤68	≤73	≤76
Net.wet(kg)	85 80	85 80	85 80	85 80
Controller	Mechanical Switch	Remote+LED display	Mechanical Switch	Remote+LED display
Max Current	5A	5A	5A	5A
Water Consumtion	15-25L/H	15-25L/H	15-25L/H	15-25L/H
Material	Improve newpp which UV-proof,anti-aging,and resistant to deformation.
Discharge	UP,Down,Side	UP,Down,Side	UP,Down,Side	UP,Down,Side
Cooling Pad Thickness(mm)	100	100	100	100
Cooling pads spec	5090	5090	5090	5090
Auto drain (Auto clean)	-	Yes	-	Yes
overload portection	-	Yes	-	Yes
intelligent clean	-	Yes	-	Yes
Temperature & humidity display	-	Yes	-	Yes
New function-exhaust smell air from room	-	Yes	-	Yes

Spare Parts Details

Project,Packing And Shiping Photos

CE Certificate
