4t/d communication wire telephone wire computer copper recycling machine copper wire granulator

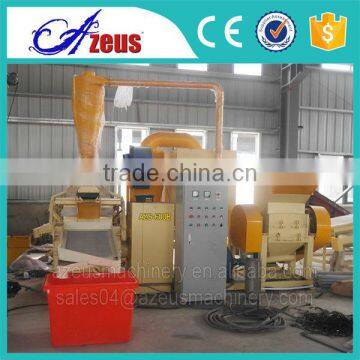

Copper wire shredder AZS-600B description

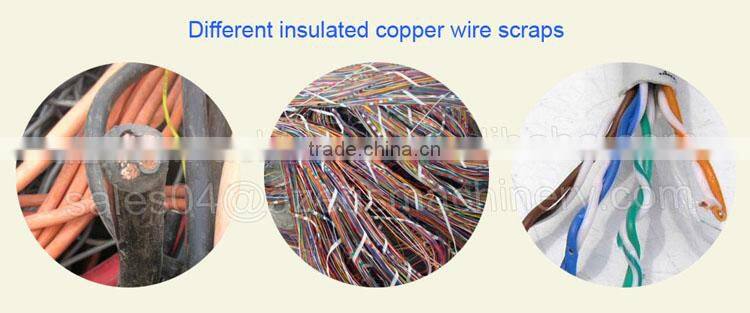

This copper wire granulator AZS600B is useful for recycling copper from scrap communication wire including telephone wire, USB wire, computer wire, wasted automobile wire and other miscellaneous wires etc with diameter between 0.2mm and 20mm.
Copper wire recycling machine AZS-600B working flow chart
First the crusher chops wire, then through grinding copper core and insulation will be separated.
Under the help of blower, light insulation granules move up and heavy copper granules
go down and are dispelled out from different outlets. In the whole process, no need of water and all
the dust will be collected. So it will be environment friendly. With this machine, you can get more than
99% purity copper granules.

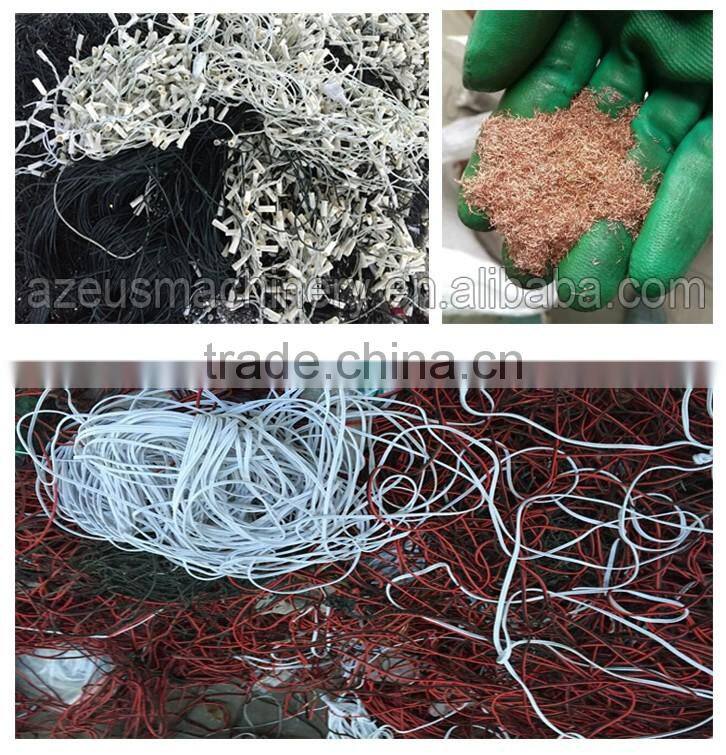

Copper wire recycling machine AZS-600B application
Copper granulator machine performance

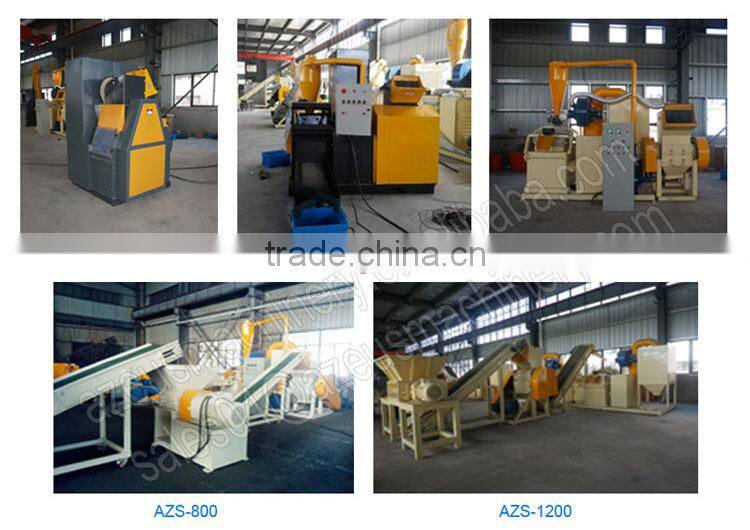

Copper wire recycling machine AZS-600B parameters
Model |
Dimension (mm) |
Total Power (kw) |
Capacity (kg/h) |
Weight (kg) |
AZS-400M |
1500*1500*1900 |
11.92 |
100 |
750 |
AZS-400 |
2150*1700*2150 |
23.12 |
150-200 |
1500 |
AZS-600A |
4000*1950*2300 |
48.36 |
300-400 |
3400 |
AZS-600B |
4300*1950*2400 |
52.36 |
300-400 |
3400 |
AZS-800 |
9200*4100*2400 |
78.76 |
500-800 |
8000 |
AZS-1200 |
16000*10000*3000 |
129.36 |
1000-1500 |
12000 |
Attention: To process much wider wires you can equip this granulator with a wire stripper which can process wires between 1-165mm.
Features for this Copper wire recycling machine AZS-600B
1.The machine adopts dry separation with all dust collected by the dust collecting system. So there will be no pollution to surrounding environment.
2.The whole process is controlled by PLC control box with one press on the button it will start or work. Very easy to operate.
3.For processing wires in different diameter, just change the screen size and adjust the force of blower and height of baffle in the vibrator.
4.The machine is mounted on one base, convenient to move.
5.At the outlet part we will equip it with small vibrating tables. Copper purity will be double ensure.

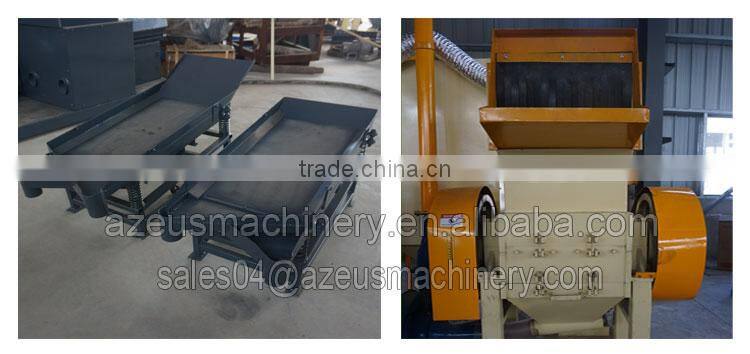

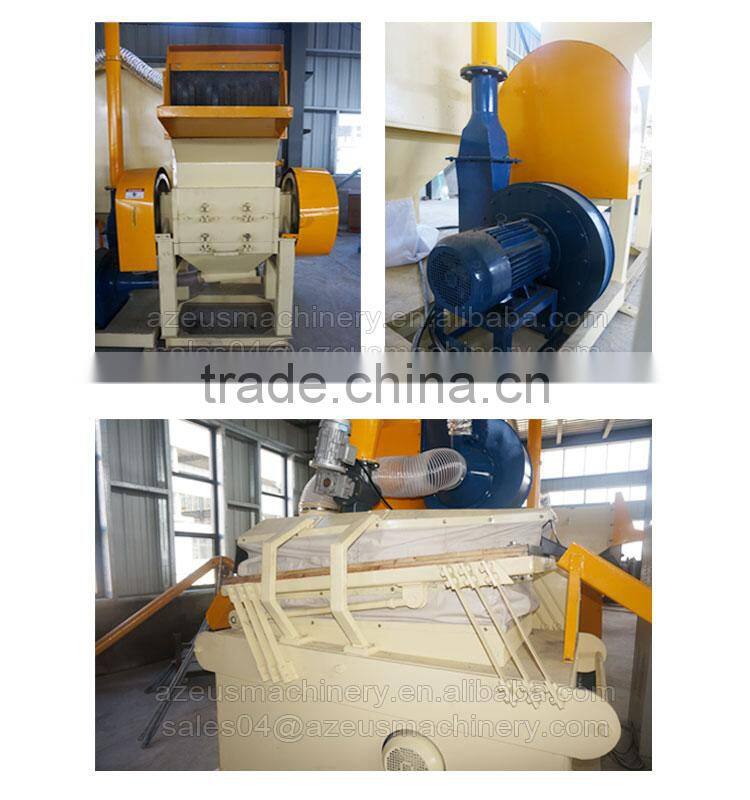

Copper granulator machine detailed pictures
Azeus is manufacturer, trader with over 10 years experience. Our company has passed ISO9001 verication. And 60% of our products are CE approved. Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after sale service and other aspects. We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you.
