Hot sale cocoa beans drying machine
Hot Air Drying Machine Working Principle
The hot air circulation drying oven is the use of steam and electricity as a heat source, is heated by a heater, a lot of hot air is circulated in the oven, through continuous supply of fresh air from air inlet into the oven, and then discharge from wet exhaust outlet, thus increasing the heat transfer effect, so that the inside material moisture gradually reduced.
Temperature: if heated by steam 50-140℃ and the highest temperature is 150℃.
Common vapor pressure: 0.02-0.8mpa, Drying plate size: 640*460*45mm.
Technical Data of hot air drying machine:
Model |
RXH-7-C |
RXH-14-C |
RXH-27-C |
RXH-41-C |
RXH-54-C |
specifications |
CT-C-0 |
CT-C-I |
CT-C-II |
CT-C-Ⅲ |
CT-C-IV |
Capacity of each batch |
60kg |
120kg |
240kg |
360kg |
480kg |
Power |
0.45kw |
0.45kw |
0.9kw |
1.35kw |
1.8kw |
Consumption of steam |
5kg/h |
18kg/h |
36kg/h |
54kg/h |
72kg/h |
Power |
9kw/h |
15kw/h |
30kw/h |
45kw/h |
60kw/h |
Thermal area |
5m2 |
20m2 |
40m2 |
80m2 |
100m2 |
Air volume |
3450m3/h |
3450m3/h |
6900m3/h |
10350m3/h |
13800m3/h |
Temperature used |
±2°C |
±2°C |
±2°C |
±2°C |
±2°C |
Qty of trays |
24 |
48 |
96 |
144 |
192 |
Overall Dimension(mm) |
1460*1000*1750 |
2300*1200*2300 |
2300*2200*2300 |
2300*3220* 2000 |
4460*2200 *2290 |
Baking vehicles |
1 |
2 |
4 |
6 |
8 |
RXH-7-C with 60kg/ batch
RXH-14-C with 120kg/ batch
RXH-27-C with 240kg/batch
RXH-41-C with 360kg/batch
RXH-54-C with 480kg/batch

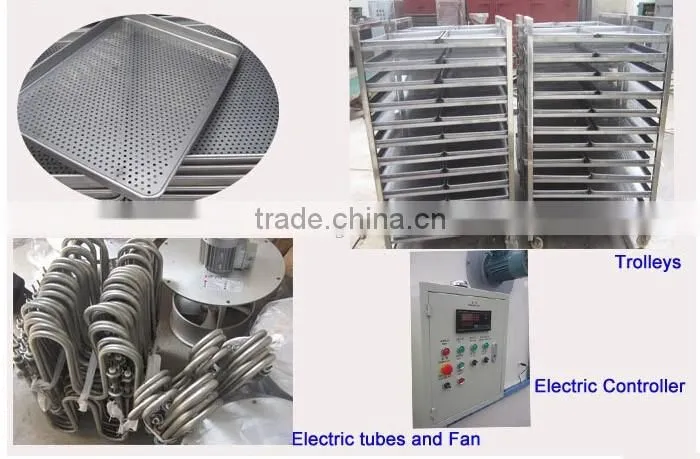

Spare Parts
Application
Hot air Food Dryer machine is suitable for materials as below.
Fruit: apple, pineapple, mango, kiwi, lemon, cherry, berry, gogi, fig etc
Vegetables: carrot, potato, ginger, pepper, tomato, cabbage, chilli, garlic, onion, mushroom etc
Meat: fish, seafood, pork, lamb, chicken, etc
Herbs: Leaves ,moringa leaf ,tea
Nuts: cashew nuts, walnuts, peanuts,
Beans: Cocoa Beans, pea,
Flowers: Rose etc
Plants and so on.
Dried Finished Materials
Please do not hesitate to contact Enoch Lv, if you need any more information or have any other questions. We will be at your service at any time.
