Mixing Fluid Nozzle

Name: Mixing Fluid Nozzle
Brand: XRST
SKU: 139410593
Availability: InStock

Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Tianjin, China

Brand Name:

XRST

Model Number:

Contact Supplier Request Quote Chat Now

Tianjin Xin Rich Source International Trade Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang port or Tianjin airport

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Tianjin, China

Brand Name XRST

Model Number CONTACT US FOR MORE INFORMATION

Condition New

Design feartures:

A cost-effective method for optimizing liquid tand performance
Allows small pumps tp circulate large volumes of liquid
Large flow opening minimizes plugging
Contains no moving parts to wear out or maintain
Compact design simplifies mounting
By keeping the particulate in suspension, filtration systerm clogging is prevented

Spray characteristics:

Matirial: PP (glass-fined polypropylene), 316SS, 316L, other material on your request
Connect size: 1/4", 3/8", 1/2", 3/4"

Order information:

Order information: K2 40- 3/8 -PP

Performance data:

Inlet conn NPT or BSPT (M)	Large acreage flow rate	Hydraulic pressure input
Inlet conn NPT or BSPT (M)	Large acreage flow rate	0.5 bar	1bar	1.5bar	2bar	2.5bar	3bar	3.5bar	4bar
1/4	Inlet flow rate(L/min) "A"	11	16	20	23	25	28	30	32
3/8		29	42	51	59	65	70	770	82
3/4		43	64	74	85	97	106	116	124
1-1/2		106	151	184	215	243	259	288	308
1/4	complemental volumn(L/min) "B"	42	59	72	84	93	102	110	118
3/8		116	168	204	236	260	280	308	328
3/4		172	256	298	340	388	424	464	496
1-1/2		424	604	736	860	972	1036	1152	1232
1/4	Circle total flow(L/min) A+B	54	75	92	107	118	130	140	150
3/8		145	210	255	295	325	350	385	410
3/4		215	320	370	425	485	530	580	620
1-1/2		530	755	920	1075	1215	1295	1440	1540
1/4	Effective range(m)	0.9	1.5	2.1	2.6	3	3.7	43	5.2
3/8		1.2	1.8	2.4	3	3.7	4.3	4.9	6.7
3/4		1.5	2.4	3.4	4.3	5.2	6.1	7.3	10.1
1-1/2		2.3	3.7	4.9	6.1	7.3	8.8	10.4	14

Model	Inlet conn(inch)	L(mm)	D(mm)	D(mm)
Model	Inlet conn(inch)	L(mm)	D(mm)	D(mm)
K₂40	1/4	70	30	23
K₂60	3/8	115	50	38
K₂90	1/2	115	50	38
K₂130	3/4	165	65	50

Common applications: Anodizing; Cleaning; Electrocoating; Mixing; Painting Booths; Phosphating; Plating; Rinsing; Sludge Removal; Stipping

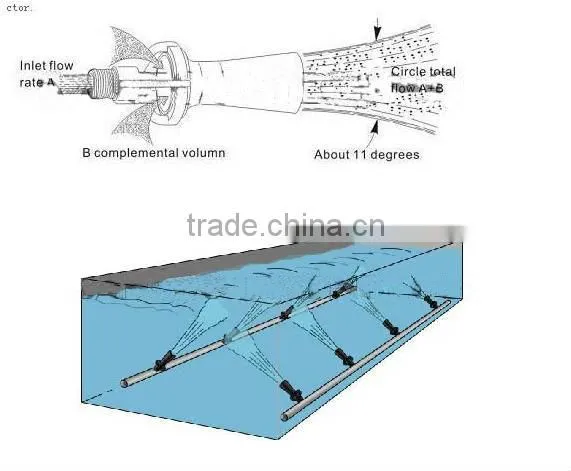

How it works: LIquid under pressure is pumped into the eductor through its large flow opening that helps minimze clogging. As the liquid exits the eductor at high velocity, it draws surrounding solution through the eductor's "flow-through" chamber that's designed to elilminate internal material build-up. Then, this addtional liquid flow mixes with the pumped solution and multiplies its volume. This means that the eductor can pull in or "entrain" up to 4 additonal gallons (15.1 liters) of surrounding solution for every 1 gallon (3.8 liters) pumped through the eductor.
