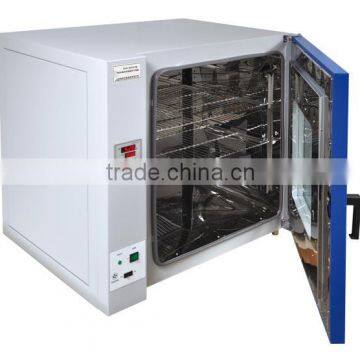

DHG Blast Drying Oven
Application of DHG DRYING OVEN
Widely used in mining industry, laboratory, scientific research institute, etc for drying, baking and wax-melting, sterilization, etc.
Features of DHG DRYING OVEN
- Large screen LCD display, many sets of data display in one screen, menu type operation interface, simple and understand easily, conveniently operating.(Standard configuration).
- Adopt draught fan speed control mode, which could improve the temperature uniformity of the studio.
- Adopt air duct circulation system which is developed by ourselves, which could automatic discharge the water vapor in chamber, and no manual adjustment problems.
- Adopt microcomputer temperature controller which has over-temperature deviation protection and digital display functions, timer function and temperature control is accurate and reliable.
- The oven inner use mirror stainless steel material, shelf bracket could be loading and unloading freely, semicircle four corners design make cleaning more convenient.
- The oven is made of high quality cold-roll steel sheet, and surface electrostatic plastic spraying.
- Independent temperature limitation alarm system, it will be automatically interrupted if over the limit temperature, so as to guarantee the safe of experiment and operation without any accident.(Optional)
- With RS485 interface which could connect the recorder and computer, so could record the change situation of temperature parameters.(Optional)
Technical specification of DHG DRYING OVEN
|
Items
|
9013A |
9023A |
9053A |
9073A |
9123A |
9203A |
||
Supply voltage |
AC220V 50HZ |
|||||||
Temperature control range |
RT+10~280℃ |
|||||||
|
Constant temperature fluctuation |
±1℃ |
|||||||
Temperature resolution |
0.1℃ |
|||||||
Input power |
550W |
850W |
1100W |
1550W |
2050W |
2500W |
||
|
Studio dimension W×D×H(mm) |
250×260×250 |
340×330×320 |
420×350×390 |
450×400×450 |
550×450×550 |
600×595×650 |
||
|
Boundary dimension W×D×H(mm) |
535×480×430 |
625×540×500 |
705×610×530 |
735×615×630 |
835×670×730 |
880×800×830 |
||
Volume |
16L |
30L |
50L |
80L |
136L |
220L |
||
|
Loading bracket (Standard configuration) |
2pcs |
|||||||
Timing range |
1~9999min |
|||||||
Price(USD) |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
||
Items |
9030A |
9050A |
9070A |
9140A |
9240A |
9240AS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supply voltage |
AC220V 50HZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature control range |
RT+10~250℃ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Constant temperature fluctuation |
±1℃ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature resolution |
0.1℃ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input power |
850W |
1100W |
1550W |
2050W |
2500W |
2500W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Studio dimension W×D×H(mm) |
340×330×320 |
420×350×390 |
450×400×450 |
550×450×550 |
600× 595×650 |
600×595×750 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Boundary dimension W×D×H(mm) |
625×540×500 |
705×610×530 |
735×615×630 |
835×670×730 |
880×800×830 |
880×800×930 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Volume
|
30L |
50L |
80L |
136L |
220L |
260L |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Loading bracket (Standard configuration) |
2pcs |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Timing range |
1~9999min |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Price(RMB) |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Performance parameters under idle condition, no strong magnetic and no vibration: environment temperature 20℃, environment humidity 50%RH. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
