DZF-6210 Industrial Laboratory Stainless Steel Inner Chamber Heating Oven Lab Drying Equipment Classification Vacuum Drying Oven

                               DZF Stainless Steel Inner Chamber Vacuum Drying Oven

DZF Vacuum Drying Oven Summary

Vacuum Drying Oven is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’ disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.

Advantages of Vacuum Drying Oven :
·Vacuum environment greatly lowered the liquid’s boiling point which needs to be driven away, therefore the vacuum dry method can be applied into heat sensitivity material.
·For the samples which can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may effectively reduce drying time.
·Various complex structures of machinery ministry or other porous sample process use vacuum dry method after washing will not leave any residue;
·Safety guarantee: whether under vacuum or inertia condition, the possibility of oxide explodes when is heated will completely be eliminated.
·Compared with the normal drying method depended on air circulation, powder samples will not be blown or moved away by air

Vacuum Drying Oven Features:
·Heating element is on the internal partition of the oven. Compared with traditional vacuum drying oven, it can cut down 50% heating time. (except 6050,6051)
·Several sets of data shows in a big LCD screen. The operation interface can be easily understood and handling.
·The aluminum shelf uses a special stamping process, oxidation will not occur in high temperature, and the conduction is fast. The heat loss will be reduced at the most extent.
·The chamber is cuboid so as to maximize the volume. Microcomputer intelligent temperature controller, makes temperature control accurate and reliable.
·Reinforced, bullet-proof double-deck glass door to observe objects in the oven. Inert gas can be filled into it.
·The tightness of the door can be adjusted by user optionally. Wholly-shaped silicone rubber door seal ensures the high vacuum degree in chamber.
·The working room uses stainless steel plate, good cold-roll shelf sheets cover, with anti-static plastic coating.
·Storage, heating, experiments and drying are all doing in the environment with no oxygen or filled with inert gas, so oxidation will not happen.

Vacuum Drying Oven Technical parameters

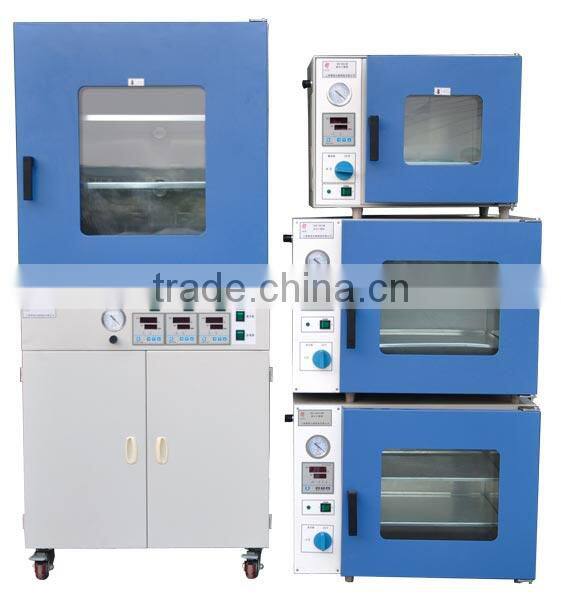

Big Vacuum Drying Oven picture

Our team

Our company supply all kinds of drying ovens, also can customize 110V power supply
