Specifications
lab freeze dryer
condenser temp.-60 or -80 centigrade
with stopper device and manifold ports
Big LCD display, drying curve could be shown and stored
TOPT-10B Top-press/ Gland-type Vacuum Freeze Dryer
full range for choose
TOPT-10B Top-press/ Gland-type Vacuum Freeze Dryer
Brief introduction of Freeze Dryer:
TOPT Series Freezing dryer is a new desktop Freezing dryer device, suit for freeze-drying experiment in laboratory and a small amount production.
The series include: common type, capping type, branch manifold common type, branch manifold capping type.
Description of TOPT-10B Top-press/ Gland-type Vacuum Freeze Dryer:
TOPT-10B Freezing dryer is a new desktop Freezing dryer device, suit for freeze-dring experiment in laboratory and a small amount production.
The series include: common type, capping type, branch manifold common type, branch manifold capping type.
Characteristics of TOPT-10B Top-press/ Gland-type Vacuum Freeze Dryer:
1. Green environment-friendly product to conform to international standard
2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of pre-cooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function
TOPT-10B Top-press Vacuum Freeze Dryer
Name and Model |
TOPT-10B Gland type/capping/top press Vacuum Freeze Dryer |
Freeze Drying Area |
0.09m2 |
Cold trap temperature |
-55 (optional -80) ℃ |
Vacuum |
<10 Pa |
Water-capture capacity |
3~4 Kg/24h |
Material tray |
diameter 180 mm |
Tray number |
3 layer |
Whole power |
600 W |
Main frame size |
425*615*(370+445) mm |
Main frame weight |
40 Kg |
Liquid capacity |
0.9 L |
Penicillin bottle diameter22mm |
150 units |
Toption Freeze Dryer Advantages:
1. Drying curve can be dispalyed, convient for you to observe lyophilization proess.
2. Big LCD touch screen display, most products in China are not LCD at the moment.
3. Operation panel and manual can be produced in English for you.
4. Voltage can be changed base on your needs
5. Danvers compressor with high quality and low consumption.
6. 8 years production experience for strong technique support

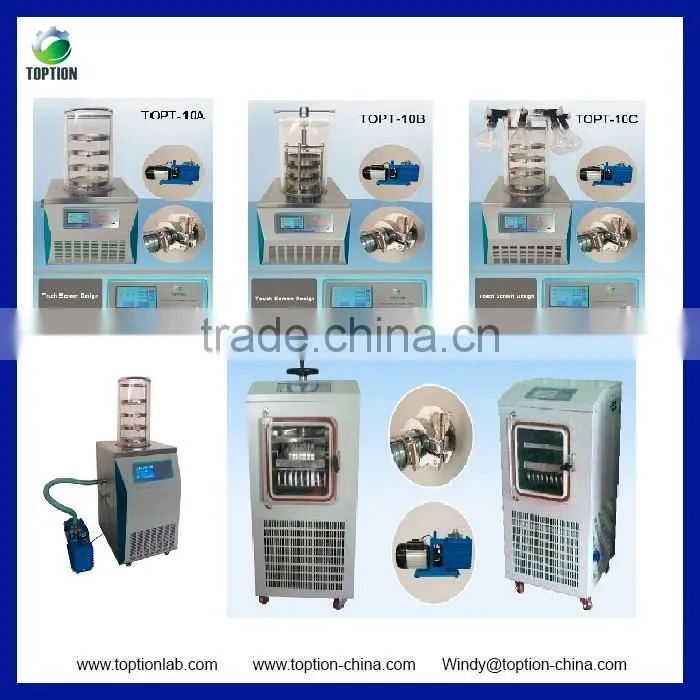

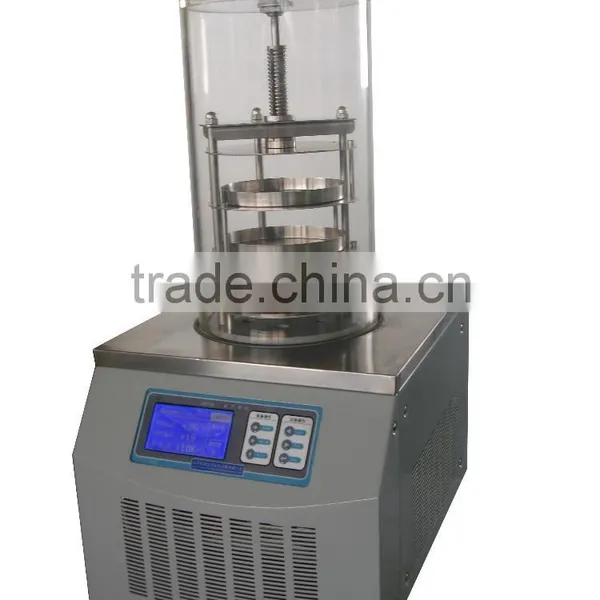

Photo of TOPT-10B Top-press/ Gland-type Vacuum Freeze Dryer:
Structure of TOPT-10B Top-press/ Gland-type Vacuum Freeze Dryer:
Application of vacuum Freeze Dryer:
1. This model is suitable for Friuts?
--Yes, for the moment, we have customers to freeze drying fruits, juice, peptide, meat, ice cream, seed, etc...
2. How do you think about the Freeze Dryer Market?
--It has very good prospect because of its wide application range, such as university, research institutes, factory, home application, etc...
3. Does vacumm pump included in your quotation?
---Yes, it is the whole set we provide for you, includes main frame, organic glass cover, ss trays, vacuum pump, pump oil, connections, etc
4. Can you produce it with all English panel and operation manual?
--Yes, pls see following pic, that is the freeze dryer for foreign customers. It is the new outlook of our Freeze Dryer, since from last year, some suppliers began to mimic our equipment so we have to change our outlook.
5. I want to freeze dry samples in the vials and then seal it in vacuum condition, is TOPT-10A ok?
---If you want to seal the rubber plug in vacuum condition for small capacity, our TOPT-10B model is advised for you.
More informations, pls contact us freely at any time.
Many thanks and Toption wishing you a wonderful new day.
