Descriptionfor TOPT-10C Multi-pipe Vacuum Freeze Dryer :
1. Imported compressor, high capability of water-capture, low noise;
2. Match the green environmental protection of international standard;
3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function;
5. Small volume, convenient operation;
6. Transparent bell-cap drying room is safe and visual;
7.The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying;
8. International standard vacuum pump interface may connect varied vacuum pump;
9. Cold trap and operation panel are all stainless steel, corrosion-resistant and bright;
10.Communication interface is optional;
11.Valve with nitrogen is optional;
12. Dual-machine cascade refrigeration is optional. The technology is mature. The temperature is low (apply -80℃ device).
Technical Parameters for TOPT-10C Multi-pipe Vacuum Freeze Dryer:
Name and Model |
TOPT-10C Multi-pipe Vacuum Freeze Dryer With 100ml, 250ml, 500ml &1000ml freeze-dried bottles each 2 pcs
|
Freeze Drying Area |
0.12 m2 |
Cold trap temperature |
-50 (optional -80) ℃ |
Vacuum |
<10 Pa |
Water-capture capacity |
3~4 Kg/24h |
Material tray |
diameter 200 mm |
Tray number |
4 layer |
Whole power |
700 W |
Main frame size |
460*625*(370+430)(mm) |
Main frame weight |
40 Kg |
Liquid capacity |
1.2 L (thickness:10mm) |
Penicillin bottle |
Penicillin bottle diameter12mm:920pcs Penicillin bottle diameter 16mm:480pcs Penicillin bottle diameter 22mm:260pcs |

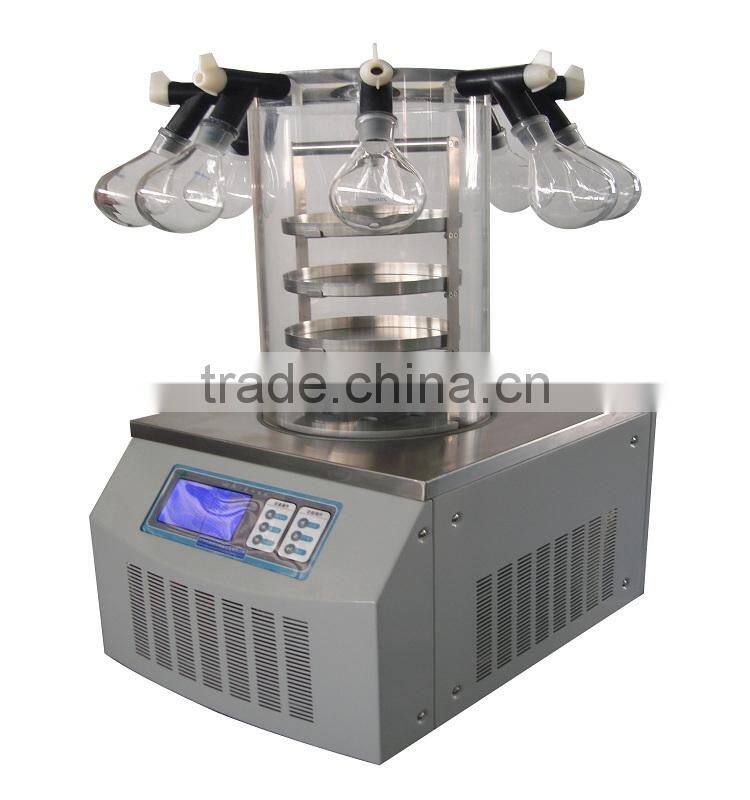

Pictures for TOPT-10C Multi-pipe Vacuum Freeze Dryer :
TOPT-10C Multi-pipe Vacuum Freeze Dryer Customized blue stand with wheels for one of our customers
TOPT-10C Multi-pipe Vacuum Freeze Dryer warehouse:
Certificate for TOPT-10C Multi-pipe Vacuum Freeze Dryer
TOPT-10C Multi-pipe Vacuum Freeze Dryer package:
