vacuum pump Promotion hot water circulation pump SHB-III Water Circulating Multi-purpose Vacuum Pump
- 3000 Unit / Units per Month
- Shanghai/ Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | TOPTION | Model Number: | SHB-III |
Theory: | Vacuum Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
Pressure: | High Pressure | Application: | Other, rotary eveparator |
Product Description
Rotary evaporator Dedicated SHB-III Water Circulating Multi-purpose Vacuum Pump
Specifications of SHB-III vacuum pump:
1) PTFE painting
2) 0.098Mpa(20mbar) vacuum degree
3) 10L/min single tap air sucking amount
4) Tank material: PP
5) flow: 80L/min
1. Save more than 35% of electricity.
2. Save water.
3. Double-tap, double-display, can be used alone or in parallel.
4. Resist corrosion by acid, alkali and solvents.
5. Can be used to extract corrosive gas.
- SHB-Ⅲ: shell, flume, ejector, tee junction, check valve and gas-extraction nozzle adopt the PP material; pump body and impeller(six flow passages, dual seal) adopt stainless steel plate pressing, the material is in accordance with the ANSI standard.
- SHB-ⅢA: ejector and gas-extraction nozzle adopt stainless steel material (ANSI standard), the rest is the same as SHB-Ⅲ.
- SHB-ⅢS: pump body adopts the PP material, which is more suitable for acid gas, the rest is the same as SHB-Ⅲ.
- SHB-ⅢT: lucid flume is convenient for observe water level and water quality, the rest is the same as SHB-ⅢA.
Specifications of SHB-III vacuum pump:
Model | SHB-III/IIIA/IIIS/IIIT/IIIG |
Power(W) | 180 |
Power supply(V/Hz) | 220/50 |
Flow(L/min) | 80 |
Lift(m) | 10 |
MaximumVacuumDegree(MPa) | 0.098 |
Single Tap Air Sucking Amount(L/min) | 10 |
Single Tap Air Sucking Amount(A) | 2 |
Safety functions | Check valve |
Capacity of water storage tank(L) | 15 |
Materials of Water Tank | PP |
Dimensions(mm) | 385L×280W×420H |
Weight(kg) | 11 |

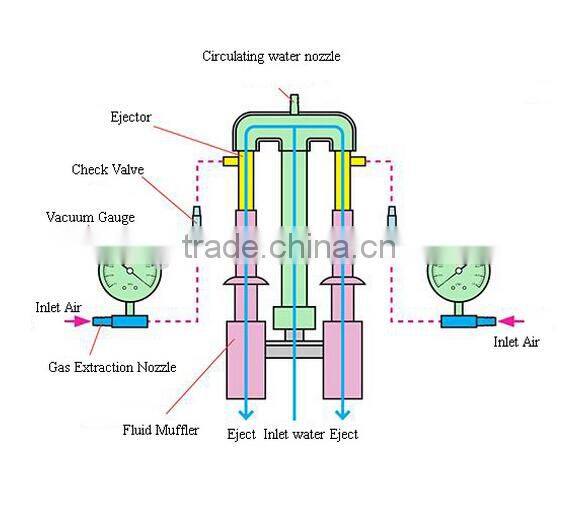

Structure of SHB-III vacuum pump:
