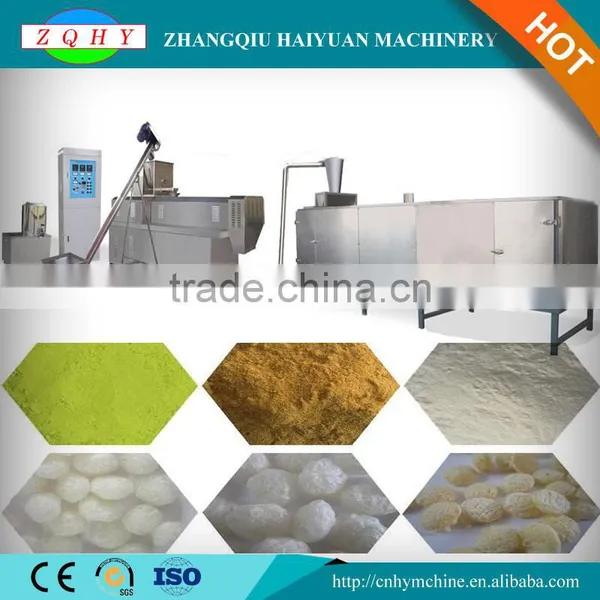

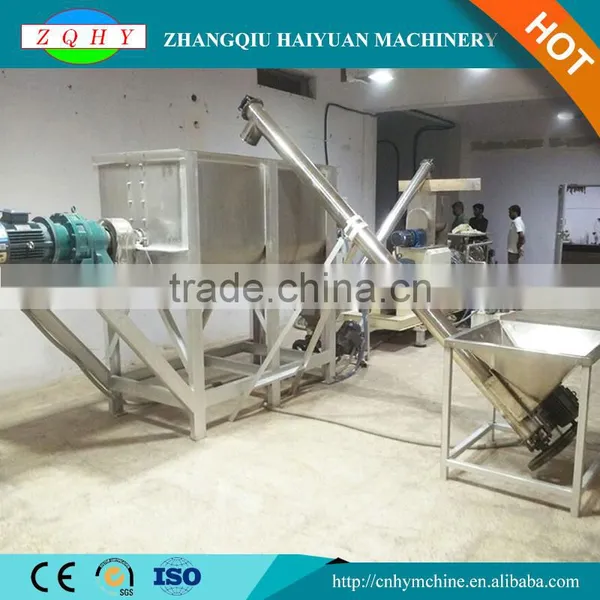

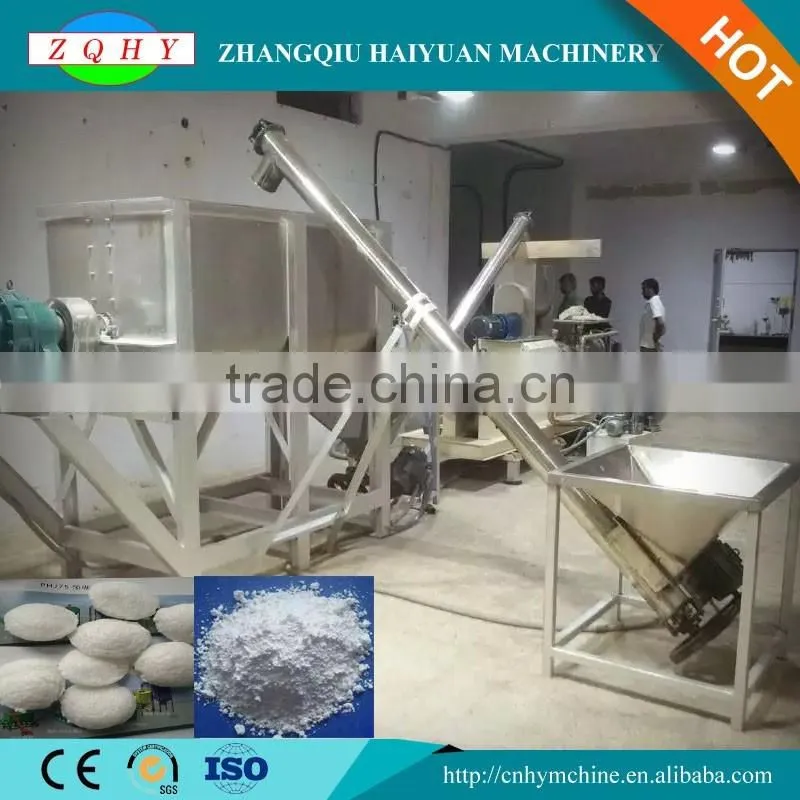

Corn Cassava Pregalatinized Starch Processing Line
Pregelatinized starch/modified starch extrusion/machine/processing line can product Denatured Starch, Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120°C, environmentally acceptable and non-toxic. Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system. Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.
a. Raw Materials: corn starch, cassava starch, potato starch
b. Products: oil drilling starch, Pre-gelatinized starch, modified starch
c. Capacity: 200kg/h, 350kg/h, 500kg/h, 1ton/h, 2ton/h

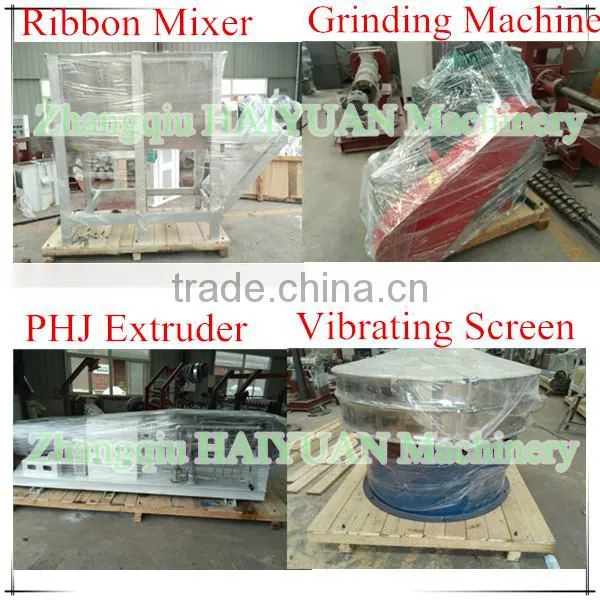

d. Flow chart: Mixing---Extrusion---Drying---Grinding---Blending—Packing
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
g. Technical Parameters
Model |
Installed power |
Real power |
Output |
Dimension |
AMC70 |
42.2kw |
30kw |
200-250kg/h |
3500x800x1700mm |
AMC90 |
85.7kw |
75kw |
400-500kg/h |
5500x1200x1900mm |
AMC120 |
155kw |
110kw |
1500-2000kg/h |
2400x3500x4500mm |
AMC140 |
235kw |
165kw |
2000-3000kg/h |
3000x3500x4500mm |

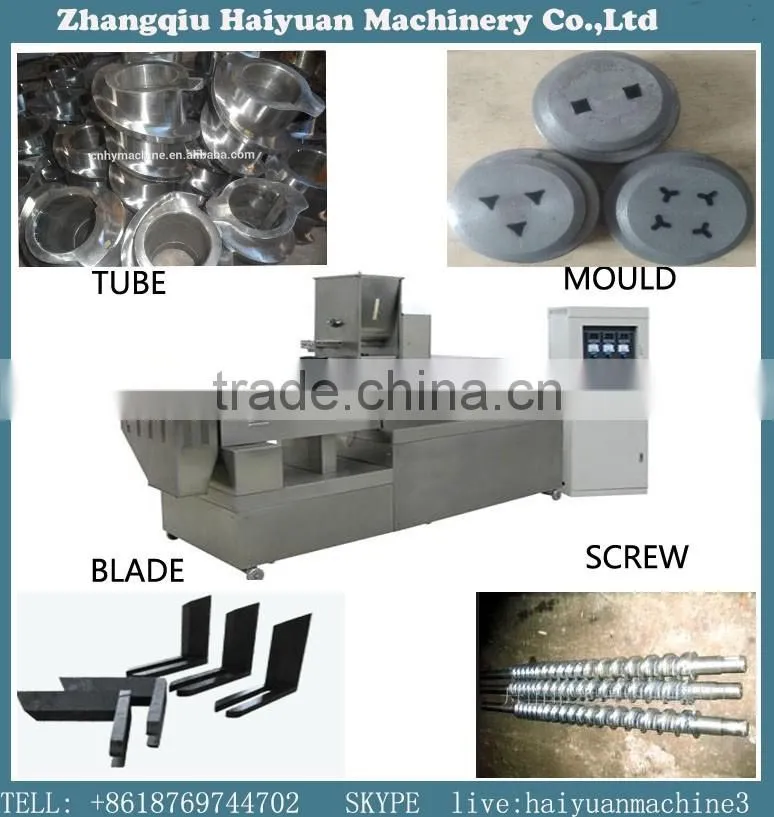

1. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion tube is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
4. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
5. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.
| 1.Manufacture | Keep the quality the first. |
| Make more products benifit to customers' need. | |
| 2.Online/Sale service | Supper and solid quality. |
| Fast and punctyal delivery | |
| Standard export package or as customers' need. | |
| 3.After-sale service | Assistance to build factory or your project. |
| Repairing and maintenance if any problem occur in the warranty. | |
| Installation and clerks training. | |
| Spare and wearing parts for free or with big discount. | |
| Any feed back of machines can be told us,and we will try our best to support you. | |
| 4.Other cooperate service | Technology knowledge share. |
| Factory building advising. | |
| Business expansion adbvising |
