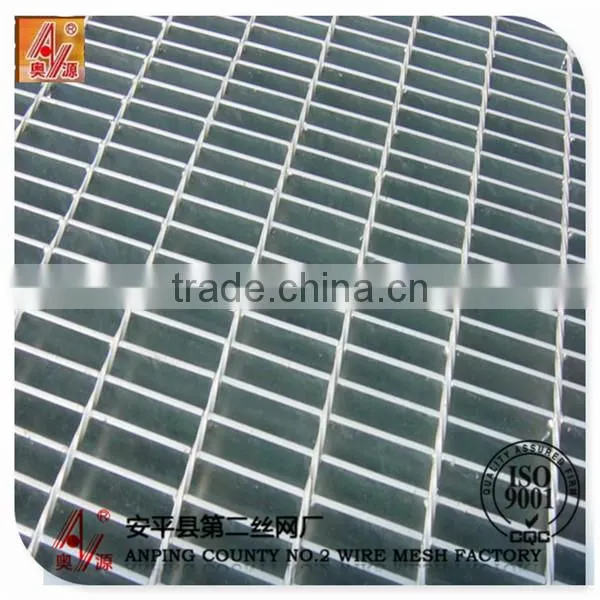

Serrated Bar Hot Dip Galvanized Steel Grating
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10,the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mmetc, and 30, 40, 60mm are recommeded.
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, and 50, 100mmare recommended, America standard is available.
4) Material: Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment: Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
Specifications sheet:
Item No. |
Bearing Bar Pitch |
Cross Bar Pitch |
Specification of bearing bar loadwidth×thickness |
||||||
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
||||
1 |
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
|
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|||
2 |
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
|
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|||
3 |
60 |
50 |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
||
Item No. |
Bearing Bar Pitch |
Cross Bar Pitch |
Specification of bearing bar loadwidth×thickness |
||||||
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
||||
1 |
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
|
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|||
2 |
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
|
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|||
3 |
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
|
Types and Applications :
The steel grating can be classified into Plain Style Steel Grating, Serrated Style Steel Grating andI Bar Type Steel Grating, etc,They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc.
Welcome to ANPING NO.2 WIRE MESH FACTORY.
Anping NO.2 Wire Mesh Factory was founded in 1984, sharing 20 years' wire mesh production history.We are a professional manufacturer of various kinds of metal mesh.We have Roberts workshop, weaving workshop, the template network workshop, deep-processing workshop and so on.
The main products of our factory:
1. WIRE: Stainless Steel wire, Galvanized Wire and Zinc Alumimun Alloy Wire
2. WIRE MESH: Stainless Steel Wire Mesh, Crimped Mesh, Corner Mesh
3. WELDED: Welded Wire Mesh, Welded Panel and Steel Grating.
4. FENCING: Chain-Link fence, Palisade Fence, Welded Panel Fence and (Razor) Barbed Wire Mesh.
5. LINTEL: U-Lintel and W-lintel.
1 . Any Inquiries will be replied within 24 hours .
2 . We are professional metal wire mesh manufacturer and factory with more than 30 years' experience .
3 . We have technical designers who can design metal wire mesh products as per customers' requirements .
4 . Quality Guarantee :
----- All products will be strictly inspected by our inspector before packing and shipping .
----- Welcome to our factory to supervise the manufacturing processing and inspect our products whenever .
----- If the material , weight and appearance can not meet your markets requirements , we are commited to
unconditional return the products and refund , then compensate you the corresponding .
5 . Free Samples .
Thanks for your attention on us . If you are interested in any of our products , please feel free to contact with me .
