wood splitting machine
When you send inquiry to wood splitting machine , please tell:
1 What is your raw material and its size?
2 What is the final output size you want?
3 What is the capacity you want per hour?
4 What is the voltage in your place?
Suitable raw material for wood splitting machine
Saw dust • Wood Chips • Wood logs • Tree branch • Wheat Straw • Peanut-shell • Rice husk •
Sugar Cane Bagasse • Coffee Husk • Paddy Straw • Sunflower Seed Husk • Sunflower Stalk • Reeds •
Cotton plant Stem • Tobacco waste • Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Palm husk • Soybeans husk and many other agro and forest wastes, which size is about 30mm.

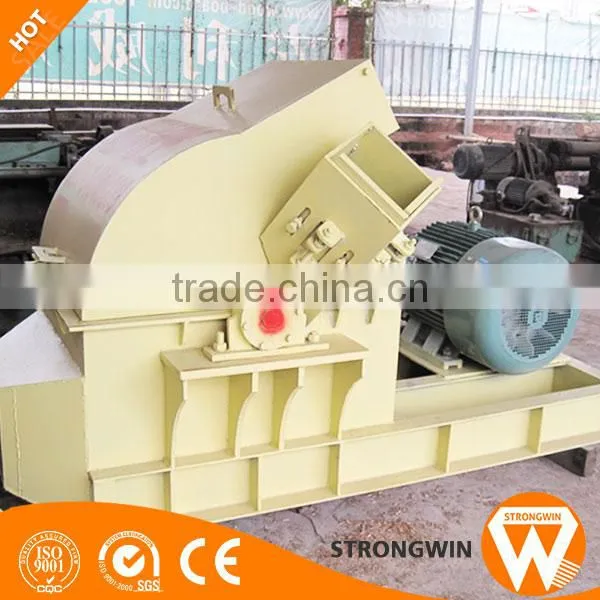

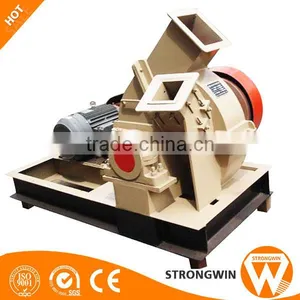

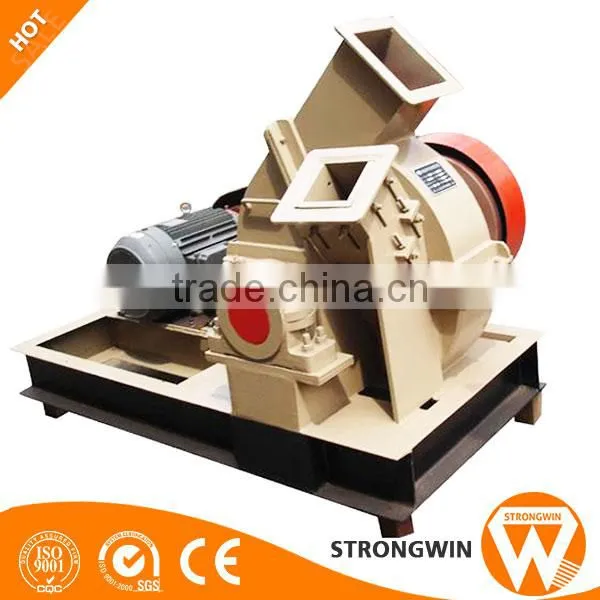

1.Characteristics of disk wood chipper
Wood crusher machine is specified wood grinding machinery which is designed and invented
for many years according to the demand of industrial production development.
1. Self-suction design to avoid serious damage to operators.
2. Low investment and energy consumption
3. High output
4. Easy to operate and maintain
2.Working principle of disk wood chipper
Wood crusher machine adopts the integrated function of knife cutting and high speed air current shocking as well as hitting grinding. Meanwhile,it can do the screening process of fine material. In the process of knife cutting,rotor can have high speed air current and moving along with the knife cutting,the material will be dual grinded in the hitting,so it can promote the grinding efficiency of material.
3.Application of disk wood chipper
1. Wood, tree trunk, tree branch, straw, bamboo stick etc;
2. Wooden piece, small tree branch, leaf, tree bark, feedstuff and chemical material etc material;
3. Orchard garden , Botanical garden, Landscaping department;( Trimmed branches, trunk, leaf can be crushed as fertilizer .)
4. Machine can installed on the cart or farm vehicle.
4. disk wood chipper parameters
Model |
SW420 |
SW600 |
SW800 |
SW950 |
SW1150 |
SW1410 |
|
Qty of Cutter (blade) |
3 |
3 |
4 |
4 |
4-6 |
4 |
|
Feeding Hole Size (mm) |
150*150 |
180*150 |
200*200 |
230*250 |
300*330 |
400*400 |
|
Cutter Disk Diameter (mm) |
420 |
600 |
735 |
830 |
1150 |
1410 |
Cutter Size(mm) |
150*70*8 |
200*100*10 |
230*120*12 |
250*120*12 |
340*150*14 |
480*170*18 |
Capacity(t/h) |
1 |
2 |
4 |
6 |
10 |
12 |
|
Main Shaft Speed (r/min) |
600 |
600 |
550 |
550 |
600 |
600 |
Motor(kw) |
11 |
18.5 |
30 |
45 |
55 |
90 |
|
Overall Dimension (mm) |
1200*500 *800 |
1500*570 *1050 |
1850*730 *1240 |
1900*820 *1500 |
2560*1150 *1800 |
2900*1400 *2350 |

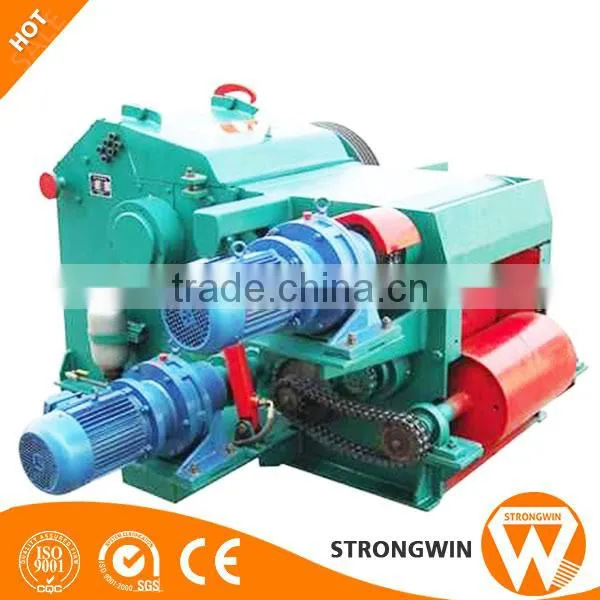

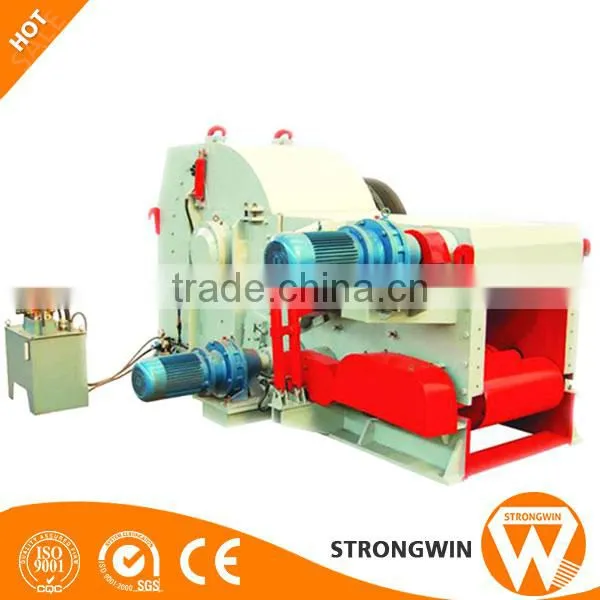

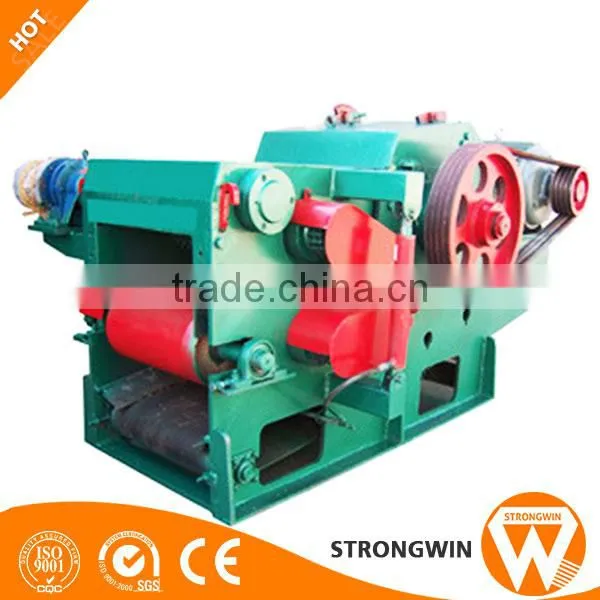

1. Description of wood splitting machine :
This drum chipper makes high quality pulp or fuel chips from lumber trims, slabs, veneer trims, edgings, blocks, log ends, oversized chips and solid wood. Also tree length wood, brush, stringy bark and limbs can be processed.
It is a ideal equipment for chips production.The machine is made up of high strength steel plate so it is strong enough for working. The knives are connected to the rotor by clamping plate. Connected by hydraulic system, the upper faced roller assembly can float up and down over the material to be cut within certain range according to the thickness of the material.
Introduction of Wood Drum Chippers For Sale:
This wood chipper is used for crush wood logs into chipps. Can driven by electrice and diesel engine according to users' requirements.
2. Notes about of wood splitting machine :
1. The life of the knife is 2-3 months, it need to polish per day.
2. The size of raw material need to be less 200mm on diameter, and less 1000mm on length.
3. The outlet size of wood chip is less 3mm on thickness, and less 15-25 on length. But the size of the finished wood chip can be adjustable by changing the distance of the knives.
4. There is one request to the wood material, which can not be with wood skin. Before we use this wood chipper, we must firstly peel the skin of the wood; otherwise it will damage the knives heavily and reduce the capacity.
5. The metal material is the most elements to damage the knives.
3. Features about wood splitting machine :
Wood Chipper (Crusher Timber) have wide scope of application of sawdust processing. It is also called (timber mill, wood crusher, wood shredder cutting, wood cutting machines, mill sawdust, wood shavings mill, wood slicer). The machine is a new kind of product for crushing wood material and biomass material. It is an ideal pre-press equipment for producing wood powder or wood granules, particles. The wood chipper can process wood, bamboo, sticks, tree fork into raw materials such as sawdust, wood chips, wood shavings and so on. The wood chippers are popular by our clients with low investment and low energy consumption, high productivity, good economic returns, such as the use of the advantages of easy maintenance. The machine can be used for the development of edible fungi, particle board, sawdust board, HDF, charcoal production and other raw materials.
4. wood splitting machine parameters
Drum Wood Chipper | |||
Model |
SW-215 |
SW-216 |
SW-218 |
Feeding Hole Size(mm) |
160*400 |
230*590 |
300*680 |
Qty of Cutter(blade) |
2 |
2 |
2 |
Knife Roll Rotating Speed(r/min) |
590 |
590 |
650 |
Wood Chip Size(mm) |
30 |
30 |
30 |
Capacity(t/h) |
3-5 |
8-10 |
14-18 |
Mainframe Power(kw) |
4-45 |
4-55 |
4-110 |
Feeding Power(kw) |
(2.2-3)*2 |
(3-4) *2 |
(4-5.5) *2 |
Oil Pump Motor(kw) |
1.5 |
1.5 |
1.5 |
Conveyor Motor(kw) |
3 |
3 |
4 |
Weight(kg) |
2990 |
5030 |
7000 |
Dimension(mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |

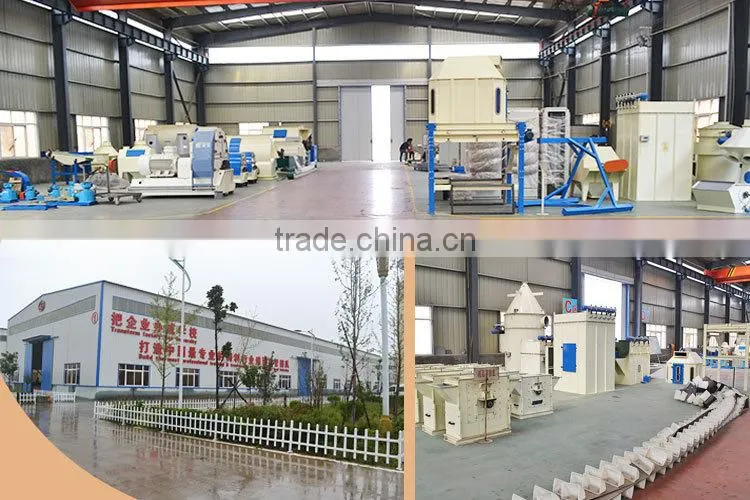

Strongwin wood pellet production line
v 1.Registered capital of 50 million yuan with Independent Import and Export Rights
v 2.Eight Series Strongwin Machinery of National Agricultural Machinery Subsidy Policy
v 3.Member Of China Bioenergy Association
v 4.Member of Henan Animal Husbandry and Engineering Association
v 5.Member of Henan Quality and Safety of Agricultural Machinery Institute
v 6.Passed the TUV Certification
v 7.Passed ISO9001-2008 Certification
v 8.Passed SGS Certification
v 9.Passed Europe CE Safety Certification
We specialized in manufacturing of pellet machine, pellet production line, oil press, oil production line , any questions about wood splitting machine , please feel free to contact us !
1.Feed Pellet machine(Flat Die Type, Ring Die Type)
2.Wood Pellet machine(Flat Die Type, Ring Die Type)
3.Feed Pellet production line
4.Biomass Pellet production line
5.Extrude Feed machine
6.Wood Crusher
7.Mixer
8.Shaker
Welcome place order online
