food grade filter for olive oil
- 400 Unit / Units per Month
- Shanghai Qingdao
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, food grade filter for olive oil | Type: | Other, food grade filter for olive oil |
Automatic Grade: | Automatic | Production Capacity: | 1500L/H | Place of Origin: | Henan, China |
Brand Name: | SW | Model Number: | SW-200A | Voltage: | 380/220V 50HZ |
Power(W): | 4.0KW | Dimension(L*W*H): | 1050 *490 *770(mm) | Weight: | 285KG |
Certification: | CE ISO9001:2008 SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
food grade filter for olive oil
♦ Introduction of food grade filter for olive oil:
1. Stainless steel used on the surface to reach the standard of food hygiene.
2. cold lower temperature keep in pressing technology.
3. Durable, for 1 year free after-sales service. Include replace the parts costs.
4. A double helix oil press equals two oil press, can obtain double benefit
5. High quality parts, stable oil pressing effect, saving the maintenance cost.
♦ Application for food grade filter for olive oil:
This type machine is mainly used for purifying used cooking oil,waste water and waster cooking oil.
It could be used for clearing the bio-diesel oil if use some smaller mesh filtering cloth.
It dewaters, deodorize, and eliminate impurities highly effectively. According cooking oil nature,
the used cooking oil includes high water, more acid matter, much impurity and offensive odor.
This machine adopts Plate Pressure system can separate the sundry goods and water from the oil quickly and effectively.
Then superadded two primaries filter and fine filter, it can remove impurities thoroughly.
Next, the machine adopts highly vacuum system to dewater and deodorize. In addition, this machine use stainless steel filter element, it resists the acid in oil strongly. So, the used cooking oil was recycled by machine,it will become limpidity, and fresh quality.
♦ Features of food grade filter for olive oil:
1. Highly effective vacuum dewater, deodorize, and eliminate impurities system
2. It adopts Plate pressure system with the strong ability to filter the impurity, which can filter the particles and impurities completely.
3. It has the back flush system, which can clear impurities automatically.
4. We uses stainless steel filter element which has a good function in anti-corrosive. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
5. The unique degas and dewater system: Using the 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gas from the oil quickly by the Multi-level water oil separation technology.
6. Hi-automatization operation, convenience, reliable, and safety
♦ Technical parameters of food grade filter for olive oil :
Model | SW–100A | SW–125A | SW–150A | SW–200A | SW–300A | SW–400A | SW–500A |
Rated flow (L/min) | ≥100 | ≥125 | ≥150 | ≥200 | ≥300 | ≥400 | ≥500 |
Filtering area ( Square meters ) | 2.0 | 2.6 | 3.2 | 3.8 | 5.2 | 6.8 | 8.2 |
Filter pressure range (MPa) | 0~0.49 | ||||||
Filter oil viscosity CSt | ≤33 | ||||||
Filter frame number (block ) | 13 | 16 | 19 | 25 | 19 | 24 | 29 |
Filter plate Number(piece ) | 14 | 17 | 20 | 26 | 20 | 25 | 30 |
Filter paper size ( mm ) | 295×295 | 410×410 | |||||
power(KW) | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 | 7.5 | 7.5 |
Dimension (mm)
| 940 *490 *770 | 1000 *490 *770 | 1050 *490 *770 | 1150 *490 *770 | 1200 *600 *900 | 1350 *600 *900 | 1480 *600 *900 |

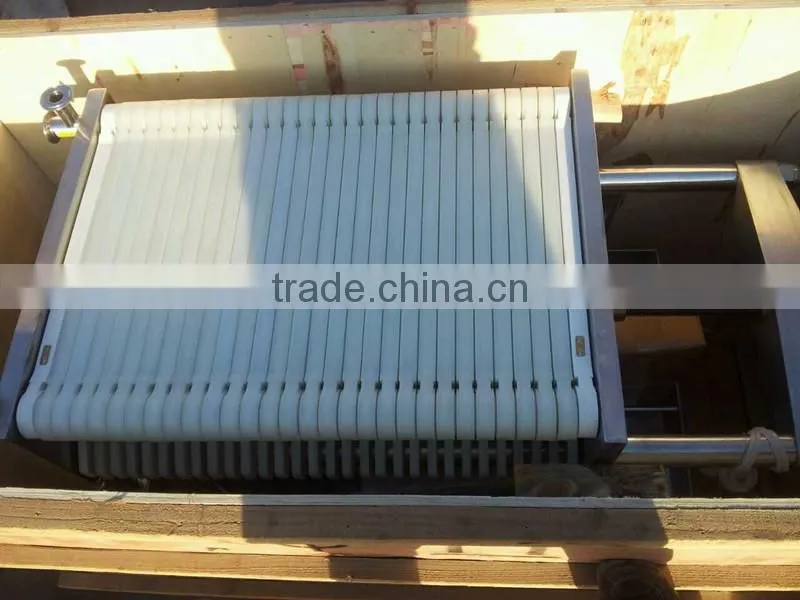

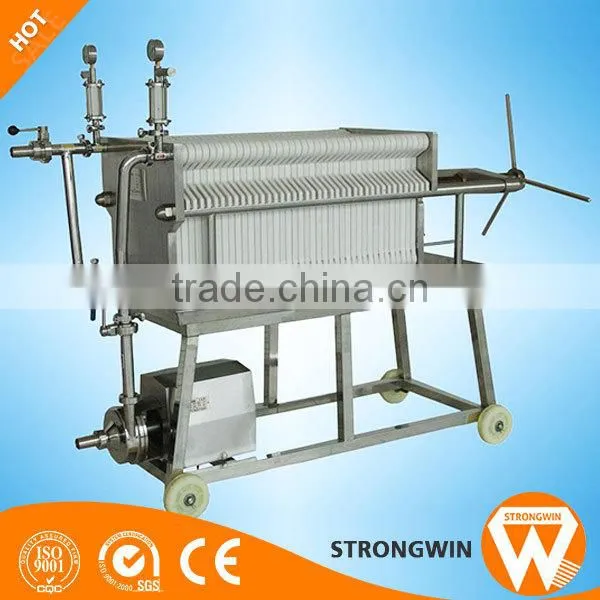

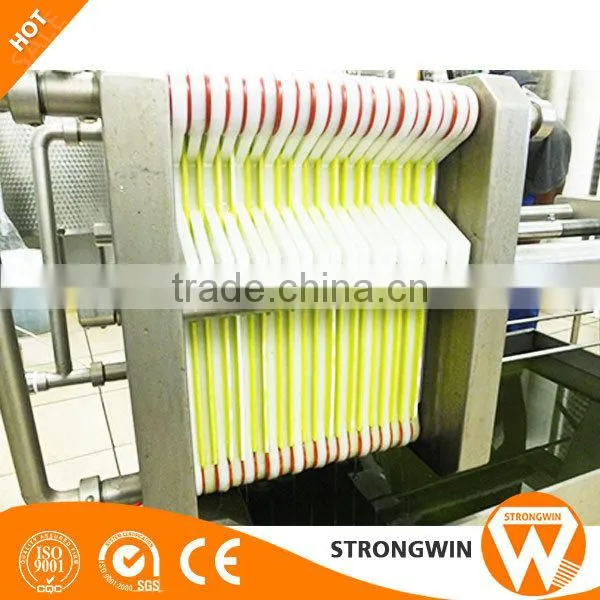

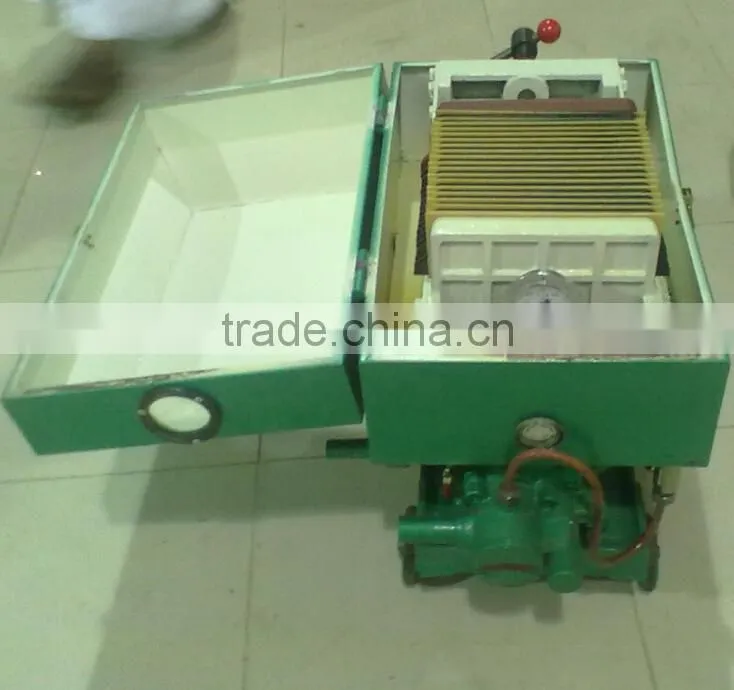

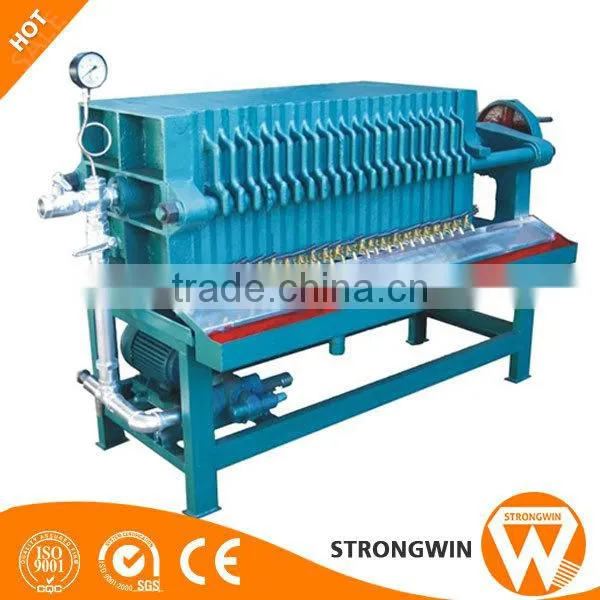

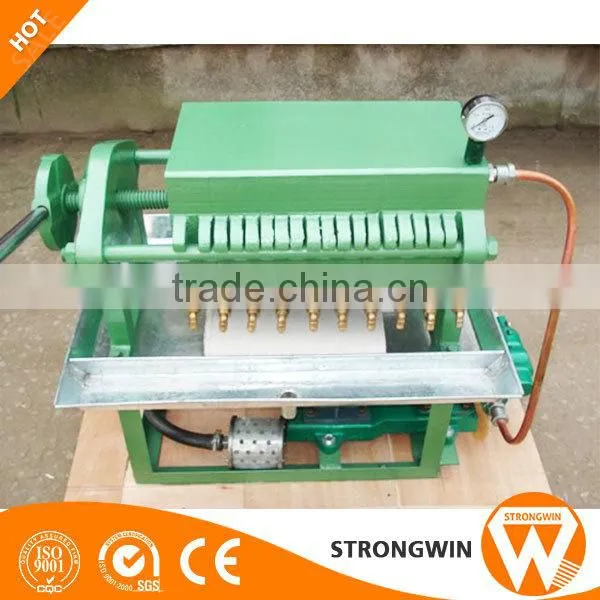

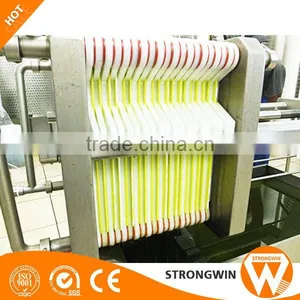

♦ Pictures display for food grade filter for olive oil :

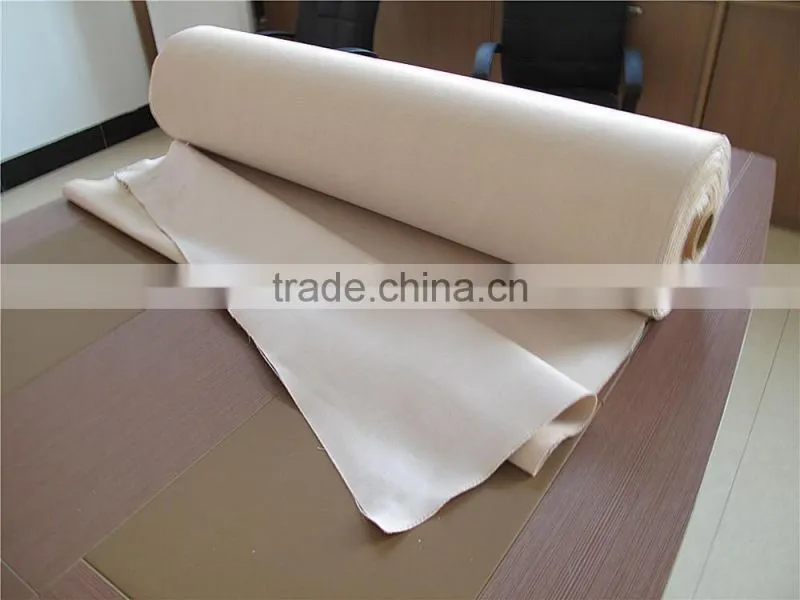

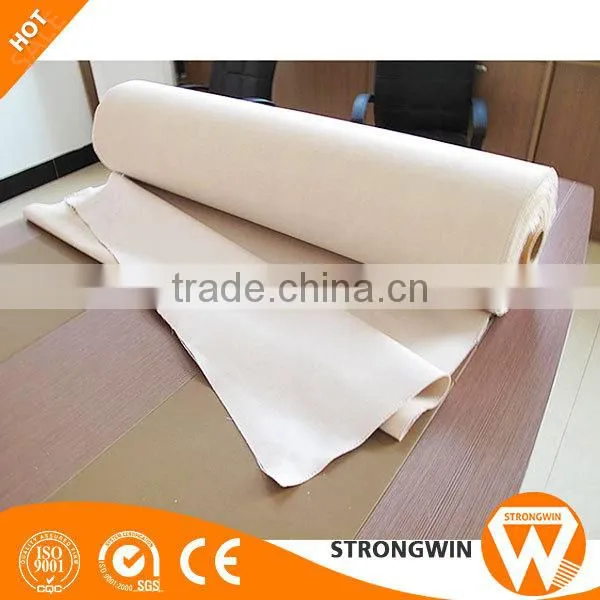

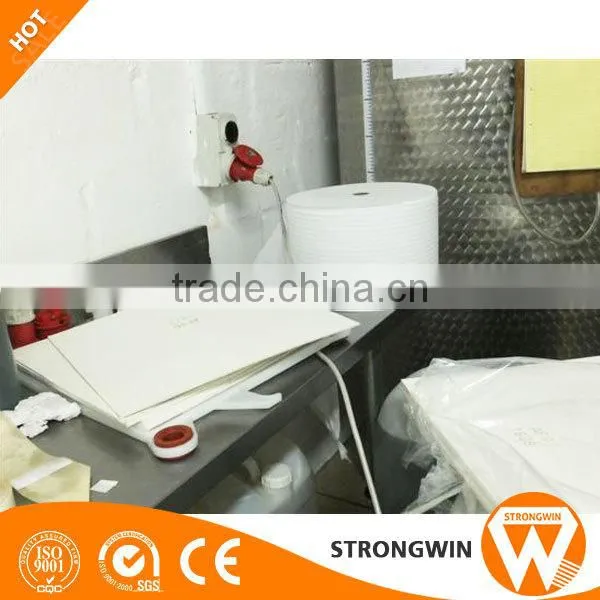

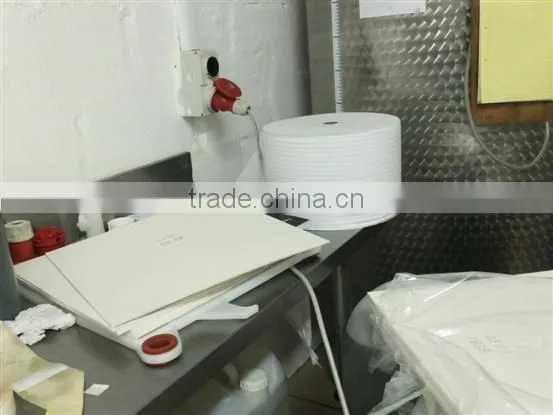

♦ Filter cloth and filter paper pictures:

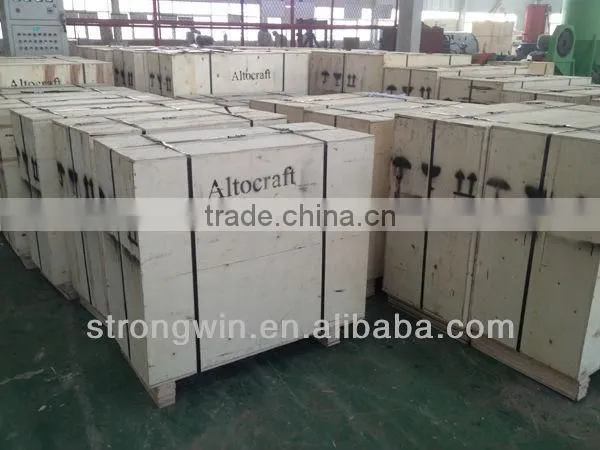

♦ Packing & Shipping :
Our company -- Henan Strongwin Machinery Equipment Co., Ltd.
has been in the field of oil press machine for many years,are professional manufacturer in the oil machinery production field in China, Our products durable quality and high oil yield have win a good reputation at home and abroad.
1 our machine can be divided into two kinds , one kind with oil filter and one kind without the oil filter .
2 we can provide the engine for the oil machine as customer needs
3 we can match a simple production line according to the customers' requirements
4 The machine can be used for many raw materials and can be 24 hours continuous running
1. What kind of oilseeds oil can be pressing and refining?
Crude soybean oil, palm oil, palm kernel oil, sunflower oil, canola oil(rapeseed oil) ,peanut oil, sesame oil, conttonseeds oil etc.
2. What’s the pre-press method?
Both hot and cold press are ok
3. Which type of oil pressing machine can you offer ?
Screw oil pressing machine and Hydraulic pressing machine, both can do
Fully-automatic, semi-automatic and manual type
1. Semi-automatic Screw oil press machine
2. Full-automatic Screw oil press machine
3. Hydraulic oil press machine( used for cold press)
4. Palm oil press machine
5. Mini cooking oil refining machine unit
6. Oil production line
Oil Filter ( line )
Oil pretreatment and prepressing equipment
Oil extraction equipment
oil refining equipment
If you are interested in our food grade filter for olive oil, please do not hesitate to contact us. We will offer instant reply and best price.
