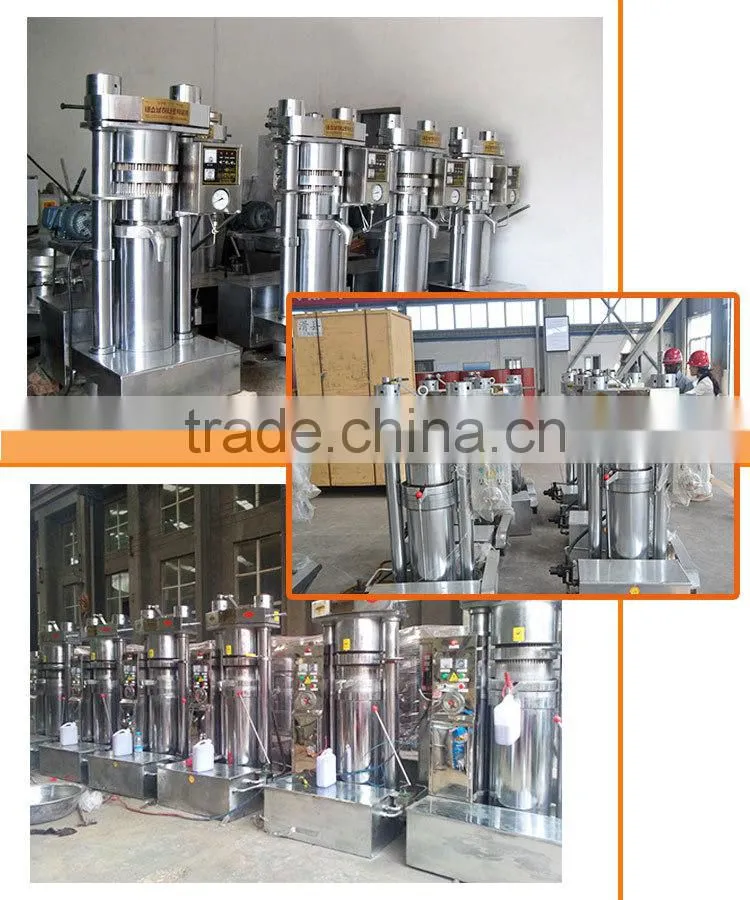

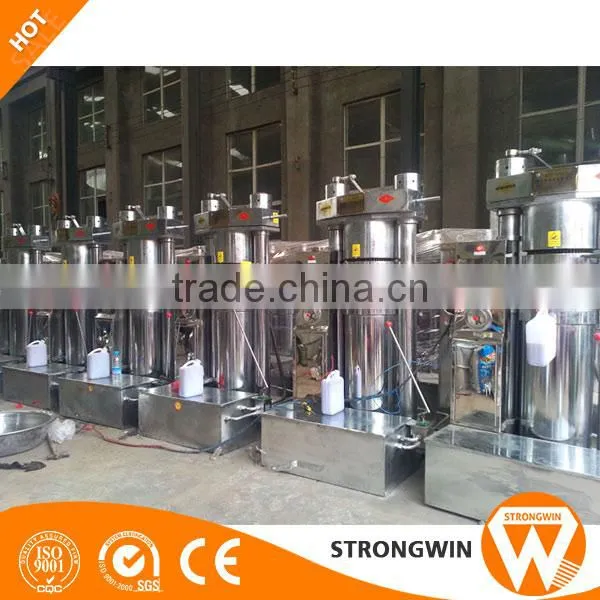

Hydraulic type low temperature cold press machine for cooking oil
1.More than 60 years cooking oil machine manufacturing experience
2.Have factory and professional engineers
3.Customer-tailor, Can Offer full set oil press machine, oil production line, according to different oilseeds
4.Products have export more than 30 Countries
5.Spare parts supply
6.Working video supply

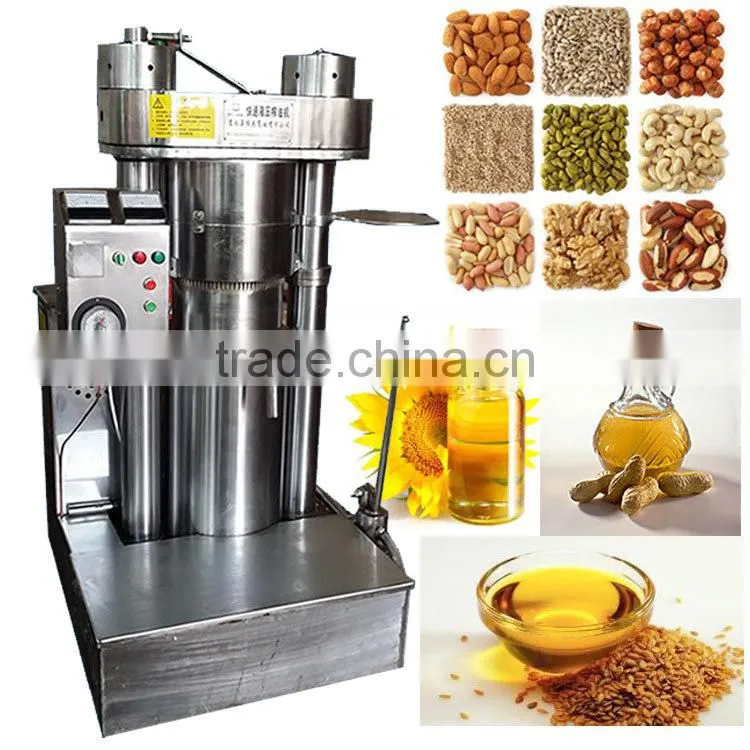

Hydraulic type low temperature cold press machine for cooking oil Machine is advanced seed oil machine, adopt cold press craft, maximization saved the oil’s nutrition, characterized by simple design, easy to operate, high production capacity and high oil output rate, Sell well at home and
abroad.
Main characteristics of Hydraulic type low temperature cold press machine for cooking oil :
1.Small size, covers small area, easy to learn, easy operation, no special requirement for the operator.
2.The machine is hydraulic oil press, with high pressure and high oil yield rate , the oil will be more clear.
3.The machine is fully automatic including the pre heating system and pressure system.
4.The main parts of the machine is made of alloy steel(customer also can choose stainless steel) with high quality, combine the high technology.
5.The machine is applicable to the fixed-point processing and flow operation, convenient movement.
Difference between mini hydraulic cold oil press machine and screw oil press machine:
1. The pressing way is different:

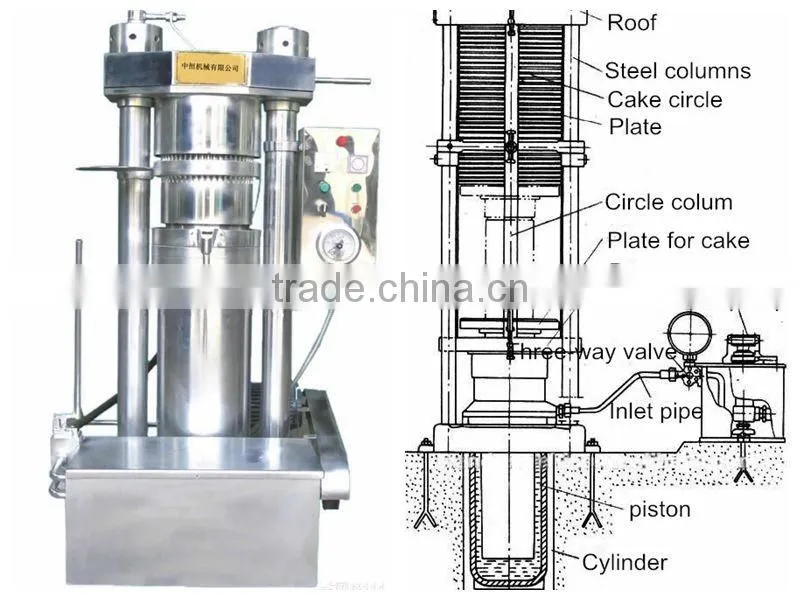

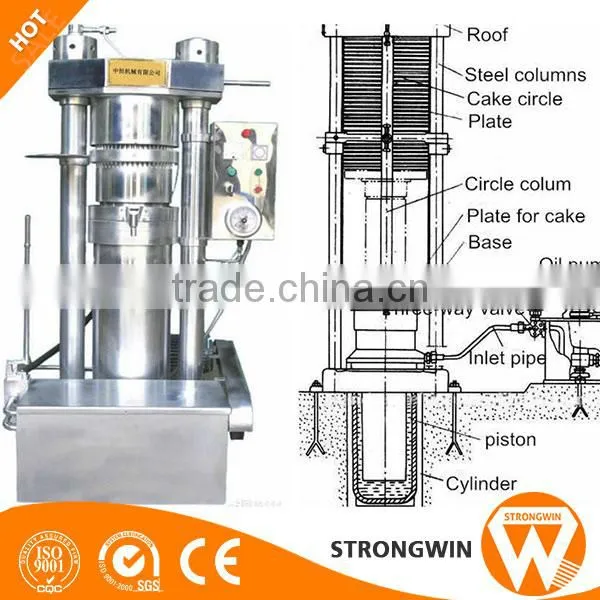

Hydraulic oil press makes use of hydrostatic pressure transmission principle. It takes liquid as the transmitter of
pressure and squeezes the oil seeds. It is a closed loop system composed of hydraulic system and oil press ontology,
including hydraulic power pack, controlling valve, motor, electrical cabinet, oil cylinder, charging basket and rack.
Screw oil press force feeding though screw shaft. Pressing rings roll and produce high
temperature and high pressure. Then oil will be squeezed out through the weep gap of the pressing rings. It includes
rack, electrical cabinet, screw shaft, pressing rings and cake mouth.
2. The quality of the oil is different, the price of the oil is different:
The method of hydraulic oil press is a pure physical one. During pressing process, it does not produce high
temperature and does not destroy the organic component of the seeds. Oil quality is better with less impurity. It is very suitable for high oil content seeds, such as sesame and walnut.
Due to screw oil press produces high temperature, it will destroy the organic component of the seeds. Besides, for high oil content seeds there will be greasy filth coming out from the pressing rings. The oil will have more impurity. As the oil is of high temperature, cooling process is necessary.
3. The power is different:
For hydraulic one, the motor power is about 1.5-3KW.
For screw one, the smallest one is about 5.5KW

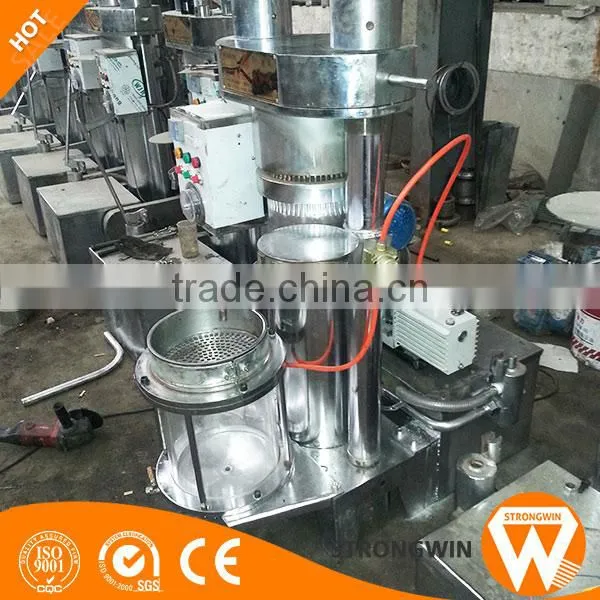

With filters

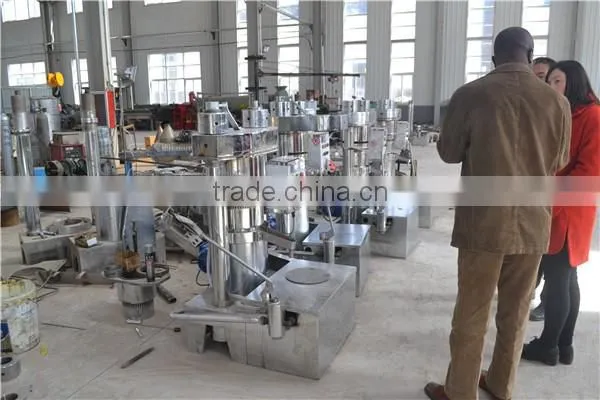

Customer Visit
| Small Hydraulic Oil Press Machine | |
| Model | 6YZ-230 |
| Dimensions | 1140*1090*1650(mm) |
| Weight | 900kg |
| kg of Pressure | 1900KN |
| Cake Surface Pressure | 43.5Mpa |
| Maximum Working Pressure | 55Mpa |
| Motor Power | 1.5KW |
| Heating Coil Temperature Control | 70 to 100 ° C |
| Each Feed | 7kg |
| Capacity | 40-50KG/H |
| Motor Model Power | Y901-4.1.5KW |
| Every Time Squeeze | 5-7 kg |
| Each Time | 8-12 minutes |
| Quality Guarantee | 1 year |
| Voltage | 380V /220V 50HZ three phase |
| Delivery Time | 10 working days after receipt of the deposit |
| Port of Loading | QingDao |
| Package | Standard export packing |
The oil press machine have been succeed export to: Thailand, Indonesia, Malaysia, Philippines, Vietnam, Laos, Myanmar, Cambodia, Nepal, South Korea, Japan, Russia, Nigeria, Bulgaria, Tanzania, Morocco, Egypt, Algeria, Sudan, Mali, Congo, Kenya, Ghana, south Africa, Swaziland, Greece, Israel, French, Italy, Saudi Arabia, Iran, Georgia, Uzbekistan, Canada, America, Haiti, Honduras, Malawi, Brazil, Chile, Argentina, Bolivia,Australia, New Zealand, Fiji, etc.
