Henan StrongWin Manufacturer cashew nut shell oil machine for cashew nut oil
1.High oil yield and good condition oil cake.
2.The wear parts such as the pressing rings, worms are made of the carbon steel which is under the process of heat pretreatment, making them very durable.
3.Safety and convenience.
4.Less occupied area
Working Video for automatic oil presses machine(test material is peanut)
Henan StrongWin Manufacturer cashew nut shell oil machine for cashew nut oil

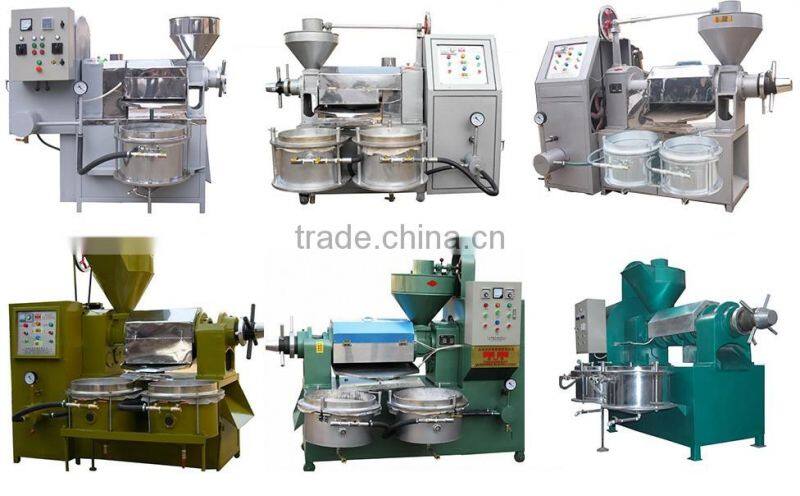

We offer Screw type automatic oil presses machine from 6YL-68A TO 6YL180A
Main parts of automatic oil presses machine
1. Screw oil press
2. Electrical element for heating chamber .
3. Vacuum filter for clean crude oil
4. Squeezing bolt
5. Heating ring.
Raw materials feeder : the raw materials can go to the oil press machine through the feeder .

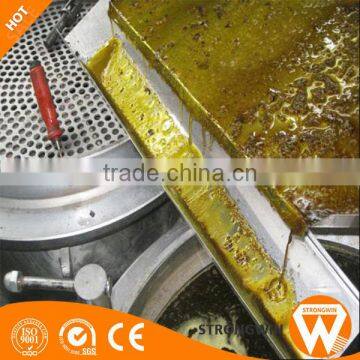

Vacuum filter : the crude oil go to the vacuum filter . In the filter , the physical impurities will be removed , which make the crude oil very clean and can be cooking directly .
Cake outlet : after the oil pressing section , the raw materials will be divided into two parts , one part is vegetable oil and the other part is raw materials cake . The cake can be used for animal feed .
Control panel : in the control panel , there are several buttons . The heating system can make the temperature of pressing environment about 120 degree , which can make perfect pressing section working environment . When the temperature is higher than 120 degree , the heating system will be cut off automatically . The design of heating system can guarantee the service life of the oil press machine .
Applied materials
Technical Parameters of 6YL series automatic oil presses machine
| Full-automatic Screw Oil Press Machine | ||||
| Model | Capacity(kg/h) | Power(kw) | Dimension(mm) | Weight(kg) |
| 6YL-68A | 50-60 | 5.5kw+1.5kw | 1600*890*1500 | 370 |
| 6YL-80A | 100 | 5.5kw+1.5kw | 1650*900*1600 | 680 |
| 6YL-95A | 150-200 | 7.5kw+1.5kw | 2000*990*1800 | 890 |
| 6YL-100A | 150-200 | 7.5kw+1.5kw | 2000*990*1750 | 900 |
| 6YL-120A | 250 | 11kw+1.5kw | 2250*1100*1800 | 960 |
| 6YL-130A | 400-500 | 18.5kw+1.5kw | 2500*1200*1900 | 1260 |
| 6YL-160A | 600-800 | 22kw+3kw | 2600*1220*1970 | 1580 |
| 6YL-180A | 650-830 | 30kw+1.5kw | 2600*1220*1970 | 1800 |
Detail Photos
Detail parts supply
The oil presses machine have been succeed export to: Thailand, Indonesia, Malaysia, South Korea, Japan, Russia, Nigeria, Tanzania, Morocco, Egypt, Algeria, Congo, Kenya, south Africa, Swaziland, Greece, French, Italy, Saudi Arabia, Iran, Georgia, Uzbekistan,Canada, America, Haiti, Honduras, Brazil, Chile, Bolivia,Australia, New Zealand, Fiji, etc.
Trade terms: FOB, CIF, EXW
Payment terms: T/T, L/C, Western Union, Trade Assurance
Payment Condition: 30% deposit in advance, 70% balance after delivery
Packing: 20GP, 40HQ Container, wooden case for single press machine
Shipping: By sea and By Train
Welcome place order online
Looking forward your inquiry for more information
