Full automatic good quality Copra Oil Press Machine with best service
1.High oil yield and good condition oil cake.
2.The wear parts such as the pressing rings, worms are made of the carbon steel which is under the process of heat pretreatment, making them very durable.
3.Safety and convenience.
4.Less occupied area
Before pressing, the Coconut need to dry to Copra.

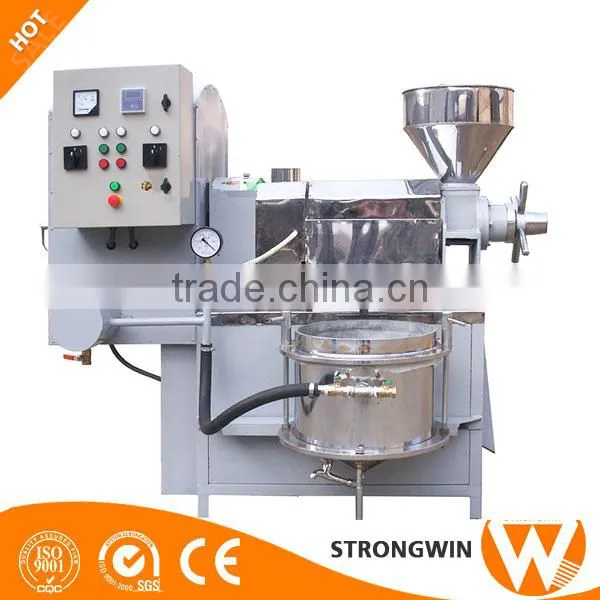

Full automatic good quality Coconut Oil Press Machine with best service
1.The automatic screw oil press is composed of vacuum filtration system, automatic heating device and controlling system.
2. Some parts of the oil press will be preheated before pressing, such as the press chamber, press screw and press ring.
3. During pressing, the press will filter the oil in due time.
4. This machine is matched with one controlling cabinet box to control all working process of the machines.
Raw materials feeder : the raw materials can go to the oil press machine through the feeder .
Vacuum filter : the crude oil go to the vacuum filter . In the filter , the physical impurities will be removed , which make the crude oil very clean and can be cooking directly .
Cake outlet : after the oil pressing section , the raw materials will be divided into two parts , one part is vegetable oil and the other part is raw materials cake . The cake can be used for animal feed .
Control panel : in the control panel , there are several buttons . The heating system can make the temperature of pressing environment about 120 degree , which can make perfect pressing section working environment . When the temperature is higher than 120 degree , the heating system will be cut off automatically . The design of heating system can guarantee the service life of the oil press machine .
Technical Parameters of Coconut oil press machine
| Full-automatic Screw Oil Press Machine | ||||
| Model | Capacity(kg/h) | Power(kw) | Dimension(mm) | Weight(kg) |
| 6YL-68A | 50-60 | 5.5kw+1.5kw | 1600*890*1500 | 370 |
| 6YL-80A | 100 | 5.5kw+1.5kw | 1650*900*1600 | 680 |
| 6YL-95A | 150-200 | 7.5kw+1.5kw | 2000*990*1800 | 890 |
| 6YL-100A | 150-200 | 7.5kw+1.5kw | 2000*990*1750 | 900 |
| 6YL-120A | 250 | 11kw+1.5kw | 2250*1100*1800 | 960 |
| 6YL-130A | 400-500 | 18.5kw+1.5kw | 2500*1200*1900 | 1260 |
| 6YL-160A | 600-800 | 22kw+3kw | 2600*1220*1970 | 1580 |
| 6YL-180A | 650-830 | 30kw+1.5kw | 2600*1220*1970 | 1800 |
Detail Photos
The oil press machine have been succeed export to: Thailand, Indonesia, Malaysia, South Korea, Japan, Russia, Nigeria, Tanzania, Morocco, Egypt, Algeria, Congo, Kenya, south Africa, Swaziland, Greece, French, Italy, Saudi Arabia, Iran, Georgia, Uzbekistan,Canada, America, Haiti, Honduras, Brazil, Chile, Bolivia,Australia, New Zealand, Fiji, etc.
Trade terms: FOB, CIF, EXW
Payment terms: T/T, L/C, Western Union, Trade Assurance
Payment Condition: 30% deposit in advance, 70% balance after delivery
Packing: 20GP, 40HQ Container, wooden case for single press machine
Shipping: By sea and By Train
