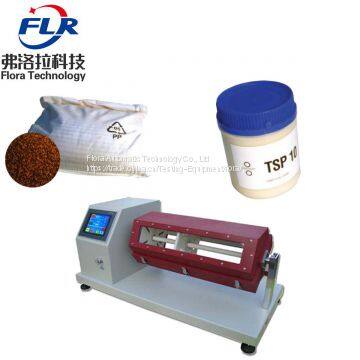

Nickel Release Wear Tester Coating Rotating Abrasion Tester
US$ 5000 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Flora
Place of Origin:
China
Model Number:
FLR-Y16
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin/guangzhou/shenzhen/shanghai
Delivery Detail:
3 days
Related Products
-
Nickel Release Wear Test Machine Coating Rotating Abrasion Test MachineUS$ 5000 - 8000MOQ: 1 Set -
Metal Glasses Nickel Release TesterUS$ 5000 - 8000MOQ: 1 Set
-
Jewelry Nickel Release DetectorUS$ 5000 - 8000MOQ: 1 Set
-
Glasses Falling Ball Impact Testing MachineUS$ 1500 - 3000MOQ: 1 Set
-
Safety Glasses Falling Ball Impact Testing MachineUS$ 1500 - 3000MOQ: 1 Set
Brand Name
Flora
Place of Origin
China
Model Number
FLR-Y16
Power
Other, Nickel release wear tester
Usage
Other, Nickel release wear tester
Nickel Release Wear Tester Coating Rotating Abrasion Tester
1. Annex: double-fixed bracket sample linked to a rack plastic tie-in silicone rubber pad.
2. power supply: AC220V.The European Union formally passed the latest version of the nickel release test (EN12472: 2005) in 2006 to replace the old standard EN12472: 1998. All metal products such as ornaments, eyeglasses and watches must pass the test to be sold in Europe. As of March 1, 2013, the old version of the European standard EN 1811: 1998 + A1: 2008 is replaced by the new standard EN 1811: 2011.
Instrument definition: nickel release tester, also known as rotating wear meter, is a special metal used to polish the surface coating coating to achieve the use of two years of wear a degree of auxiliary equipment.
Purpose of the instrument:
The main purpose of the instrument is to respond to the latest European nickel release standards mentioned in the nickel release of auxiliary testing.
Test method: simulated metal products and human cortex contact two years of wear and tear, the artificial sweat soaked in certain conditions 7 days, with the atomic absorption spectrometer quantitative analysis of nickel in the soaking liquid content, limited to 0.5 micrograms / square centimeter / week .
Product Description
Nickel Release Abrasion Tester Specimen for EN12472: 2005 Test Method for Determining Nickel Release from Coated Coatings Simulation Wear and Corrosion Test Methods Standard and ISO 12870: 2004 Ophthalmic Optics - Spectacle Frames - Requirements and Test Methods Designed to meet the above requirements Two standard requirements.
Specifications:
Specifications:
| the controller | advanced touch control |
| the rotation speed | 30 ± 2 r / min |
| carrying capacity | high-performance motor, the maximum carrying capacity of 10kg, to provide a stable speed. |
| time setting | you can set the forward and reverse time |
| reminder | Task completion timing reminder function |
| Dimensions | 72.0 cm (W)*38.0 cm (D)*40.0 cm (H) |
| Weight | 20 kg |

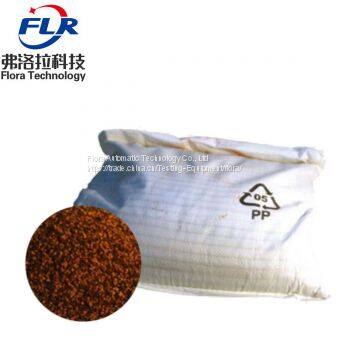

| other configurations | abrasive (10kg) grinding plastic (1kg) |
1. Annex: double-fixed bracket sample linked to a rack plastic tie-in silicone rubber pad.
2. power supply: AC220V.The European Union formally passed the latest version of the nickel release test (EN12472: 2005) in 2006 to replace the old standard EN12472: 1998. All metal products such as ornaments, eyeglasses and watches must pass the test to be sold in Europe. As of March 1, 2013, the old version of the European standard EN 1811: 1998 + A1: 2008 is replaced by the new standard EN 1811: 2011.
Instrument definition: nickel release tester, also known as rotating wear meter, is a special metal used to polish the surface coating coating to achieve the use of two years of wear a degree of auxiliary equipment.
Purpose of the instrument:
The main purpose of the instrument is to respond to the latest European nickel release standards mentioned in the nickel release of auxiliary testing.
Test method: simulated metal products and human cortex contact two years of wear and tear, the artificial sweat soaked in certain conditions 7 days, with the atomic absorption spectrometer quantitative analysis of nickel in the soaking liquid content, limited to 0.5 micrograms / square centimeter / week .
Applicable standards: EN12472: 2005, EN 1811: 2011, GB / T28485-2012, ISO24348-2007.
Test range: all accessories, glasses, watches and other metal products
