Home > Agriculture & Food > Protected Horticulture > Plastic Greenhouse > Automatic Venlo Greenhouse Rack and Pinion Shading System

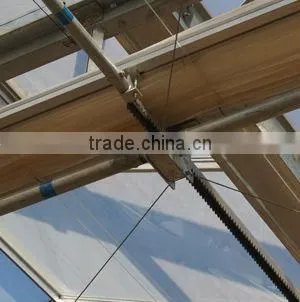

Automatic Venlo Greenhouse Rack and Pinion Shading System

Name: Automatic Venlo Greenhouse Rack and Pinion Shading System
Brand: Maxpower
SKU: 139358689
Availability: InStock

Automatic Venlo Greenhouse Rack and Pinion Shading System thumbnail-1

Automatic Venlo Greenhouse Rack and Pinion Shading System photo-1

US$ 10 - 200 MOQ: 1 Set

Key Specifications

Get Latest Price

Size:

Large

Type:

Multi-Span Agricultural Greenhouses

Cover Material:

Other, galvanized steel

Contact Supplier Request Quote Chat Now

Chongqing Maxpower Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Size Large

Type Multi-Span Agricultural Greenhouses

Cover Material Other, galvanized steel

Model Number MP-series

Place of Origin Chongqing, China

Brand Name Maxpower

Rack & Pinion Shading System for greenhouse

Equipment for greenhouse from Maxpower

1, Product instruction

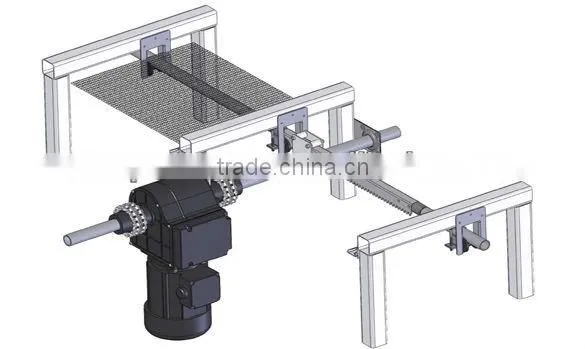

The Rack & Pinion Shading System for greenhouse use rack and pinion mechanism to slow down the rotary motion of the motor into the linear motion of the rack, finally expand and collapse the curtain.This system can transmitt smoothly with high accuracy .

2, Components and Application

Index	Name	Specifications	Unit	Application
1	Gear Motor for shading System		set	Provide power
2	Pinion for B-type shading System		pc	Used for Rack & Pinion Drive Mechanism
3	Racks for Screen System	L=3965mm T=2.75mm L=3965mm T=3mm L=4965mm T=3mm	pc	Installed with Pinions for Screen System
4	Welding Joints	1" 5/4"	pc	Used with A-type Pinion to connect drive shaft with the pinion
5	Spring Clamp for A-type Pinion		pc	Used with A-type Pinion to be placed between the Shaft and Welding Joint as antiskid.
6	Rack & Handspike Connector	Φ32 & Φ27	pc	Used for Rack & Pinion Screen System to connect the Rack with the Handspike
7	Handspike Drive Clamp	Φ32mm & Φ27mm	pc	Used for Rack & Pinion Screen System, to connect the Handspike with the Drive Edge Profile
8	Driving Edge Profile	L=6m	meter	Used for driving the shade screens
9	Profile connectors		pc	For connecting driving profiles
10	Support Roller		pc	For use in Rack & Pinion Screen System to support handspike
11	Polyester Wire	Φ2.0-2.5, Length: 2000m	Roll	For holding shade curtains
12	Large Localize and Guide Clamp		pc	To be used with drive edge profile and screen holding wire
13	Small Localize and Guide Clamp		pc	To use with the driving edge profile and screen holding wire
14	Screen hook for inner shading		pc	For smooth running of the shade screens
15	Gear Knuckle Bearing		pc	For holding the motor
16	Weight		pc	For smooth running of the shade net
17	T head bolts		set	For fixing the handspike drive clamp
